User Manual for JBL AW295 High Power 2-Way All-Weather Loudspeaker with 12" LF and Rotatable Horn Click to enlarge the picture
Contents of the user manual for the JBL AW295 High Power 2-Way All-Weather
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL AW295 High Power 2-Way All-Weather contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

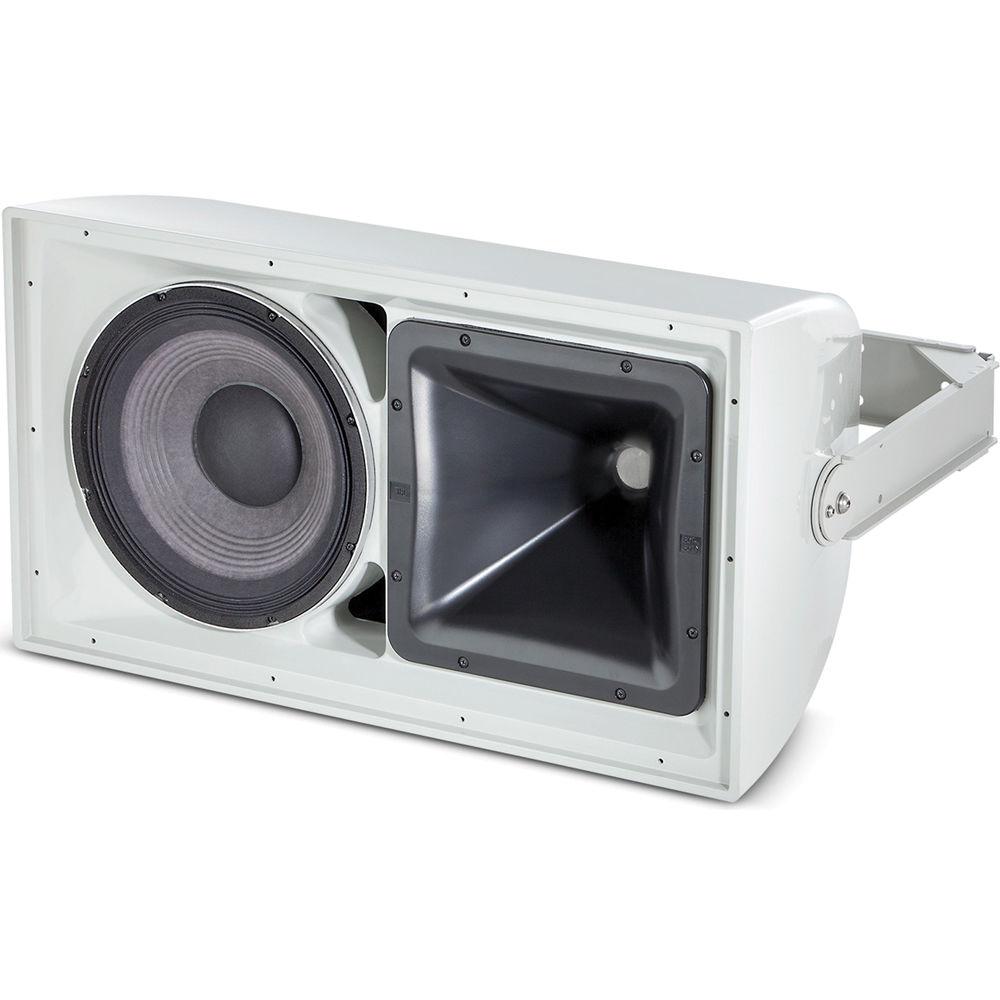

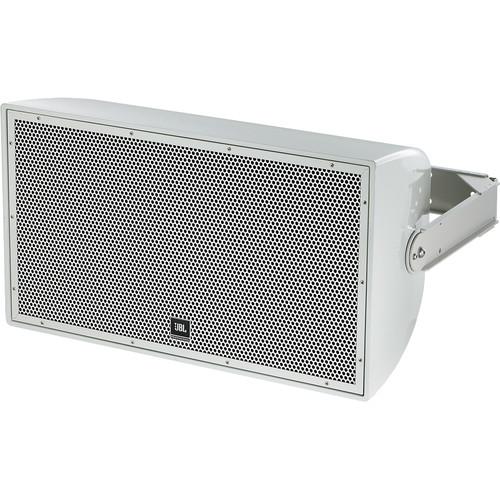

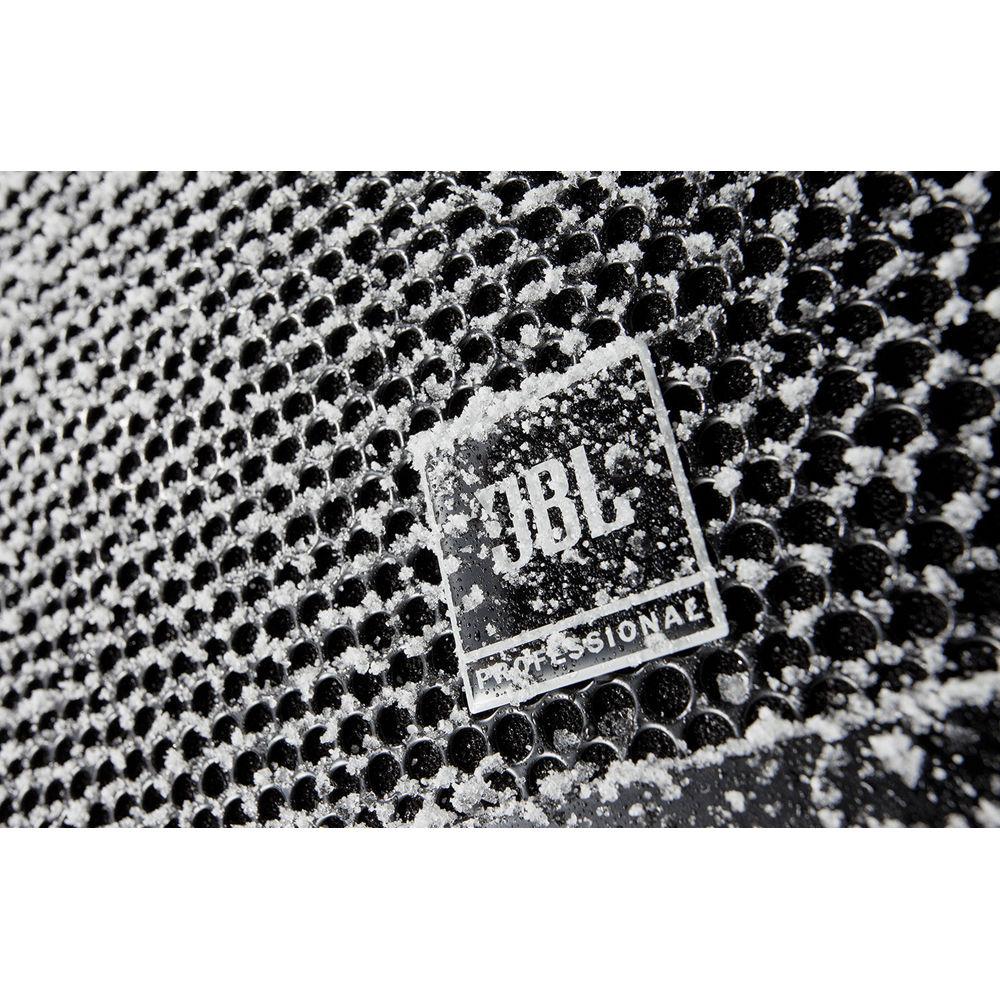

Product description The gray AW295 High Power 2-Way All-Weather Loudspeaker with 12" LF and Rotatable Horn from JBL is designed to serve as a high power, lightweight, 2-way, full-range loudspeaker system. The system is comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver and a 2432H high frequency 1.5" exit voice-coil compression driver. The large format progressive transition wave-guide provides 90° x 50° coverage and the speaker is equipped with a 400W transformer for 70/100V applications. The enclosure is constructed of multi-layer glass composite and braced to maximize low-frequency performance. The 16-gauge stainless steel grille is backed with open cell foam and stainless steel mesh for protection against the environment. - Weather-resistant fiberglass enclosure
- Can be used in vertical or horizontal position
- U-Bracket included for mounting
In the Box JBL AW295 High Power 2-Way All-Weather Loudspeaker with 12" LF and Rotatable Horn (Gray) U-Bracket Limited 5-Year Warranty Brochure PDF 1.1mbtqvxqxscxretsfyrbbtztqwebzazvbaywx Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AW295 High Power 2-Way All-Weather Loudspeaker with 12" LF and Rotatable Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AW295 Specs | Driver | Low Frequency Driver: JBL 2262H 12" / 300 mm Differential Drive driver with 3" / 75 mm dual voice coil
High Frequency Driver: JBL 2432H 1.5" / 38 mm exit compression driver with 3" / 75 mm voice coil | | Crossover | 1.3 kHz | | Frequency Range | 43 Hz - 20 kHz | | Frequency Response ± 3dB | 53 Hz - 18 kHz | | Coverage Pattern | 90° x 50° | | Directivity Factor | 12.6 | | Directivity Index | 11 dB | | Impedance | 8 Ohms | | Long-Term System Power Rating | 500 W (2000 W peak), 100 hours | | Sensitivity | 98 dB SPL | | Maximum Sound Pressure Level (SPL) | 126 dB continuous average (132 dB peak) | | Transformer Taps | 70 V: 400 W, 200 W, 100 W
100 V: 400 W, 200 W | | Connectors | Barrier strip terminals | | Enclosure Material | Fiberglass | | Dimensions (HxWxD) | 16.1 x 28.8 x 17.8" / 409.0 x 732.0 x 452.0 mm (measured when in horizontal orientation) | | Weight | 55.6 lb / 25.2 kg | | | | Package Weight | 71.4 lb | | Box Dimensions (LxWxH) | 32.0 x 20.0 x 19.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
