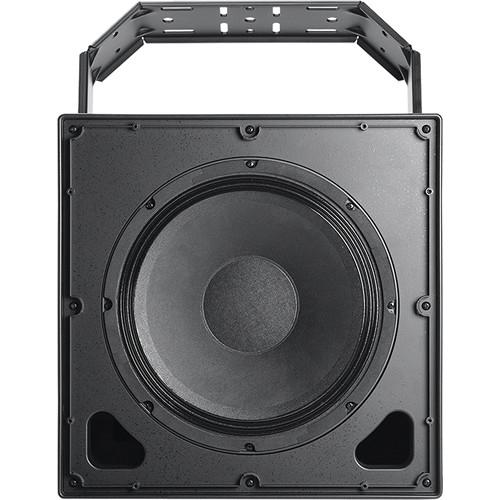

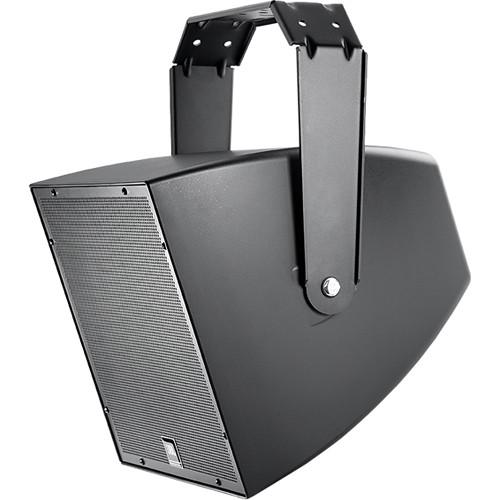

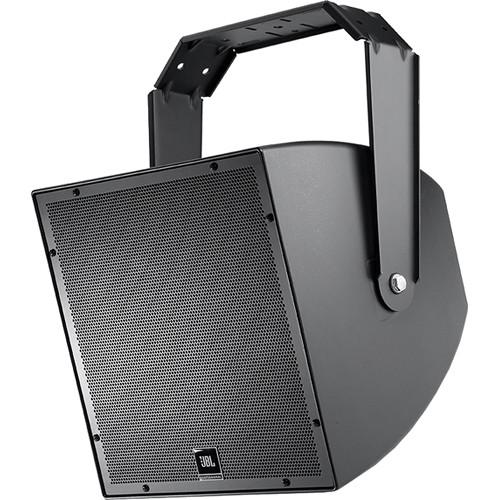

Product description The black AWC129 All-Weather 2-Way Coaxial Loudspeaker with 12" LF from JBL is a weather-resistant, full-range loudspeaker system ideal for speech and music. The speaker is comprised of a high-power coaxial 12" low frequency driver and a 1" high frequency compression driver and offers consistent 90° coverage on a broadband basis. The low frequency cone is kevlar-reinforced and features a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver has a high temperature polymer diaphragm and fluid-cooling capabilities for high output levels with low distortion. The system is equipped with a 200W 70V/100V multi-tap transformer with connection made through an outdoor-rated terminal in a recessed terminal cup.
The paintable enclosure is constructed of ABS and fiberglass and is braced to maximize low-frequency performance. The corrosion-resistant, zinc-rich, powder coated steel grille is backed with open cell foam and high thread-count mesh, providing protection in harsh environments. The system is rated IP-56, per IEC529, when installed at a minimum 5° down-tilt. - Consistent 90° x 90° broadband pattern control
- High-slope crossover network for constant coverage and natural mid-range
- Passive crossover network
UPC: 050036904209 In the Box JBL AWC129 All-Weather 2-Way Coaxial Loudspeaker with 12" LF (Black) U-Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AWC129 All-Weather 2-Way Coaxial Loudspeaker with 12" LF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AWC129 Specs | Driver | Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 3" (75 mm) voice coil
High Frequency Driver: 1" (25 mm) diaphragm with voice coil diameter | | Crossover | 1.5 kHz | | Frequency Range | 55 Hz - 20 kHz | | Frequency Response ± 3dB | 80 Hz - 20 kHz | | Coverage Pattern | 90° x 90° | | Directivity Factor | 10.1 (1 k - 16 kHz) | | Directivity Index | 9.5 dB (1 k - 16 kHz) | | Impedance | 8 ohms | | Long-Term System Power Rating | 400 W (1600 W peak) 2 hours
250 W (1000 W peak) 100 hours | | Sensitivity | 96 dB (average 80 Hz - 20 kHz) | | Maximum Sound Pressure Level (SPL) | 122 dB | | Transformer Taps | 70 V: 200 W, 100 W, 50 W, 25 W
100 V: 200 W, 100 W, 50 W | | Connectors | Barrier strip terminals | | Enclosure Material | ABS with glass | | Dimensions (HxWxD) | Cabinet: 15.8 x 15.8 x 17.5" / 402.0 x 402.0 x 445.0 mm
Depth with gland nut: 18.5" / 470.0 mm
Depth with bracket: 21.4" / 542.0 mm | | Weight | 51.5 lb / 23.4 kg | | | | Package Weight | 46.55 lb | | Box Dimensions (LxWxH) | 22.2 x 20.9 x 20.5" |
