User Manual for JBL AWC159 15" All-Weather Compact 2-Way Coaxial Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL AWC159 15" All-Weather Compact 2-Way
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL AWC159 15" All-Weather Compact 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

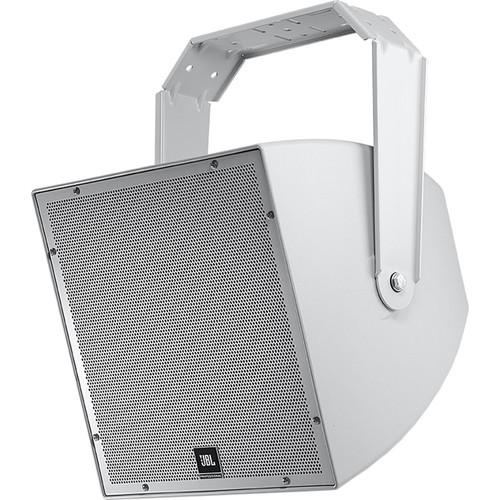

Product description The gray AWC159 15" All-Weather Compact 2-Way Coaxial Loudspeaker from JBL is a weather-resistant, full-range loudspeaker system that is suitable for speech and music. It can be used in various environments such as sports facilities, racetracks, stadiums, themed entertainment venues, music/paging systems, and other outdoor or indoor venue types.Featuring an IP56 weather-resistant rating, the AWC159 speaker has a 90 x 90° broadband pattern control. Built with a 15" woofer with Kevlar-reinforced cone with a 3" voice coil and a 1.5" diaphragm compression driver with a high-temperature polymer diaphragm, the speaker delivers a 52 Hz to 20 kHz frequency response. Power handling is 500W at 8 Ohms or 300W at 70/100V with a multi-tap, built-in transformer.Furthermore, the speaker is made of an ABS material with a glass enclosure that is heavily braced for durability. The speaker is equipped with two integrated M10 (course-thread) points for the included U-bracket. A secondary safety M6 attachment point is located on the back panel. - Weather-resistant IP56 rating
- Consistent 90 x 90° broadband pattern control
- Components:
15" woofer with Kevlar-reinforced cone and 3" voice coil
1.5" diaphragm compression driver with patented design and high-temperature polymer diaphragm - Designed for speech clarity, with extended frequency response for music
- High-slope crossover network for constant coverage and smooth, natural midrange
- 500W power handling (average continuous pink noise) with high sensitivity provides high-SPL capability
- High-power passive crossover network
- 52 Hz to 20 kHz frequency response
- 300W, 70/100V multi-tap, built-in transformer or direct 8 Ohms low-impedance
UPC: 050036905299 In the Box JBL AWC159 15" All-Weather Compact 2-Way Coaxial Loudspeaker (Gray) U-Bracket Limited 5-Year Warranty Brochure PDF 815.2kbcqtaqeawzzsfscatudyutfwwzrwyaa Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AWC159 15" All-Weather Compact 2-Way Coaxial Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AWC159 Specs | Frequency Range | -10 dB: 52 Hz to 20 kHz
