User Manual for JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker with 8" LF Click to enlarge the picture
Contents of the user manual for the JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

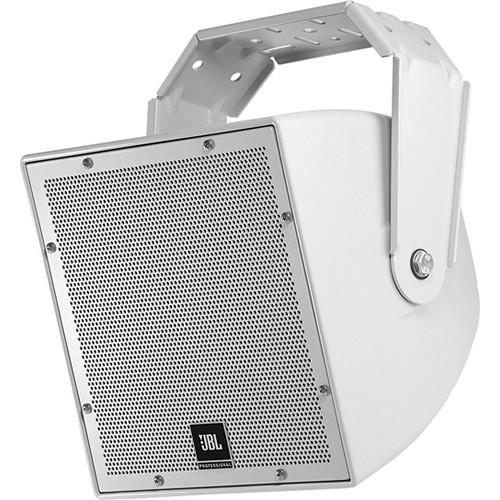

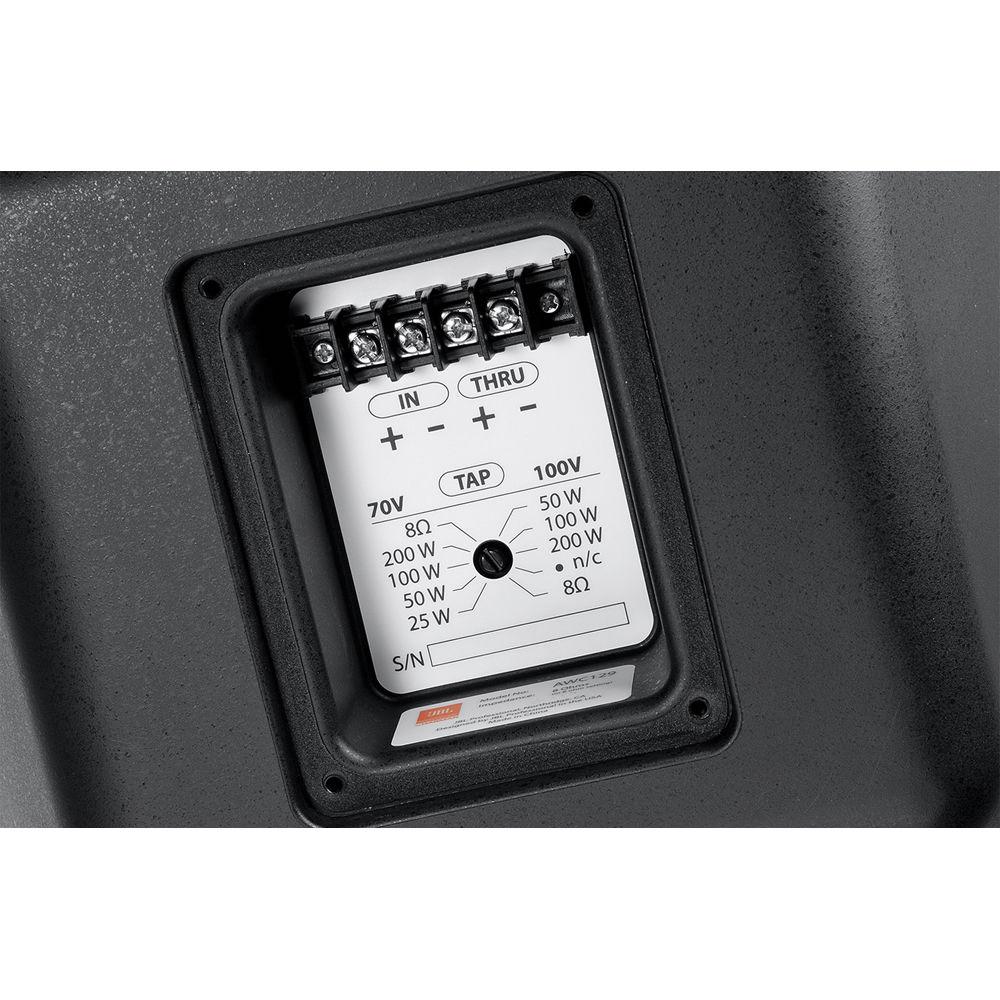

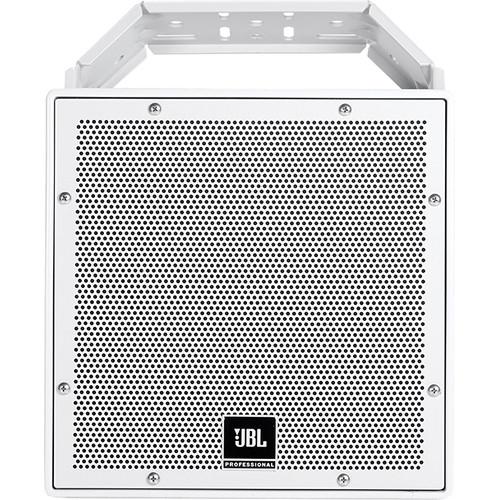

Product description The gray AWC82 All-Weather 2-Way Coaxial Loudspeaker with 8" LF from JBL is a weather-resistant, full-range loudspeaker system ideal for speech and music-fill in large areas. The speaker is comprised of a high-power coaxial 8" low frequency driver and a 1" high frequency compression driver and offers a consistent 120° broadband pattern control. The co-axial design utilizes a tapered pole-piece design and transitions to the cone ofthe low frequency driver as a large diameter pattern control horn for the high frequencies, eliminating high-frequency beaming and extending pattern control to the lowest possible frequencies. The low frequency cone is kevlar-reinforced and features a well-damped surround for smooth frequency response, a high temperature voice coil, and a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver has a high temperature polymer diaphragm and fluid-cooling capabilities for high output levels with low distortion. The system is equipped with a 200W 70V/100V multi-tap transformer with connection made through an outdoor-rated terminal in a recessed terminal cup.
The paintable enclosure is constructed of ABS and fiberglass and is braced to maximize low-frequency performance. The corrosion-resistant, zinc-rich, powder-coated steel grille is backed with open cell foam and high thread-count mesh, providing protection in harsh environments. The system is rated IP-56, per IEC529, when installed at a minimum 5° down-tilt. - Consistent 120° x 120° broadband pattern control
- High-slope crossover network for constant coverage and natural mid-range
- Passive crossover network
UPC: 050036904179 In the Box JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker with 8" LF (Gray) U-Bracket Brochure PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AWC82 All-Weather 2-Way Coaxial Loudspeaker with 8" LF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AWC82 Specs | Driver | Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 2" (50 mm) voice coil
High Frequency Driver: 1" (25 mm) diaphragm and voice coil diameter | | Crossover | 1.8 kHz | | Frequency Range | 80 Hz - 20 kHz | | Frequency Response ± 3dB | 100 Hz - 20 kHz | | Coverage Pattern | 120° x 120° | | Directivity Factor | 8.1 (1 k - 16 kHz) | | Directivity Index | 8.4 dB (1 k - 16 kHz) | | Impedance | 8 ohms | | Long-Term System Power Rating | 250 W, 2 hours
200 W, 100 hours | | Sensitivity | 94 dB (average 100 Hz - 20 kHz) | | Maximum Sound Pressure Level (SPL) | 118 dB | | Transformer Taps | 70 V: 200 W, 100 W, 50 W, 25 W
100 V: 200 W, 100 W, 50 W | | Connectors | Barrier strip terminals | | Enclosure Material | ABS with glass | | Dimensions (HxWxD) | Cabinet: 11.8 x 11.8 x 12.0" / 300.0 x 300.0 x 305.0 mm
Depth with gland nut: 13.0" / 331.0 mm
Including bracket extending to back: 14.2" / 359.0 mm | | Weight | 21.6 lb / 9.8 kg With U-bracket: 25.6 lb / 11.6 kg | | | | Package Weight | 29.5 lb | | Box Dimensions (LxWxH) | 16.7 x 16.0 x 15.8" |
