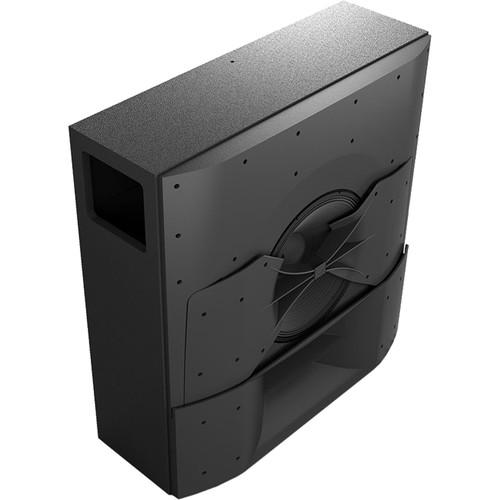

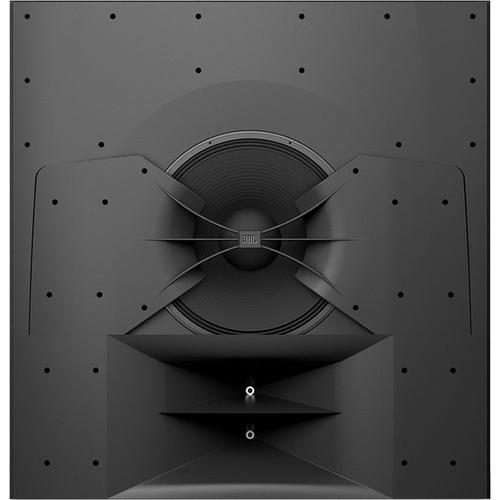

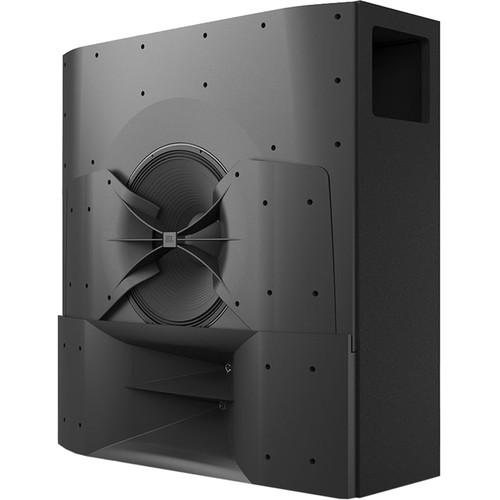

User Manual for JBL C221 - Two-Way ScreenArray Cinema Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL C221 - Two-Way ScreenArray Cinema
- Product category: In-Wall Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL In-Wall Speakers
 |
User manual for the JBL C221 - Two-Way ScreenArray Cinema contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL C221 is a two-way ScreenArray cinema loudspeaker designed for small to medium-sized multiplexes requiring maximum output, wide coverage, and low distortion. The loudspeaker features a patent-pending Dual Dissimilar Arraying and Acoustic Aperture Technology, which provides remarkably uniform coverage and smooth, accurate sound reproduction. With a depth of only 12", the C221 fits into venues with space constraints. -
- Remarkable two-way ScreenArray design for maximum output, improved coverage, and minimum distortion
- Patent-pending Dual Dissimilar Arraying Technology creates coverage pattern for raked seating areas, and extends HF output power and pattern control a full octave in both spectrum extremes
- Patent-pending Acoustic Aperture Technology delivers improved drivers for lower distortion and higher sensitivity, plus enhanced midrange performance for a smooth crossover transition
- 12" footprint saves space without sacrificing performance
- Designed for small- and medium-sized cinemas with a maximum throw distance of 59'
In the Box JBL C221 - Two-Way ScreenArray Cinema Loudspeaker Limited 2-Year Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL C221 - Two-Way ScreenArray Cinema Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL C221 Specs | | | Frequency Response (-10 dB) | 35 Hz to 20 kHz | | Power Rating | AES: 350 W | | Sensitivity | Free Field: 101 dB | | SPL | Maximum Continuous: 126 dB | | Horizontal Coverage Angle | 100° (-6 dB) | | Vertical Coverage Angle | 60° (-6 dB) | | Nominal Impedance | 8 Ohms | | Input Connectors | Screw terminal barrier strip | | Maximum Throw Distance | 59.0' / 18.0 m | | | | Drivers | Low: 1 x M115-8A
High: 2 x 2409H-2 | | | | Dimensions (H x W x D) | 35.0 x 33.8 x 12.0" / 88.9 x 85.7 x 30.5 cm | | Weight | Not Specified by Manufacturer |
