User Manual for JBL CBT 1000E Purpose-Designed Extension Loudspeaker for CBT 1000 Line Array Column Speaker Click to enlarge the picture
Contents of the user manual for the JBL CBT 1000E Purpose-Designed Extension Loudspeaker
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL CBT 1000E Purpose-Designed Extension Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

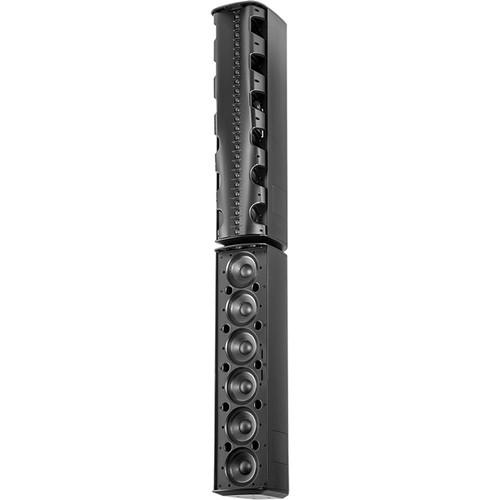

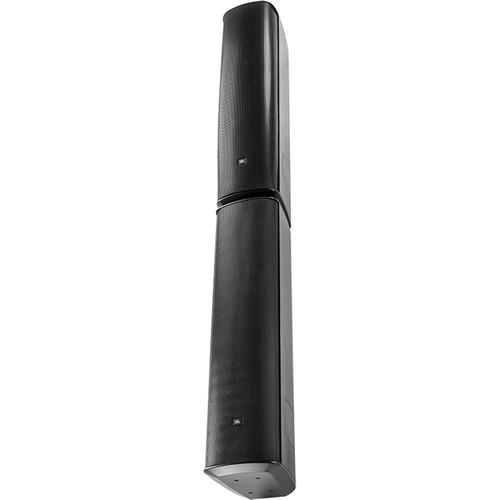

Product description The black CBT 1000E Extension Loudspeaker from JBL features six 6.5" low-frequency drivers and a purpose-designed crossover network for use in the CBT 1000 + 1000E system. The drivers feature neodymium magnet motors with 2" diameter voice coils providing maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 0.62" long coil provides linear drive and high power handling of 1500W in a compact driver. Each driver features damped blended surrounds and coated sealed paper cones. They are coated with diaphragm materials to provide moisture, UV, and salt resistance for outdoor capability. This extension speaker comes in a tough fiberglass reinforced ABS cabinet. Its thick heavy-duty aluminum grille allows for rust-free installation outdoors. A coupler plate is included for combining this extension speaker with the CBT 1000 array speaker (not included). - Six 6.5" high-excursion LF drivers
- Built-in purpose-designed crossover network for combining with CBT 1000 array speaker
- Coupler plate is included for joining this speaker unit with the array speaker
- Doubles power handling of the array speaker and extends pattern control
UPC: 691991005701 In the Box JBL CBT 1000E Purpose-Designed Extension Loudspeaker for CBT 1000 Line Array Column Speaker (Black) Coupler Plate Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CBT 1000E Purpose-Designed Extension Loudspeaker for CBT 1000 Line Array Column Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CBT 1000E Specs | Active or Passive | Passive | | Frequency Response | 38 Hz to 650 kHz at -10 dB | | Power Capacity | 1500 W (6000 W peak), 2 hours
1000 W (4000 W peak), 100 hours
These values conform to IEC standard, full bandwidth pink noise with 6 dB crest factor | | Maximum Sound Pressure Level (SPL) | 124 dB full space, 130 dB half-space (65 to 300 Hz)
2 to 6 kHz, calculated based on power rating and measured sensitivity, exclusive of power compression | | Nominal Sensitivity | 2.83 V at 3.3' (1 m), average 2 to 6 kHz:
92 dB full space
98 dB half-space (65 to 300 Hz) | | Impedance | Nominal: 8 Ohms | | Crossover | Not Specified by the Manufacturer | | Low Frequency Driver | 6 x 6.5" (165 mm) driver | | Maximum Input Voltage | 100 V RMS (2 hours)
200 V Peak (when powered separately, not in parallel with CBT 1000) | | Enclosure Material | Fiberglass reinforced ABS cabinet, powder-coated 1050 aluminum grille | | Inserts | Mounting Holes:

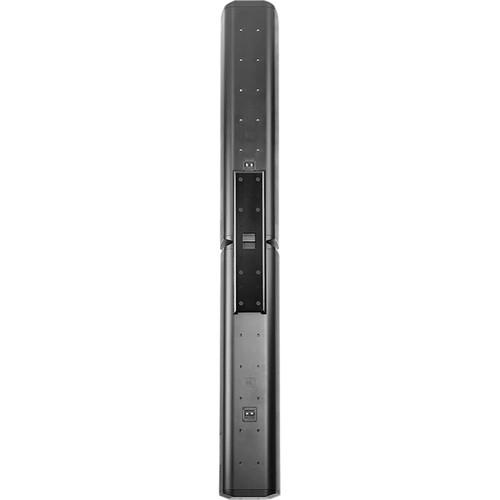

14 x M8 insert on back panel (20mm deep) for use with swivel pan/tilt bracket(s) (not included)
Conform to the industry standard rectangular 5 x 2.75" (127 x 70 mm) pattern for OmniMount and other compatible third-party brackets (not included)
4 x M8 insert on top
4 x M8 insert on bottom of cabinet end-caps | | Input Connections | Not Specified by the Manufacturer | | Outdoor Use | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature and UV, ASTM G85 for acid-air/salt-spray (200 hours) | | Finish | Black (RAL9004) | | Dimensions | 9.9 x 40.2 x 11.6" (25 x 102 x 29 cm) | | Weight | 44 lb (20 kg) |
