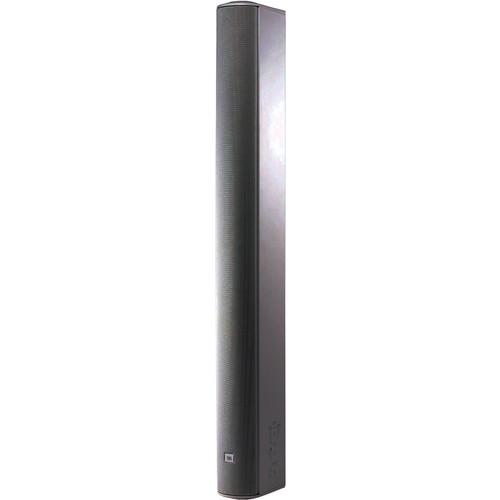

User Manual for JBL CBT 100LA-1 Line Array Column Loudspeaker with Sixteen 2" Drivers Click to enlarge the picture
Contents of the user manual for the JBL CBT 100LA-1 Line Array Column
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL CBT 100LA-1 Line Array Column contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The black CBT 100LA-1 Line Array Column Loudspeaker from JBL utilizes complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. The slim, compact design fits well into virtually any architectural decor. The 39.4" tall line array height provides consistent pattern control throughout the intelligibility band, making the CBT 100LA suitable for challenging acoustic environments. The combination of excellent sound quality, pattern control, and compact design makes CBT 100LA suitable for applications such as lecture halls, transit centers, conference rooms, cathedrals, multipurpose spaces, architectural spaces, and in-wall recessed locations. The innovative coverage adjustability allows switching between broad and narrow vertical coverage settings to allow matching the coverage and throw requirements of the application. Coverage can be easily switched in-venue with the speaker already installed. This allows a single loudspeaker model to perform in a wide variety of project types. The voicing can be set to match the application through the Music/Speech switch. The Music setting provides flat frequency response, while the Speech setting produces a mid-range presence boost to provide clear, intelligible speech even at the longest throw distances. The shielded drivers feature dual neodymium magnets to cut down the weight. Copper capped pole pieces lower the driver inductance and flux modulation, resulting in increased high frequency extension and reduced distortion at high drive levels. Butyl rubber surrounds provide long life even in high humidity environments. Dynamic SonicGuard minimizes distortion at high drive levels by limiting low frequency excursion dynamically. This maximizes clarity at high drive levels while protecting the drivers from damage due to overpowering. A wall-mount bracket is included, plus ten M6 inserts on the back panel accommodate third-party mounting brackets, or can be utilized to suspend the speaker using forged shoulder steel eye bolts, providing installation versatility. The CBT 100LA-1 Loudspeaker can be installed either indoors or outdoors. The drivers are weather-treated, and the fiberglass reinforced ABS cabinet is excellent for outdoor applications. The stainless steel external screws and the painted aluminum grille resist rusting in harsh conditions. - Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
- Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications
- Switchable voicing provides flat response in music mode or mid-range presence peak in Speech mode
- Dynamic SonicGuard overload protection
- Built-in 70V / 100V transformer, plus 8 ohms direct capability
In the Box JBL CBT 100LA-1 Line Array Column Loudspeaker with Sixteen 2" Drivers (Black) Wall Bracket Limited 5-Year Warranty Brochure PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CBT 100LA-1 Line Array Column Loudspeaker with Sixteen 2" Drivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CBT 100LA-1 Specs | Components | 16 x 2" (50 mm) full-range drivers | | Frequency Range | 80 Hz to 20 kHz, -10 dB (full space) | | Coverage Pattern | Vertical:
Narrow Mode: 15° (2 to 16 kHz) (±10°)
Broad Mode: 40° (1 to 16 kHz) (±10°)
Horizontal: 150° (averaged, 1 to 4 kHz, ±20°) | | Sensitivity | 2.83 V @ 1 m, full space
Narrow:
Speech Mode: 96 dB (2 to 14 kHz)
Music Mode: 93 dB (300 Hz to 18 kHz)
Broad:
Speech Mode: 93 dB (2 to 14 kHz)
Music Mode: 90 dB (300 Hz to 18 kHz) | | Power Capacity | 8 ohms Setting: 325 W (1300 W peak), 2 hours
200 W (800 W peak), 100 hours IEC standard, full bandwidth pink noise with 6 dB crest factor | | Maximum SPL | Narrow:
Speech Mode: 121 dB continuous averaged (127 dB peak)
Music Mode: 118 dB continuous averaged (124 dB peak)
Broad:
Speech Mode: 118 dB continuous averaged (124 dB peak)
Music Mode: 115 dB continuous averaged (121 dB peak) Calculated based on power rating and measured sensitivity, exclusive of power compression | | Transformer Taps | 70 V / 100 V: 120 W, 60 W, 30 W, (15 W at 70 V only), and 8 Ω thru, via switch | | Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille | | Outdoor Durability | IP54 rated, per IEC529. UV, moisture and salt-spray resistant | | Rigging Points | 18 x M6 insert points on back panel Insert points conform to industry standard rectangular 4.25 x 2.0" (108 x 51 mm) pattern for third-party brackets, or can be utilized for suspension | | Mounting | Included wall bracket provides continuously adjustable ±15° tilt, as well as 5° fixed increment points | | Dimensions (H x W x D) | 39.4 x 3.8 x 6.0" (100.0 x 9.8 x 15.3 cm) | | Weight | 15.8 lb (7.2 kg) | | | | Package Weight | 25.35 lb | | Box Dimensions (LxWxH) | 48.0 x 12.75 x 7.8" |
