User Manual for JBL CBT 100LA-LS-WH Line-Array Column Loudspeaker with EN54:24 Certification Click to enlarge the picture
Contents of the user manual for the JBL CBT 100LA-LS-WH Line-Array Column Loudspeaker
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL CBT 100LA-LS-WH Line-Array Column Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

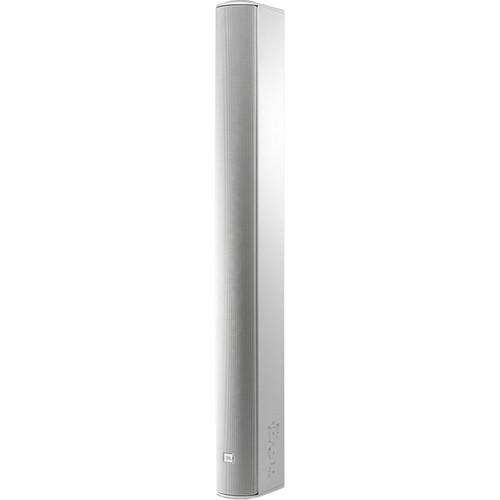

Product description The white CBT 100LA-LS-WH Line-Array Column Loudspeaker from JBL contains 16 drivers (2” each) and features the Constant Beamwidth Technology which utilizes complex analog delay beam-forming and amplitude-tapering to achieve consistent vertical coverage, avoiding narrow vertical beaming and out-of-coverage lobing. The vertical pattern coverage is switchable between 40° for medium-throw coverage and 15° for long-throw applications. This EN54:24 certified loudspeaker comes with a built-in 70/100V transformer, plus 8 ohms direct capability. - Constant Beamwidth Technology provides constant directivity up to high frequencies and reduces out-of-coverage lobing
- EN54:24-compliant (when installed with the included MTC-PC2 Panel Cover)
- Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
- Dynamic SonicGuard overload protection
- Swivel (pan)/tilt wall bracket included
- Built-in 70/100V transformer, plus 8 ohms direct capability
- MTC-PC2 Weatherproof Panel provides protection for the input connections of the loudspeaker
UPC: 691991000126 In the Box JBL CBT 100LA-LS-WH Line-Array Column Loudspeaker with EN54:24 Certification (White) MTCPC2 Weatherproof Control Loudspeaker Panel Cover (Pair) Swivel / Tilt Wall Bracket Limited 5-Year Warranty Brochure PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CBT 100LA-LS-WH Line-Array Column Loudspeaker with EN54:24 Certification in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CBT 100LA-LS-WH Specs | Components | 16 x 2" (50 mm) full-range | | Frequency Range | -10 dB: 120 Hz to 20 kHz | | Coverage Pattern | Vertical:
Narrow Mode: 15° (2 to 16 kHz) (±10°)
Broad Mode: 40° (1 to 16 kHz) (±10°)
Horizontal: 150° (ave, 1 to 4 kHz, ±20°) | | Sensitivity | 2.83 V @ 3.3' (1 m):
Narrow: (Speech mode) 96 dB (2 to 14 kHz); (music mode) 93 dB (300 Hz to 18 kHz)
Broad: (Speech mode) 93 dB (2 to 14 kHz); (music mode) 90 dB (300 Hz to 18 kHz)
EN54 Sensitivity @ 13 (4 m); 76 dB (per EN54:24 spectrum and measurement conditions at 13' (4 m), set at broad/music mode) | | Nominal Impedance | 8 ohms (in Thru mode)
15 W @ 70 V; 30 W @ 100 V Tap = 333 ohms
30 W @ 70 V; 60 W @ 100 V Tap = 167 ohms
60 W @ 70 V; 120 W @ 100 V Tap = 83 ohms
120 W @ 70 V; N/C @ 100 V Tap = 42 ohms | | Power Capacity | 8 ohms Setting:
325 W (1300 W peak), 2 hours
200 W (800 W peak), 100 hours | | Max SPL Level | Narrow: (speech mode) 121 dB cont ave (127 peak); (music mode) 118 dB cont ave (124 peak)
Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
EN54 maximum SPL @ 13'(4 m) 92 dB (per EN54:24 spectrum and measurement conditions, at 13') | | Transformer Taps | 70/100 V:
120, 60, 30 W (15 W at 70 V only), and 8 thru, via switch | | Axes | Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle. | | Enclosure | Fiberglass-reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille | | Outdoor Use | IP-55 rated, per IEC529, when installed with included MTC-PC2 Panel Cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray | | Insert | 18 x M6 insert points on back panel | | Mounting | Included swivel (pan)/tilt wall bracket provides continuously variable +/-80-degree left-right swivel aiming (at no up/down tilt)
Continuously adjustable ±15-degree tilt, as well as 5 degrees fixed increment points. 18 threaded mounting points located on back panel conform to industry-standard rectangular 4.25 x 2.0 (108 x 51 mm) pattern for OmniMount 30.0 and other compatible brackets. Threaded mounting points can be utilized for suspension. | | Safety Agency Approval | EN54-24:2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849.
Transformer UL registered per UL1876 | | Dimensions (H x W x D) | 39.4 x 3.80 x 6.00" (100.0 x 9.85 x 15.3 cm) | | Weight | 15.8 lb (7.2 kg) |
