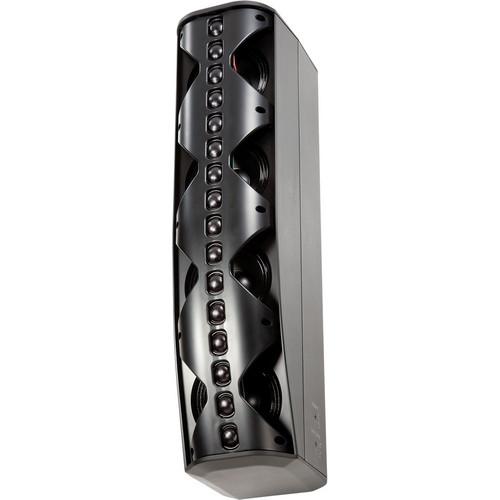

Product description The black CBT 70J-1 from JBL is a 2-way line array column loudspeaker, ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more. The unit features four 5" high-power low frequency drivers and sixteen 1" soft dome tweeters to provide plenty of power and a wide frequency response.
The asymmetrical vertical coverage provides consistent front-to-back sound levels, while the patent-pending Constant Beamwidth Technology provides constant directivity and reduces out-of-coverage lobing. The vertical pattern coverage is switchable between 45° and 25°, allowing you to choose the best use for medium-throw or long-throw applications.
Switchable voicing provides a flat response in music mode and a mid-range presence boost in speech mode to accommodate music and speech programs. Built-in SonicGuard technology provides overload protection for HF devices. This model includes an improved mounting bracket that affords enhanced aiming flexibility and a stronger grille. Main Features - Ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more
- Four 5" high-power low frequency drivers and sixteen 1" soft dome tweeters provide plenty of power and a wide frequency response
- Asymmetrical vertical coverage provides consistent front-to-back sound levels by sending more sound towards far areas of a room
- Patent-pending Constant Beamwidth Technology provides constant directivity at all frequencies and reduces out-of-coverage lobing
- The vertical pattern coverage is switchable between 45° and 25°, allowing you to choose the best use for medium-throw or long-throw applications
- Switchable voicing provides a flat response in music mode and a mid-range presence boost in speech mode to accommodate music and speech programs
- Built-in SonicGuard technology provides overload protection for HF devices
Improved Mounting Bracket - Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt)
- Continuously variable +/-15 degree tilt, as well as 5-degree fixed increment points
- Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 5.0 x 2.75" (127 x 70mm) pattern for OmniMount 60.0 and other compatible third-party brackets
- Threaded mounting points can be utilized for suspension
In the Box JBL CBT 70J-1 Line Array Column Loudspeaker (Black) Wall Bracket Limited 5-Year Warranty Brochure PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CBT 70J-1 Line Array Column Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CBT 70J-1 Specs | Active or Passive | Passive | | Frequency Response | 60 Hz - 20 kHz | | Power Capacity | 500 W (2000 W Peak), 2 Hours
350 W (1400 W Peak), 100 Hours | | Maximum Sound Pressure Level (SPL) | Narrow:
Speech Mode: 125 dB Continuous, 131 dB Peak
Music Mode: 120 dB Continuous, 126 dB Peak
Broad:
Speech Mode: 123 dB Continuous, 129dB Peak
Music Mode: 119 dB Continuous, 125 Peak | | Nominal Sensitivity | Narrow:
Speech Mode: 98 dB (1 kHz - 8 kHz)
Music Mode: 93 dB (300 Hz - 18 kHz)
Broad:
Speech Mode: 96 dB (1 kHz - 8 kHz)
Music Mode: 92 dB (300 Hz - 18 kHz) | | Impedance | 8 ohms | | Crossover | Not Specified by Manufacturer | | Low Frequency Driver | Four 5" (130 mm) Drivers, Dual Magnet Neodymium, 1.5" (38 mm) Voice Coil, Damped Blended Textile Surround, Coated Diaphragm for Moisture, UV, and Salt Resistance, Shielded | | High Frequency Driver | Sixteen 1" (25 mm) Drivers, Dual Magnet Neodymium, Encased Magnet and Coated Diaphragm for Moisture, UV and Salt Resistance, Shielded | | Enclosure Material | Fiberglass Reinforced ABS Cabinet, Painted Aluminum Grille | | Input Connections | Speaker Wire Terminals | | Compliance | IP-54 rated per IEC529
UV, moisture and salt-spray resistant | | Dimensions (HxWxD) | 27.4 x 6.7 x 9.3" (69.4 x 17.0 x 23.7 cm) | | Weight | 21.0 lb (9.5 kg) | | | | Package Weight | 32.2 lb | | Box Dimensions (LxWxH) | 35.45 x 13.3 x 12.0" |
