Product description The black CBT 70JE-1 Extension for CBT 70J-1 Speaker by JBL Professional is purposely designed for use with the CBT 70J-1, in a tough fiberglass-reinforced ABS enclosure. The speaker contains four low frequency drivers and a crossover network. The 500 W power handling and high sensitivity delivers powerful low frequency output.
When connected to a CBT 70J-1 speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which results in pattern control consistency.

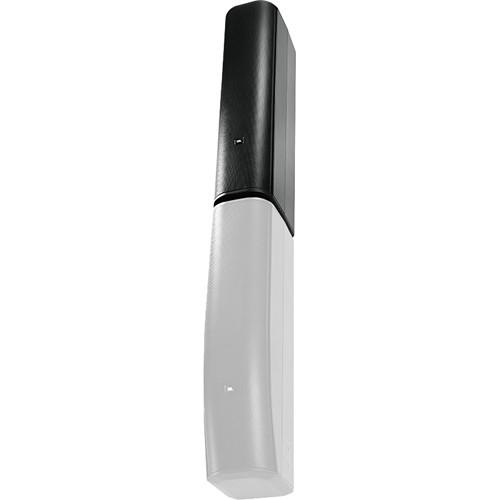

The CBT 70JE-1 attaches to the top of the CBT 70J-1, utilizing the included coupler plate, resulting in a well controlled progressive line array with asymmetrical vertical coverage. This coverage produces a higher concentration of sound with a tighter pattern projecting to the far areas of the listening space. - Ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more
- Extended bass response to 45 Hz
- Extended pattern control (to 400 Hz for +/- 20° control, to 200 Hz for substantial off-axis cancellation)
- Patent-pending Constant Beamwidth Technology, provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
In the Box JBL CBT 70JE-1 Extension for CBT J-1 Speaker (Black) Coupler plate Limited 5-Year Warranty on Drivers Parts and Labor
Limited 2-Year Warranty on Cabinets Brochure PDF 973.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CBT 70JE-1 Extension for CBT J-1 Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CBT 70JE-1 Specs | Frequency Range | 45 - 700 Hz (-10 dB) | | Power Capacity | 500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs | | Maximum Sound Pressure Level (SPL) | 117 dB | | Sensitivity | 90 dB full space
96 dB half space | | Nominal Impedance | 8Ω | | Voice Coil | 1.5" (38 mm) | | Low Frequency Driver | 5" (130 mm) drivers x 8 pieces | | High Frequency Driver | 1" (25 mm) drivers x 16 pieces | | Enclosure Material | Fiberglass-reinforced ABS cabinet, painted aluminum grille | | Coverage | Vertical (selectable via switch)
Narrow Mode: 25° (2 kHz - 16 kHz) (+/- 10°)
Broad Mode: 45° (350 Hz - 16 kHz) (+/- 10°)
Horizontal 150° (500 Hz - 18 kHz, +/- 20°) | | Input Connections | 2 x speaker wire terminals | | Compliance | IP-54 rated per IEC529 UV, moisture and salt-spray resistant | | Dimensions (H x W x D) | 54.8 x 6.7 x 9.3" (1388 x 170 x 237 mm) | | Weight | 8.2 kg (18 lb) | | | | Package Weight | 27.5 lb | | Box Dimensions (LxWxH) | 37.5 x 13.5 x 12.0" |
