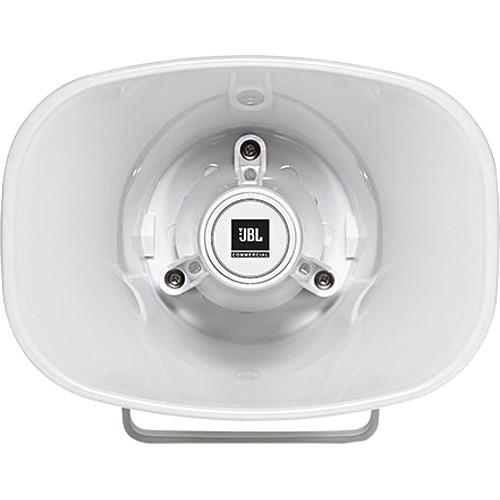

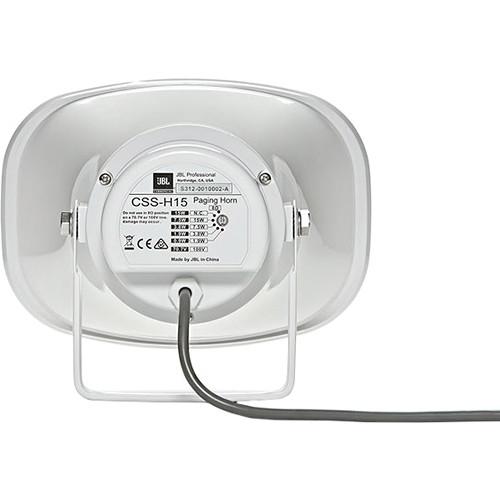

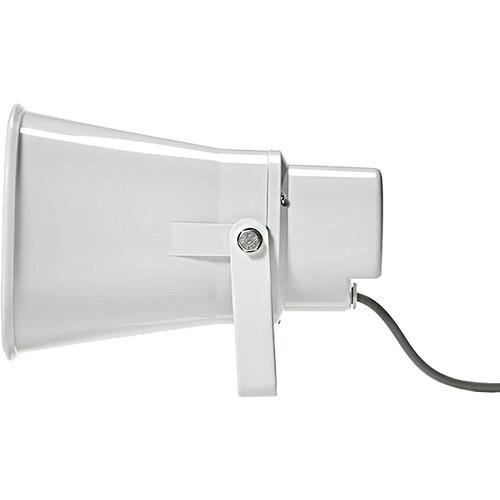

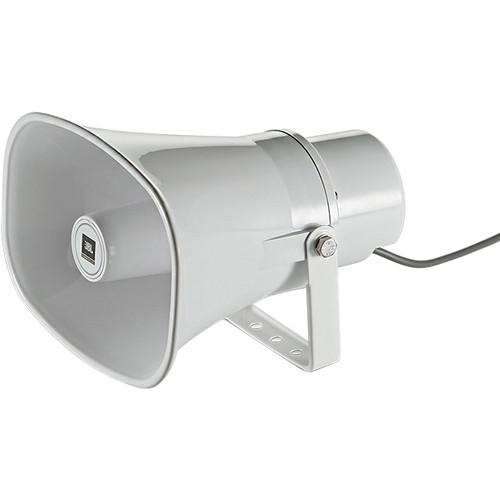

Product description The white Commercial Solutions Series CSS-H15 15W Paging Horn from JBL provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm, and industrial applications. Designed for demanding environmental conditions, the IP65-rated CSS-H15 is highly weather resistant, so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a large audience area. This paging horn is suitable for public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protective-signaling systems. The CSS-H15 Paging Horn includes a UL-registered 15W multi-tap transformer for use with 70V or 100V distributed speaker lines. The power tap switch is screwdriver-adjustable for easily changing settings from 15W, 7.5W, 3.8W, 1.9W (and 0.9W at 70V only). For non-distributed systems there is an 8Ω bypass position. Connection is via bare wire on a built-in jacketed cable with water-tight entrance to the speaker. The transducer diaphragm is made of sturdy phenolic material to enhance durability, especially in outdoor applications, and to resist deformation under stressful temperature conditions. To further increase reliability, a 350 Hz high-pass filter is built-in to protect the paging horn against damage from frequencies below the operational frequency band. The horn is made of sturdy ABS plastic and the exterior hardware is made of corrosion-resistant stainless steel. - Excellent voice range clarity for announcement and paging
- High sensitivity delivers high sound levels with minimal power amplification
- Wide 70° horizontal by 90° vertical coverage for medium throw applications
- Phenolic diaphragm driver for outdoor durability and high reliability
- UL-registered 15W multi-tap transformer, with 8Ω direct bypass
- Built-in high-pass filter enhances reliability by protecting against low frequency damage
- IP65-rated weather-resistant with included stainless steel bracket and hardware
- Color: RAL9016 (horn and bracket)
In the Box JBL Commercial Solutions Series CSS-H15 15W Paging Horn (White) Stainless Steel Mounting Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Commercial Solutions Series CSS-H15 15W Paging Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSS-H15 Specs | | | Frequency Response | -10 dB: 400 Hz to 7.5 kHz (based on average 1 kHz to 6 kHz sensitivity) | | Coverage Pattern | 70° (H) x 90° (V) (at 2 kHz and averaged 1 kHz to 4 kHz) | | High-Pass Filter | Included: Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range | | Directivity Factor | 10.9 (2 kHz) | | Directivity Index | 10.4 (2 kHz) | | Power Rating | 15 W (60 W peak), 100 hours AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air, 100 hour continuous | | Sensitivity | 1 W, 2.83 V @ 3.3' (1.0 m): 105 dB, average 1 kHz to 6 kHz; 111 dB at 2 kHz | | Maximum SPL | 3.3' (1.0 m):
117 dB continuous average (123 dB peak), 1 kHz to 6 kHz
123 dB continuous average (129 dB peak), 2 kHz, 15 W input, 8 Ω setting Calculated, based on power rating and measured sensitivity, exclusive of power compression | | Nominal Impedance | 15 W / 70 V, NC / 100 V Tap: 333 Ω
7.5 W / 70 V, 15 W / 100 V Tap: 667 Ω
3.8 W / 70 V, 7.5 W / 100 V Tap: 1333 Ω
1.9 W / 70 V, 3.8 W / 100 V Tap: 2666 Ω
0.9 W / 100 V, 1.9 W / 100 V Tap: 5332 Ω
8 Ω at 8 Ω direct setting | | Transformer Taps | 70 V: 15 W, 7.5 W, 3.8 W, 1.9 W. 0.9 W
100 V: 15 W, 7.5 W, 3.8 W, 1.9 W | | | | Driver | Full-Range: 1.3" (3.3 cm) diameter with phenolic diaphragm | | | | Material | Horn: ABS | | Mounting Hardware | Stainless steel powder-coated U-bracket (yoke) with 3 x 0.34" (0.88 cm) diameter mounting holes; stainless steel exterior hardware | | Input Connection Type | 12" (30 cm) pigtail to bare wire; entrance via water-tight fitting
Wire colors: Red: Positive (+); Black: Negative (-) | | Environmental | IP65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware | | Safety Agency Approvals | Transformer UL registered per UL1876 "Isolating Signal and Feedback Transformers for Use in Electronic Equipment" | | Dimensions (H x W x D) | Horn Only: 6.5 x 8.8 x 9.2" (16.3 x 22.2 x 23.2 cm)
With Mounting Bracket: 7.1 x 8.8 x 9.2" (18.1 x 22.2 x 23.2 cm) (depth excludes cable exit) | | Weight | 3.0 lb (1.4 kg) |
