User Manual for JBL Control 1 Pro - 5" Two-Way Professional Compact Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL Control 1 Pro - 5"
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL Control 1 Pro - 5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

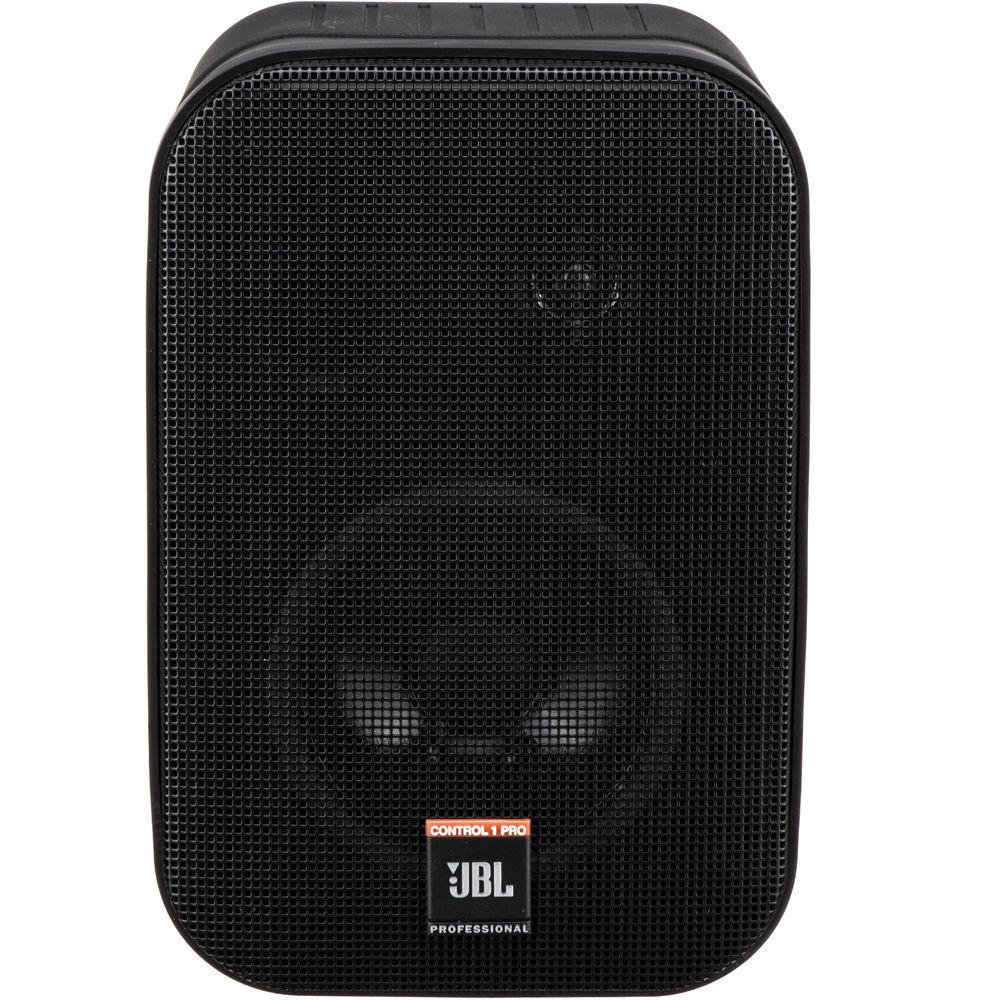

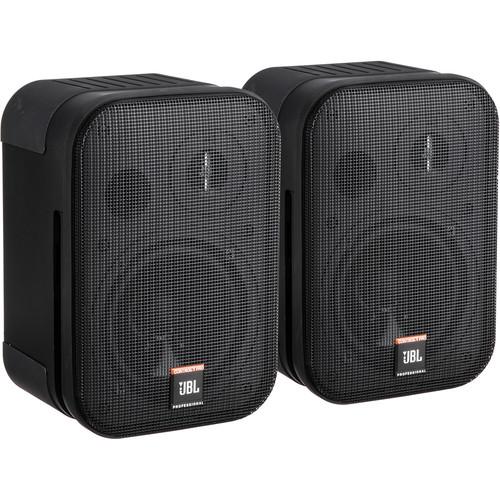

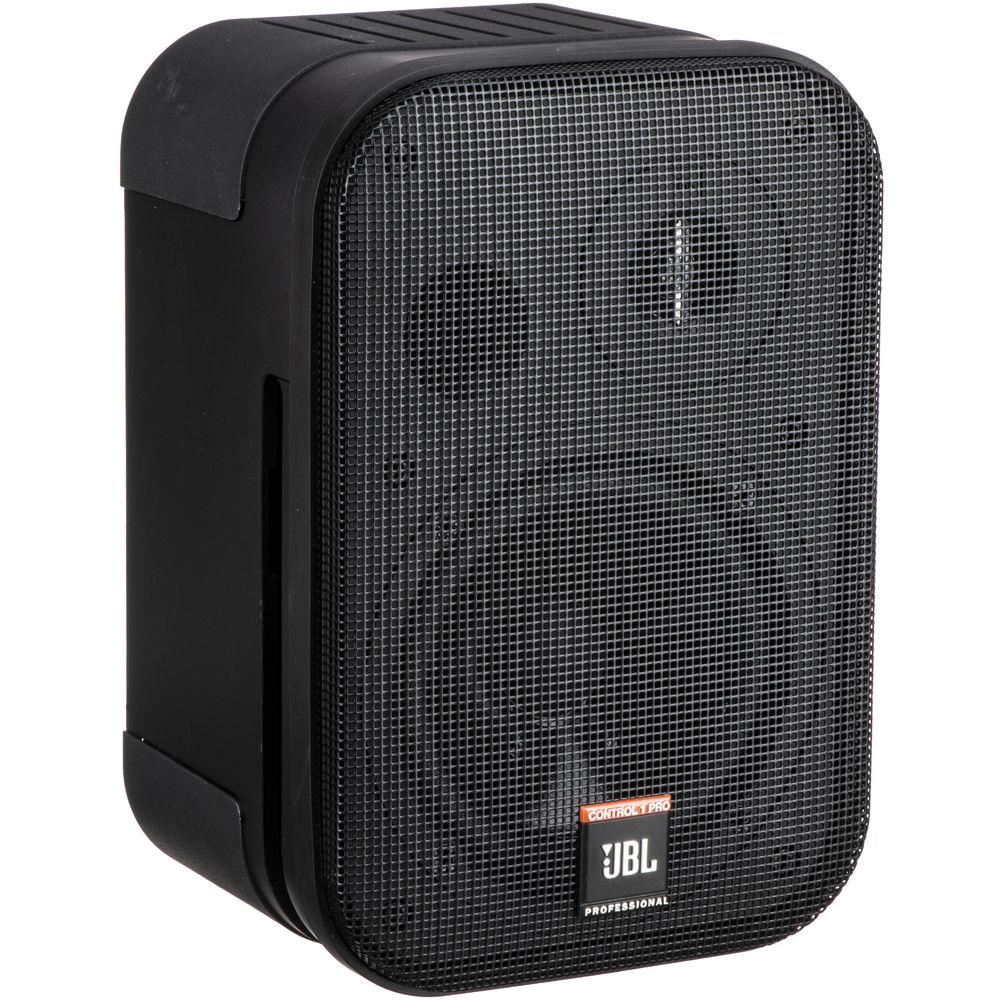

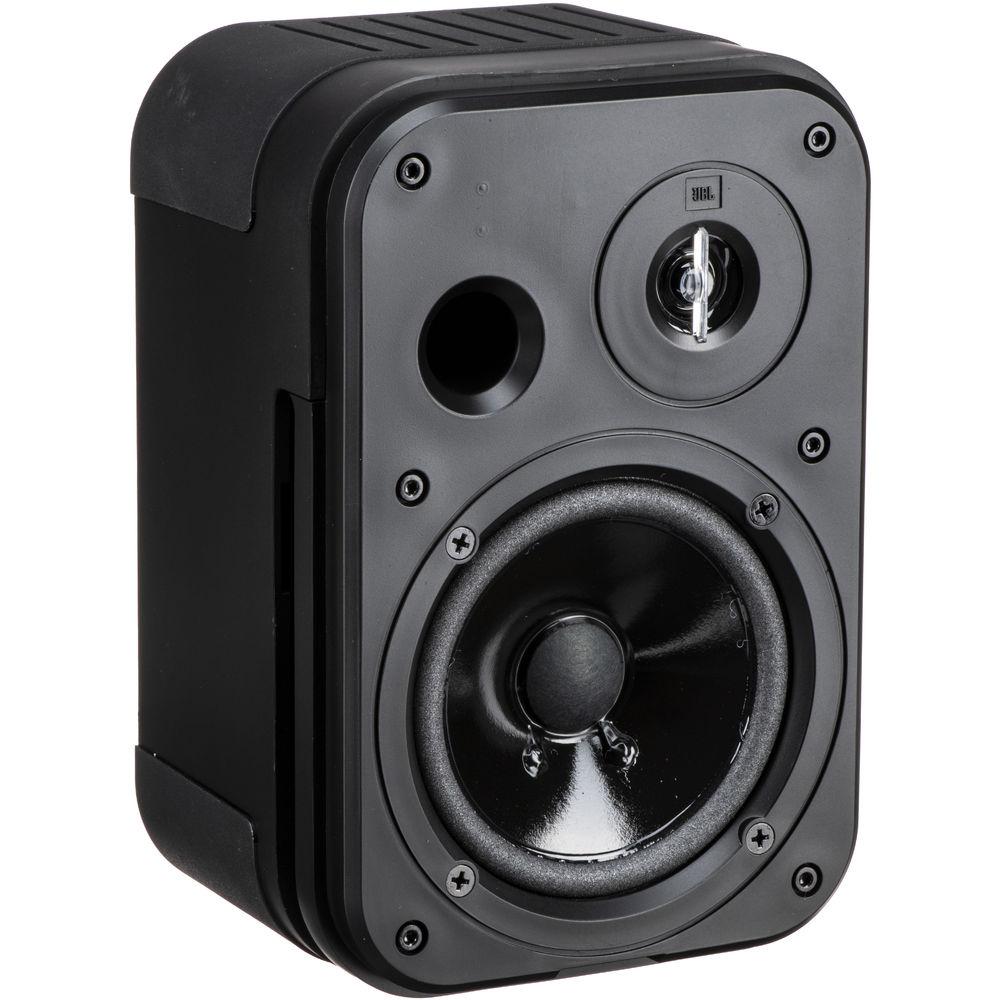

Product description The black JBL Control 1 Pro are a pair of compact professional loudspeakers offering high quality at an affordable price for professional or residential applications. The rugged enclosure houses a 5" woofer and a 0.75" dome tweeter, which combine to provide a frequency response of 100 Hz to 18 kHz. When powered by a 150W (continuous) amplifier, the speaker provides a maximum SPL of 114 dB. Additionally, the cabinet is magnetically shielded for safe use near video monitors.

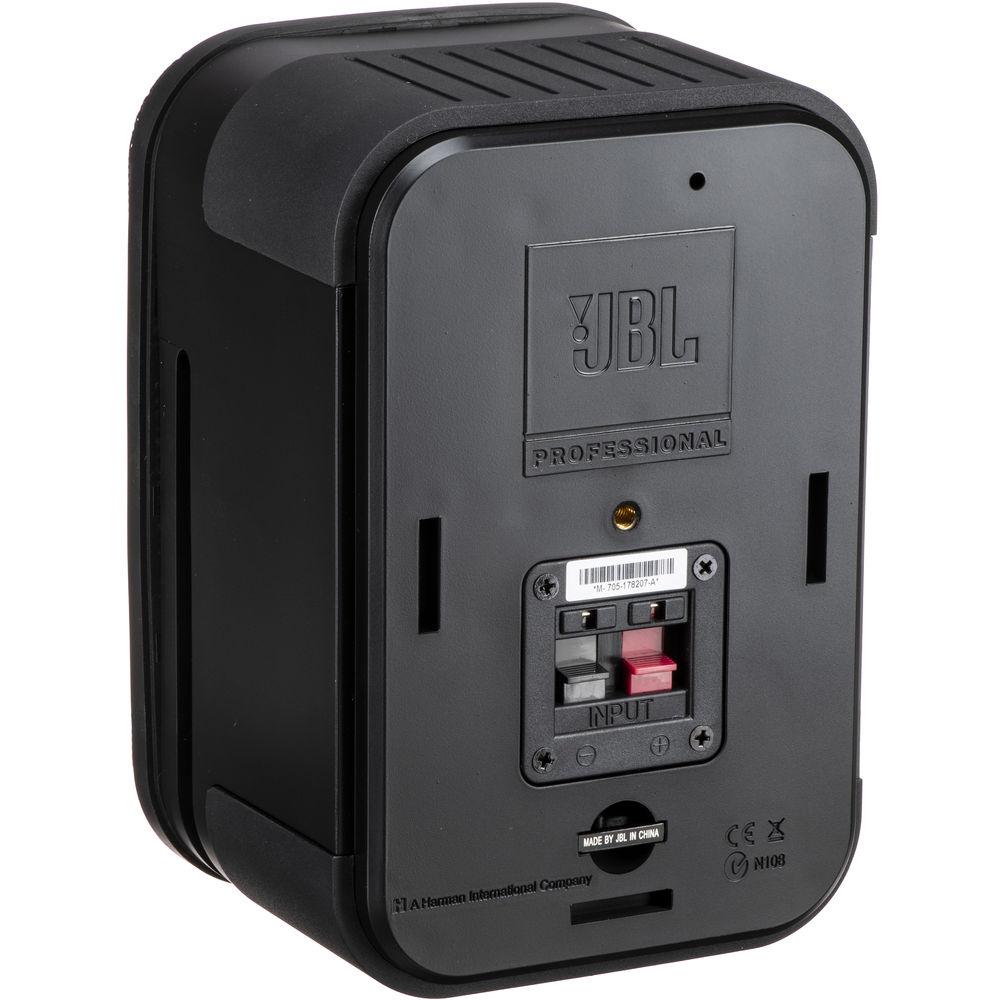

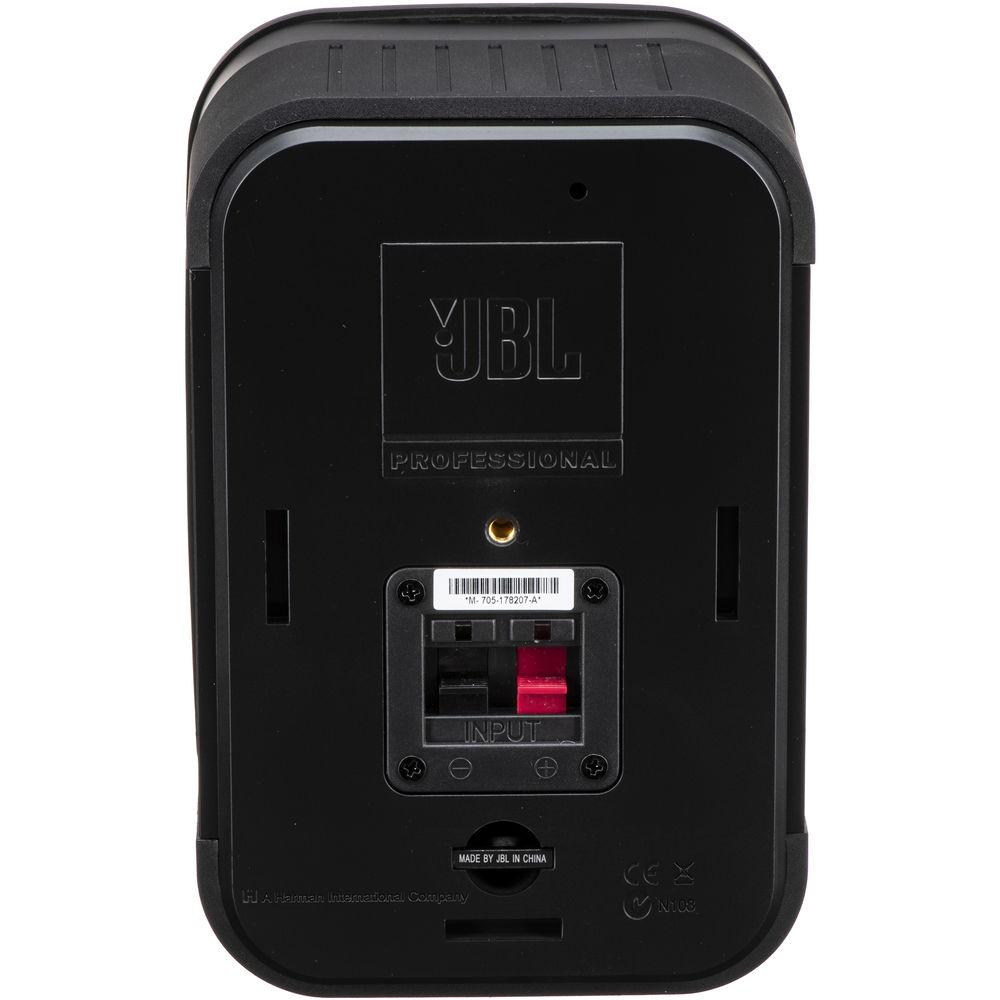

The rear of the cabinet features standard spring-loaded speaker terminals for wide compatibility. SonicGuard protection circuitry protects the network and transducers to keep your speakers running smoothly. A ball-and-socket mounting bracket is included for easy installation and positioning flexibility. -
- 150W continuous power handling
- Professional drivers and crossover network
- Transparent and faithful sonic performance
- Magnetically shielded transducers
- SonicGuard overload protection
- Mounting bracket assembly included
UPC: 050036903455 In the Box JBL Control 1 Pro - 5" Two-Way Professional Compact Loudspeaker (Pair, Black) Mounting Bracket Limited 2-Year Warranty User Manual PDF 651.8kbyswetfbqduuwbd Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 1 Pro - 5" Two-Way Professional Compact Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 1 Pro Specs | Active or Passive | Passive | | Frequency Range | 80 Hz to 20 kHz (-10 dB) | | Frequency Response | 100 Hz to 18 kHz (±3 dB) | | Power Capacity | 150 W | | Sensitivity | 87 dB SPL, 1 W, 3.3' / 1 m | | Maximum Sound Pressure Level (SPL) | 108 dB continuous, 114 dB peak | | Directivity Factor | Q: 6.0 | | Directivity Index | DI: 7.8 | | Impedance | 4 Ohms | | Crossover | 4.2 kHz | | Overload Protection | Full-range, SonicGuard power limiting to protect network and transducers | | Low Frequency Driver | Woofer: 5.25" / 135 mm | | High Frequency Driver | Polycarbonate Dome Tweeter: 0.75" / 19 mm | | Input Connections | Spring speaker terminals | | Enclosure Material | Polypropylene structural foam | | Finish | Black | | Dimensions (HxWxD) | 9.25 x 6.25 x 5.6" / 235 x 159 x 143 mm | | Weight | Each Speaker: 4 lb / 1.8 kg | | | | Package Weight | 11.55 lb | | Box Dimensions (LxWxH) | 12.8 x 11.8 x 7.4" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
