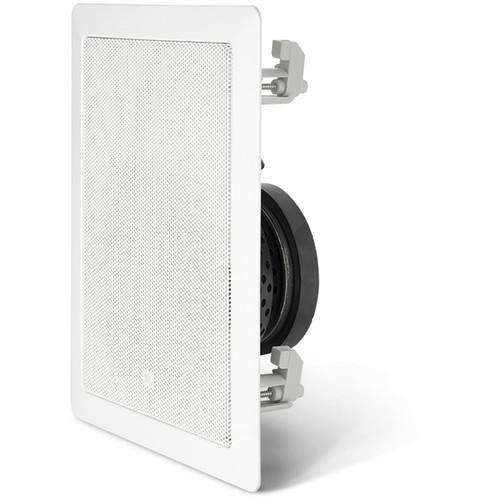

JBL Control 126WT 6.5" 2-Way 100W

User Manual for JBL Control 126WT 6.5" 2-Way 100W In-Wall 70V 100V Installation Speakers

• Product category: Installed Speakers JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL Installed Speakers

Product description

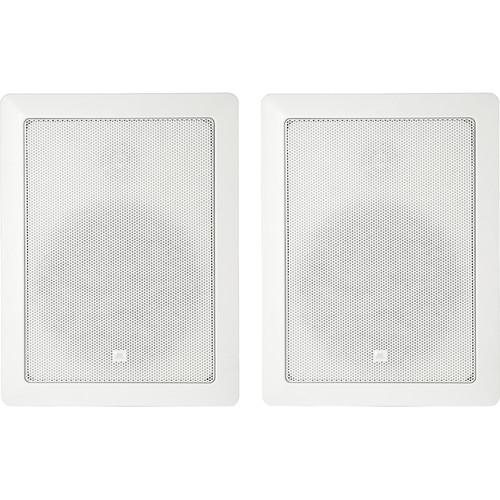

• In-wall installation speakers with paintable baffles and grilles

• Includes cutout templates and paint shields for ease of installation

• Multi-tap transformer enables use with 70V/100V constant-voltage systems

• Foreground music solution with discreet, minimized visual impact for boardroom, reception areas, restaurants, airports, and retail applications

• 100W continuous program (200W peak) power handling performance

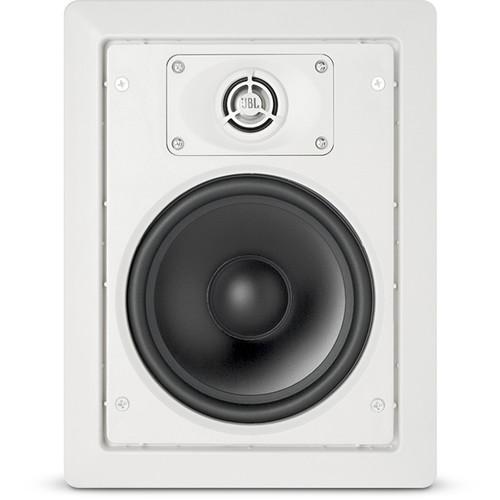

• Durable 6.5" polymer-coated, aluminum-cone woofer with low-frequency reproduction to 38 Hz

• 1" titanium-dome tweeter on low-diffraction swivel mount with built-in proprietary EOS (Elliptical Oblate Spheroidal) waveguide for low distortion and smooth high-frequency reproduction to 20 kHz

• Aimable tweeter with -10° positioning adjustment

• 18 dB/octave crossover network with high- and low-pass filtering

• Fits in wall space of conventional stud-wall construction

• Optional custom rough-in frame for new construction installations

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

JBL 126WT Specs

Active or Passive	Passive
LF Driver	6.5" / 16.5 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround
HF Driver	1" / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10° Aimability
Frequency Range	38 Hz to 20 kHz (-10 dB)
Power Capacity	Peak: 200 W Continuous Program: 100 W Continuous Pink Noise: 50 W
Sensitivity	88 dB SPL (1 W, 1 m)
Impedance	Not applicable
Transformer Taps	Watts at 70 V: 3.7, 7.5, 15, 30 Watts at 100 V: 7.5, 15, 30
Crossover	Low-Pass Filter to Woofer: 3rd Order (18 dB/Octave) High-Pass Filter to Tweeter: 3rd Order (18 dB/Octave)
Input	Screw-Down Euroblock Connector (14 AWG Maximum Wire Size)
Shielded	No
Air Gap	Optimum Air Cavity Behind Speaker: 0.7 to 1.4 ft Rating 90% users recommend this product to others. And what about you? This product has already been rated by 06 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
