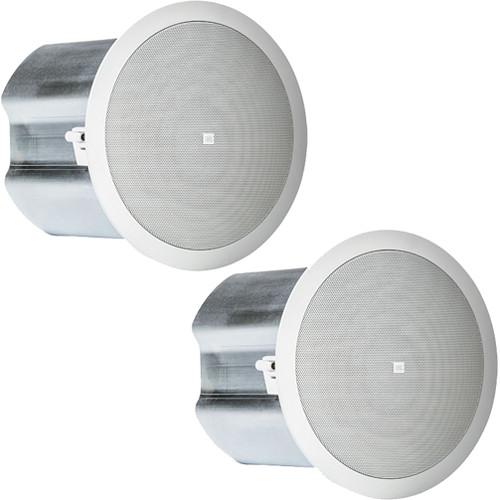

User Manual for JBL Control 16C T 2-Way 6.5" Coaxial Ceiling Loudspeakers Click to enlarge the picture
Contents of the user manual for the JBL Control 16C T 2-Way 6.5"
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 16C T 2-Way 6.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Styled in white, this pair of JBL Control 16C/T Speakers are designed to suit a variety of spaces, such as cafes, places of business, airport lounges, reception areas, court rooms, and more. They feature a 2-way coaxial design, giving you a 6.5" cone driver and a 0.75" soft-dome, liquid-cooled tweeter. With their coaxial construction, these speakers deliver a more consistent sound off-axis, which is a benefit for environments in which indirect listening takes place.
The drivers themselves are designed using a high-temperature anodized aluminum voice coil former and high-temperature voice coil to ensure a reliable performance throughout years of continuous use. Butyl rubber encloses the drivers, offering further durability, as well as sonic damping. The cone itself is resistant to both water and humidity. Thanks to a FEA-optimized motor construction, the Control 16C/T achieves a smooth frequency response.
Installation is made possible via the removable locking connector, within which you'll find screw terminals for wire termination, as well as loop-thru points for furthering signal to more speakers. Dual conduit clamps employed to provide strain relief to both the input and loop-output cables. You can use the speaker to handle 8-Ohm loads, or as part of a 70V / 100V distributed loudspeaker system with a 30W multi-tap transformer.
These speakers ship with two tile rail supports, as well as a C-ring support backing plate, cutout template, paint shield, and grille. On the top of the speaker you'll find a safety seismic attachment ring. - 100W continuous program power rating
- Components: 6.5" / 165.1mm high-output driver with polypropylene cone and butyl rubber surround, and 0.75" / 19mm soft-dome liquid-cooled tweeter
- Blind-mount backcan for quick and easy install
- Dual conduit cable clamps
- Combined 70V/100V and low impedance direct operation
- 62 Hz to 20 kHz bandwidth with 110° conical coverage
- Suitable for use in air handling spaces and as signaling speakers
UPC: 050036904575 In the Box JBL Control 16C/T 2-Way 6.5" Coaxial Ceiling Loudspeakers (Pair, White) 2 x C-Ring Support Backing Plates 4 x Tile Support Rails for 2' or 600mm Tile Spans 2 x Cardboard Cutout Templates 2 x Paint Shields 2 x Removable Locking Multi-Pin Connectors 2 x Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 16C T 2-Way 6.5" Coaxial Ceiling Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 16C/T Specs | Frequency Range | 62 Hz to 20 kHz at -10 dB Half-space (flush mounted in ceiling) | | Frequency Response | 96 Hz to 15 kHz at ±3 dB Half-space (flush mounted in ceiling) | | Power Capacity | At Lo-Z:
100 W continuous program power
50 W continuous pink noise
Note: Continuous Pink Noise Rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is a conservative expression of the system's ability to handle normal speech and music program material, and is defined as 3 dB above the Continuous Pink Noise Rating. | | Nominal Sensitivity | 91 dB Half-space (in ceiling) average 1 kHz to 16 kHz | | Nominal Coverage Angle | 110° conical coverage Half-space (in ceiling) average 1 kHz to 16 kHz. | | Directivity | Directivity Factor (Q): 7.8
Directivity Index (DI): 8.2 dB Half-space (in ceiling) average 1 kHz to 16 kHz. | | Maximum SPL | Rated: 108 dB @ 3.3' / 1.0 m average, 116 dB peak | | Nominal Impedance | 8 Ohms (in direct/bypass 8-Ohm setting) | | Transformer Taps | 30 W, 15 W, 7.5 W @ 70 or 100 V (plus 3.8 W @ 70 V only) | | Crossover | Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver | | Transducer | LF Driver: 6.5" / 165.1 mm with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high-temperature voice coil
HF Driver: 0.75" / 19.00 mm, highly damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide | | Input Connector | Removable locking 4-pin connector with screw-down terminals.
Maximum wire size 12 AWG (2.5 mm2) | | Wiring | Connector:
Pin 1 = + In
Pin 2 = - In
Pin 3 = + Loop Thru
Pin 4 = - Loop Thru | | Strain Relief | For 2 cables or 2 flex conduits via coupled clamping mechanism | | Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Zinc-plated steel backcan | | Safety Agency Approvals | UL1480, UL2043, NFPA90, and NFPA70; S7232/UL Listed
Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant
Baffle meets UL94-V0 and UL94-5VB flammability rating
In accordance with IEC60849/EN60849 systems | | Attachment | Safety Seismic: One point, top surface | | Ceiling Cutout Size | Circular cutout with 8.8" / 223.5 mm diameter (cardboard cutout template included) | | Ceiling Thickness | Up to 1.5" / 38.1 mm with stock dog-ears
MTC-TCD thick-ceiling dog-ears sold separately for up to 2.4" / 60.9 mm ceiling thicknesses | | Dimensions (Ø x D) | Each Speaker: 10.0 x 8.8" / 253 x 225.0 mm
Depth measured from back of the baffle | | Weight | Each Speaker: 7.4 lb / 3.4 kg | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 27.0 x 14.0 x 12.0" |
