User Manual for JBL Control 19CST 8" 200W In-Ceiling 70V 100V Installation Subwooofers Click to enlarge the picture
Contents of the user manual for the JBL Control 19CST 8" 200W In-Ceiling
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL Control 19CST 8" 200W In-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

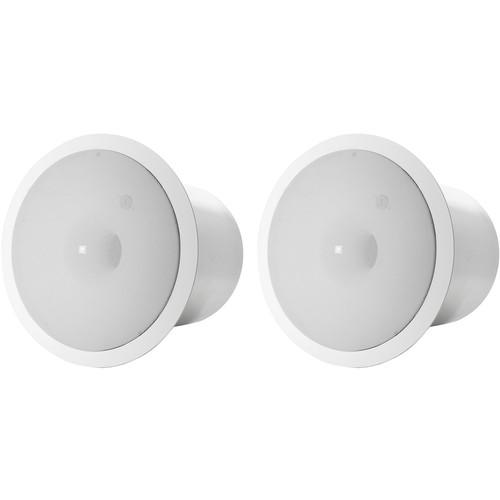

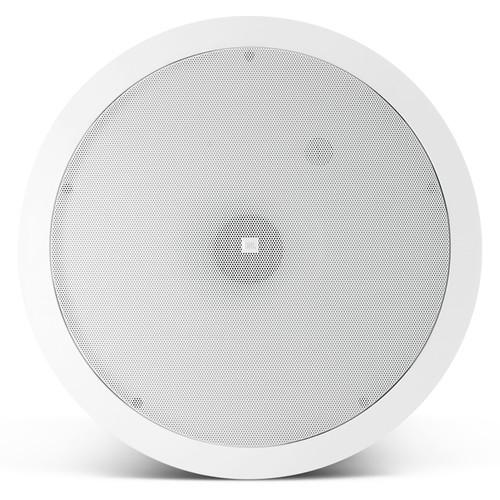

Product description Sold as a pair, the white JBL Control 19CST is a passive 8" in-ceiling installation subwoofer with a multi-tap transformer designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues ranging from boardrooms to bistros. When driven by 70V/100V power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CST is equipped with a durable 8" polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz. The Nested Chamber design and Linear Dynamics port yield extended bass response, high output, and sonically transparent acoustic low-pass properties. The removable locking connector, C-shaped support backing plate, tile support rails, cutout template, and paint shield contribute to easy installation. - Low-profile, in-ceiling installation subwoofers with paintable baffles and grilles
- Includes cutout templates and paint shields for ease of installation
- Multi-tap transformer enables use with 70V/100V constant-voltage systems
- Ideal for reinforcing full-range speakers for foreground music systems
- Discreet, minimized visual impact for boardroom, reception areas, restaurants, airports, and retail applications
- 200W continuous program power handling performance
- Durable 8" polypropylene woofer with vented pole piece for low distortion
- 42 to 200 Hz frequency range
- Nested Chamber design delivers high output from a compact enclosure, while its acoustic low-pass character enables it to augment a full-range sound system without an external crossover or separate amp channel
- Linear Dynamics port design, originally developed for JBL's concert speaker systems, produces extended and deep bass output

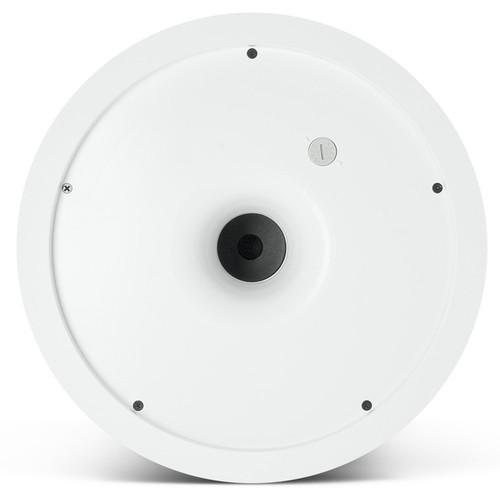

- Front-panel rotary switch selects tap setting for the 70V/100V multi-tap transformer
- Removable locking connector with screw-down terminals for input and loop-through output connections
- Enclosed terminal box provides strain relief for use with plenum-rated wire, 1/2" conduit, or flexible conduit up to 7/8" outside diameter
- Back-panel attachment loop acts as a secondary support point
In the Box JBL Control 19CST 8" 200W In-Ceiling 70V/100V Installation Subwooofers (Pair, White) 2 x C-Shaped Support Backing Plates 4 x Tile Support Rails 2 x Cutout Templates 2 x Paint Shields 2 x Removable Locking Wiring Connectors Limited 5-Year Warranty on Loudspeakers Limited 2-Year Warranty on Enclosures Brochure PDF 336.1kbsyvaeqcecquuedfzdvtutwf Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 19CST 8" 200W In-Ceiling 70V 100V Installation Subwooofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 19CST Specs | Active or Passive | Passive | | LF Driver | 8" / 20 cm polypropylene cone with pure butyl rubber surround and 1.5" / 3.8 cm voice coil on aluminum former | | Frequency Range | 42 to 200 Hz (-10 dB) | | Power Capacity | Continuous Program: 200 W
Continuous Pink Noise: 100 W | | Nominal Sensitivity | In Ceiling, Near Corner: 95 dB SPL (1 W, 1 m)
In Center of Ceiling: 89 dB SPL (1 W, 1 m) | | Nominal Coverage Angle | 180° conical coverage | | Maximum SPL | 115 dB at 1 m (in ceiling, near corner) | | Impedance | Not applicable | | Transformer Taps | Watts at 70 V: 7.5, 15, 30, 75
Watts at 100 V: 15, 30, 75 | | Input | Removable locking connector with screw-down terminals (two input terminals and two loop-thru output terminals) | | Maximum Wire Gauge | 12 AWG | | Shielded | No | | Overload Protection | None | | Enclosure Material | Backcan: Formed steel
Baffle/Rim: Medium-impact polystyrene, fire rated UL94V-0 | | Cutout Size | 12" / 30.5 cm | | Dimensions (Diam. x H) | 13.6 x 13.6" / 34.5 x 34.5 cm
12.5" / 31.8 cm front of ceiling tile to back of backcan | | Weight | 14 lb / 6.3 kg | | Safety Rating | UL 1480, UL 2043, NFPA 90, NFPA 70, S7232/UL, UL 1876, IEC 60849 / EN 60849 | | | | Package Weight | 47.0 lb | | Box Dimensions (LxWxH) | 31.0 x 17.0 x 17.0" |
