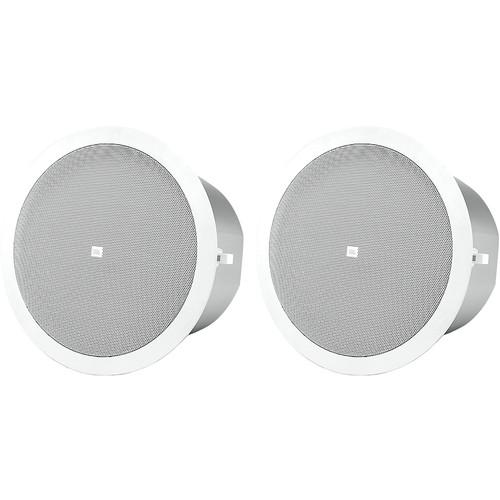

User Manual for JBL Control 24C 2-Way Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the JBL Control 24C 2-Way Ceiling Speaker
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 24C 2-Way Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The compact JBL Control 24C 2-Way Ceiling Speaker (Pair) is designed for medium volume paging and background music applications including restaurants, professional offices and retail. Installation is possible without ceiling access, and all necessary installation materials are conveniently provided. The Control 24C may be used with other High/Mid response Control Contractor Systems to achieve a more flexible system, and one capable of mixing and matching zones without separate equalization. Low frequencies may be augmented using a Control Contractor subwoofer. - Inexpensive, high-quality installation speaker for background music and paging applications
- 4" polypropylene-coated woofer
- Paintable trim and baffle for unobtrusive appearance
- 0.75" titanium-coated polyester tweeter
- Custom quick-install kit provided
In the Box JBL Control 24C 2-Way Ceiling Speaker (Pair) C-Shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard 5 Year Parts/Labor Warranty on Drivers/ 2 Year on Cabinets User Manual PDF 380.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 24C 2-Way Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 24C Specs | Active or Passive | Passive | | Frequency Response | 80 Hz - 25 kHz | | Power Capacity | 80 Watts (continuous program)
40 Watts(continuous pink noise) | | Maximum Sound Pressure Level (SPL) | 102dB @ 1m | | Nominal Sensitivity | 86dB SPL @ 1m | | Transformer Taps | No | | Impedance | 16 Ohms | | Crossover | 3.5kHz | | Shielded | No | | Low Frequency Driver | 4" (100 mm) Woofer | | High Frequency Driver | 0.75" (19mm) Tweeter | | Enclosure Material | Formed Steel | | Input Connections | Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of back can | | Environmental | Indoor only | | Dimensions | Outside Dimensions: 7.9 x 7.7" (200 x 195mm)
7.2" (184mm) (front of ceiling tile to back of the backcan) | | Weight | 6 lb (2.7 kg) each | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 26.2 x 12.2 x 9.0" |
