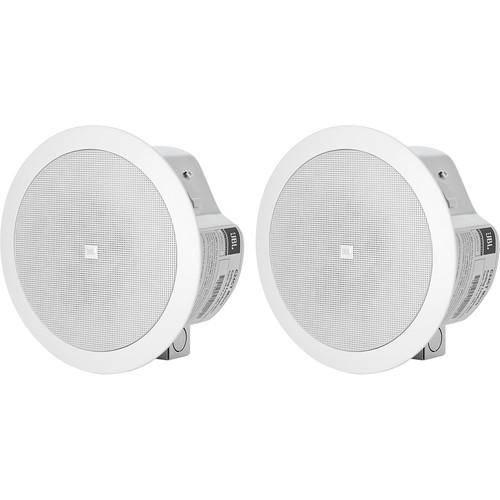

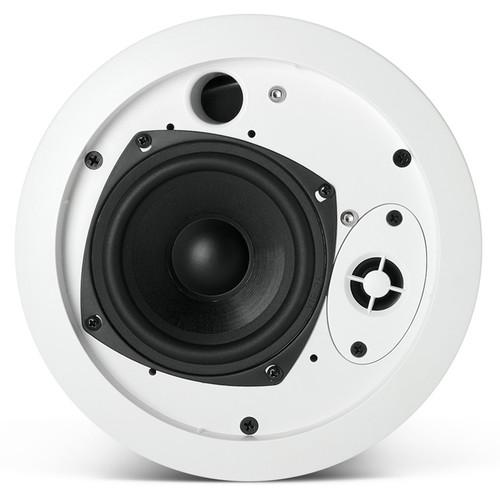

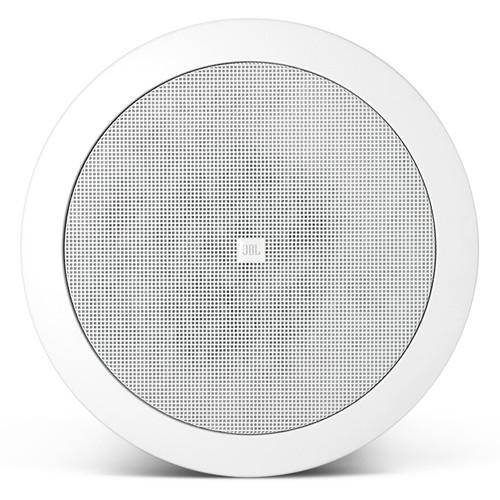

Product description Sold as a pair, the white JBL Control 24C Micro is a passive 4.5" low-profile ceiling speaker designed for voice amplification and background music reproduction in a variety of venues ranging from retail stores to restaurants. When driven by an 8-Ohm power amplifier (available separately), the Control 24C Micro's 4.5" injection-molded graphite woofer and 0.5" polycarbonate tweeter yield a frequency range of 85 Hz to 25 kHz, and a continuous program power capacity of 30W.With a 150° coverage pattern and a depth of approximately four inches, the slim 24C Micro is well suited for installation in ceilings with limited vertical space. Screw-down terminal connections, detachable grilles, C-shaped support plates, tile rails, and cutout templates contribute to easy installation. - Compact loudspeakers with grilles, backcans, and tile rails for fast installation
- Slim design for use in spaces with restricted/shallow mounting depths
- Low distortion and smooth tone, ideal for medium-volume music systems
- 30W continuous program power handling
- 4.5" injection-molded graphite woofer 1" voice coil
- 0.5" polycarbonate tweeter
- 85 Hz to 25 kHz frequency range
- Input connections via touch-proof, screw-down terminals
UPC: 050036904643 In the Box JBL Control 24C Micro 4.5" 2-Way 30W Low-Profile Ceiling Speaker (Pair, White) 2 x Grilles 2 x C-Shaped Support Backing Plates 4 x Tile Support Rails 2 x Cutout Templates Limited 5-Year Warranty on Loudspeakers Limited 2-Year Warranty on Enclosures Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 24C Micro 4.5" 2-Way 30W Low-Profile Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 24C Micro Specs | Active or Passive | Passive | | LF Driver | 4.5" / 11.5 cm Injection-Molded Graphite Woofer with 1" / 2.4 cm Voice Coil | | HF Driver | 0.5" / 1.2 cm Polycarbonate Tweeter | | Frequency Range | 85 Hz to 25 kHz (-10 dB) | | Coverage Pattern | 150° | | Power Capacity | Continuous Program Power: 30 W
Continuous Pink Noise: 15 W | | Nominal Sensitivity | 86 dB SPL at 1 m | | Maximum SPL | 98 dB at 1 m | | Nominal Impedance | Bypass Mode: 7.1 Ohms | | Crossover Frequency | 3.5 kHz | | Input | Screw-Down Terminals | | Shielded | No | | Cutout Size | 6.6" / 16.7 cm | | Construction Material | Backcan: Formed Steel
Baffle/Rim: Medium-Impact Polystyrene, Fire Rated UL94V-0 | | Dimensions (Diam. x Depth) | 7.7 x 4.2" / 19.5 x 10.6 cm (4.1" / 10.5 cm from Front of Ceiling Tile to Back of Backcan) | | Weight | 3.6 lb / 1.6 kg | | Safety Rating | UL 1480, UL 2043, NFPA 90, NFPA 70, S7232/UL, UL 1876, IEC 60849 / EN 60849 | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 25.6 x 10.6 x 7.5" |
