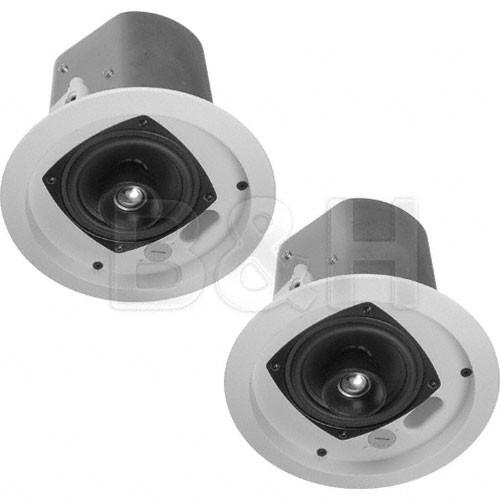

Product description The white JBL Control 24CT Ceiling Speaker features high power sound reproduction with a wide frequency response and low distortion. The 130° coverage pattern allows fewer speakers to provide consistent sound levels throughout a space.
The Control 24CT is constructed with a coaxially mounted 4" woofer with butyl rubber surround and 0.75" titanium coated diffraction-loaded tweeter. It includes a 30W multitap transformer for use in either 70V or 100V distributed-line systems. Taps are selected by a front-panel rotary switch. The transformer effectively limits the power to the speaker, so overload is not a concern.
Package includes a pair of Control 24CT speakers each with a grille, backcan and tile rails for fast installation. - 30W multi-tap transformer for 70V and 100V distributed-line systems
- 4" woofer and 0.75" titanium-coated tweeter
- Extremely wide 130° coverage
- 7.2" depth from flush ceiling
- High power, wide frequency response and low distortion
- Packaged with grille, back can and tile rails for fast installation
UPC: 050036903981 In the Box JBL Control 24CT Ceiling Speaker (White) - Pair 2 x C-Shaped Support Backing Plate 2 x Tile Support Rails (fits both 2 x 4' and 600 x 1200mm tiles) Cutout Template, Cardboard Paint Shield 2 x Removable Locking Wiring Connector 5 Year Parts/Labor Warranty on Drivers/ 2 Year on Cabinets Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 24CT Ceiling Speaker - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CONTROL 24CT Specs | Active or Passive | Passive with a multi-tap transformer for 70V or 100V systems | | Frequency Response | 80 Hz to 20 kHz | | Power Capacity | 80 Watts Continuous Program Power
40 Watts Continuous Pink Noise | | Nominal Sensitivity | 86 dB SPL @ 3.3' (1 m) | | Nominal Coverage Angle | 130° conical coverage | | Directivity | Directivity Factor (Q): 2.4 averaged 500 Hz to 4 kHz
Directivity Index (DI): 3.8 averaged 500 Hz to 4 kHz | | Maximum Sound Pressure Level (SPL) | 102 dB @ 3.3' (1 m) | | Impedance | Not applicable | | Transformer Taps | 70V: 30W, 15W, 7.5W & 3.7W taps
100V: 30W, 15W, & 7.5W taps | | Low Frequency Driver | 4" (100 mm) polypropylene-coated
1" (25.4 mm) coil on aluminum former | | High Frequency Driver | 0.75" (19 mm) titanium coated polyester | | Enclosure Material | Backcan: Formed steel
Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 | | Termination | Removable locking connector with screw-down terminals
2 input terminals and 2 loop-thru output terminals
Max. wire size 12 AWG (2.5 mm2) | | Safety Rating | In accordance with IEC60849 / EN60849
Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90,NFPA70A | | Cut-Out Size | 6.6" (168 mm) | | Dimensions (Diam. x H) | 7.7 x 7.9" (195 x 200 mm)
7.2" (184 mm) front of ceiling tile to back of backcan | | Weight | 8 lb (3.5 kg) each | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 26.1 x 11.9 x 9.3" |
