User Manual for JBL Control 25AV 5.25" 2-Way 200W Shielded Indoor Outdoor Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL Control 25AV 5.25" 2-Way 200W
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 25AV 5.25" 2-Way 200W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

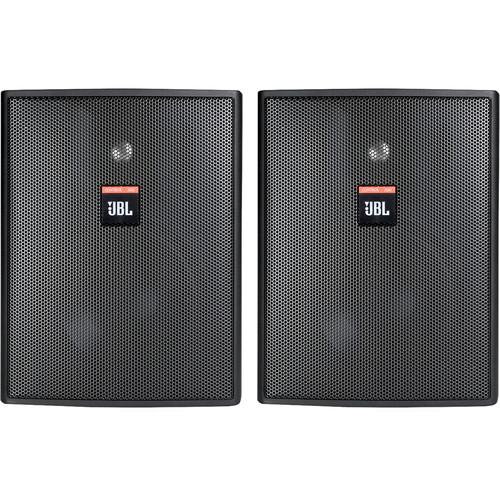

Product description Sold as a pair, the black JBL Control 25AV is a passive 5.25" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 60W transformer allows the Control 25AV to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 25AV is equipped with a durable 5.25" woofer and a 0.75" titanium-coated tweeter, yielding a frequency range of 70 Hz to 23 kHz, and a continuous program power capacity of 200W. The 12 dB/octave crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting systems and input panel covers contribute to ease of installation. - High-impact polystyrene enclosures with magnetic shielding for use near video monitors
- Included InvisiBall mounting systems are simple to install, aim easily, and provide a high degree of theft deterrence
- 100° x 100° high-frequency horn
- Low-saturation 60W transformer enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup
- 200W continuous program power handling
- Durable 5.25" polypropylene-coated woofer with WeatherEdge surround
- 0.75" titanium-coated, horn-loaded tweeter
- 70 Hz to 23 kHz frequency range (-10 dB)
- 12 dB/octave crossover network with high- and low-pass filtering
- Screw-down terminal strip—with zinc-plated copper base and nickel-plated metal screws/washers—accepts up to 9mm outside and 4mm inside open lug (#6, #8 or #10), plus bare wire (up to 12 AWG)
- Aurally transparent SonicGuard circuitry features full-range power limiting to protect network and transducers, plus an internal fuse to protect during exceptional overload conditions
UPC: 050036903301 In the Box JBL Control 25AV 5.25" 2-Way 200W Shielded Indoor/Outdoor Loudspeaker (Pair, Black) 2 x MTC-PC Input Panel Covers 2 x InvisiBall Mounting Bases 2 x InvisiBall Hex Wrenches Limited 5-Year Warranty on Loudspeakers Limited 2-Year Warranty on Enclosures Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 25AV 5.25" 2-Way 200W Shielded Indoor Outdoor Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 25AV Specs | Active or Passive | Passive | | LF Driver | 5.25" / 13.5 cm polypropylene-coated paper woofer with WeatherEdge butyl rubber surround and 1" / 2.5 cm voice coil on kapton former | | HF Driver | 0.75" / 2 cm titanium-coated PEI tweeter | | Frequency Range | 70 Hz to 23 kHz (-10 dB) | | Midrange | 130 Hz to 14 kHz (
