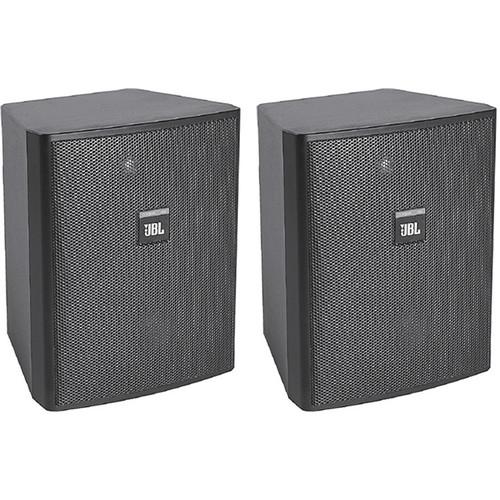

User Manual for JBL Control 25AV-LS Monitor for Fire Alarm Communication Systems Click to enlarge the picture
Contents of the user manual for the JBL Control 25AV-LS Monitor for Fire
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 25AV-LS Monitor for Fire contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The Control 25AV-LS Monitor for Fire Alarm/Communication Systems (Black, Pair) is a 2-way 200W permanent installation monitor speaker system that produces smooth, highly-detailed audio with outstanding coverage. With its consistent audio performance on both 70V and 100V distribution lines, the video-shielded Control 25AV-LS is ideal for the small club and restaurant owner in search of a monitor with the compact, unobtrusive design and ruggedness required for both indoor and outdoor use. - UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication
- Extremely Smooth Frequency Response
- Aluminum Grille with Polyester Powder Coating for Enhanced Durability
- 60W Transformer for 70V or 100V Lines, with 8 ohms Bypass
- SonicGuard Overload Protection
- 5.25" Polypropylene Coated Woofer and 0.75" Titanium Coated Horn-Load Tweeter
- Includes InvisiBall Mounting Hardware and Sealed Input Panel Cover
- Captive Screw-Down Input Terminals
UPC: 050036905275 In the Box JBL Control 25AV-LS Monitor for Fire Alarm/Communication Systems (Black, Pair) Pair of MTC-PC Input Panel Covers Invisiball Mounting Base Invisiball Hex Wrench 5 Year Warranty on Speakers Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 25AV-LS Monitor for Fire Alarm Communication Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL Control 25AV-LS Monitor for Fire Alarm Communication Systems can be downloaded in PDF format at the link stated below.
Technical parametersJBL 25AV-LS Specs | Active or Passive | Passive | | Frequency Response | 70Hz to 23kHz | | Power Capacity | 200W Continuous | | Maximum Sound Pressure Level (SPL) | Not Specified by Manufacturer | | Nominal Sensitivity | 87dB (1W/1 m) | | Impedance | 8 Ohms | | Crossover | 3kHz | | Shielded | Yes | | Low Frequency Driver | 5.25" (133mm) Polypropylene Coated Woofer | | High Frequency Driver | 0.75" (19mm) Titanium Tweeter | | Enclosure Material | High-Impact Polystyrene Enclosure | | Input Connections | Zinc-Plated Screw Down Input Terminal Strip | | Environmental | Stainless Steel Grille for Harsh Environments | | Dimensions (HxWxD) | 9.3 x 7.4 x 6.3" (236 x 186 x 159mm) | | Weight | 9 lbs (4kg) | | | | Package Weight | 21.2 lb | | Box Dimensions (LxWxH) | 15.3 x 10.5 x 9.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
