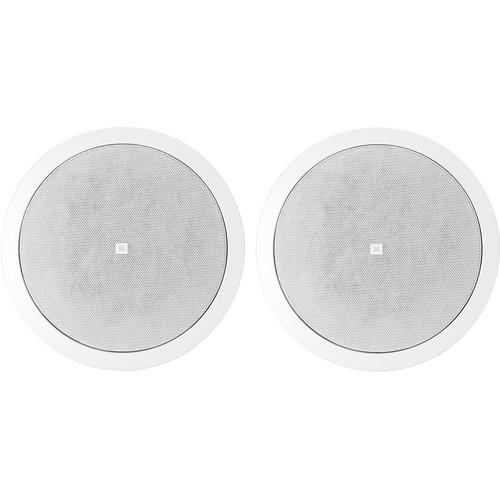

User Manual for JBL Control 26C Ceiling Speaker - Pair Click to enlarge the picture
Contents of the user manual for the JBL Control 26C Ceiling Speaker -
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 26C Ceiling Speaker - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL Control 26C is a coaxial 2-way ceiling installation speaker with a 6.5" woofer and .75" titanium-coated tweeter, featuring a high output, extended frequency reproduction, and a 110° coverage angle, designed in support of background or foreground music applications for hotels, casinos, bars, restaurants and theme park pavilions.The Control 26C is a 16 Ohm speaker, equipped with a loop-thru output connector for parallel expansion and voiding the need for use of a distributed system, which, in conjunction with the speakers' wide coverage and high output, allows for fewer speakers to be installed to achieve a good sound, and lowers installation costs. - Coaxial, 2-way 6.5" ceiling mount installation speaker with wide 110° coverage and high 150-Watt power handling
- High output, discreet and extended frequency response, appropriate for foreground or background music in casinos, hotels, restaurants and theme parks
- Wide coverage allows for optimum performance with fewer speakers, reduces installation costs
- SonicGuard overload protection allows for higher operating levels, improved overall system reliability
- 16-Ohm impedance, loop-thru connector allows for parallel speaker connection and system expansion without using constant voltage distributed system
- Humidity resistant Woofer Cone and Surround, aluminum woofer voice coil former provides extra cooling for increased long-term power handling
- Ported enclosure for optimized low-frequency reproduction
- All necessary installation materials supplied
UPC: 050036903967 In the Box JBL Control 26C - Two Way Vented Ceiling Speaker with 6.5" Woofer - Pair 2 x C-shaped Support Backing Plates 2 x Tile Support Rails 2 x Cutout Templates 2 x Paint Shields 2 x Removable Locking Wiring Connectors Limited 5-Year Warranty User Manual PDF 385.8kbfuvrbwav Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 26C Ceiling Speaker - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 26C Specs | Active or Passive | Passive | | Frequency Response | 75 Hz - 20 kHz (-10 dB) | | Power Capacity | 150 Watts Continuous Program
75 Watts Continuous Pink Noise | | Maximum Sound Pressure Level (SPL) | 107 dB SPL @ 1 m | | Nominal Sensitivity | 89 dB SPL, 1 W/1 m | | Impedance | 16 Ohms | | Crossover | Not Specified by Manufacturer | | Shielded | No | | Low-Frequency Driver | 6.5" Polypropylene-coated with 1" Voice Coil | | High-Frequency Driver | .75" Titanium-coated Polyester | | Enclosure Material | Backcan: Formed steel
baffle/rim: UL94V-O fire-rated medium-impact Polystyrene | | Input Connections | 2 x Removable locking inputs with screw-down terminals
2 x Removable locking loop-thru outputs with screw-down terminals | | Environmental | Humidity-resistant woofer with polyurethane-covered cone and butyl-rubber surround | | Dimensions | 8.3 x 9.9" / 210 x 252 mm (Height x Diameter)
7.5" / 190 mm (front of ceiling tile to rear of backcan)
8.75" / 220 mm (cutout Size) | | Weight | 7.5 lb / 3.4 kg | | Specialties | Wide 110° coverage
Humidity resistant woofer cone and surround
16-Ohm impedance, loop-thru for parallel connection | | | | Package Weight | 18.45 lb | | Box Dimensions (LxWxH) | 26.0 x 12.5 x 11.5" |
