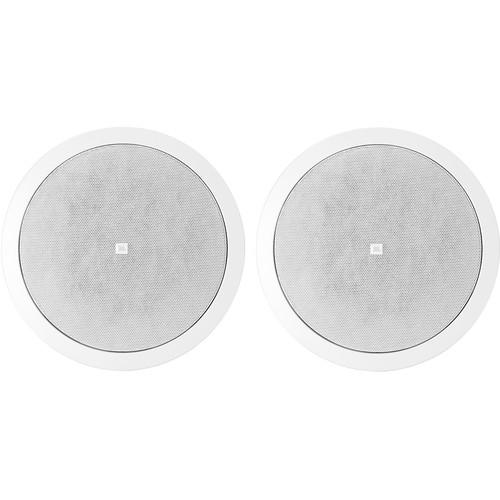

User Manual for JBL Control 26CT - Ceiling Speaker with Transformer Click to enlarge the picture
Contents of the user manual for the JBL Control 26CT - Ceiling Speaker
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 26CT - Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Capable of high-power handling and low distortion, JBL's ceiling mounted Control 26CT is ideal for upscale installs. Its performance ability ensures balanced sound throughout the listening area. The unit includes a multitap transformer for 70/100V systems.The Control 26CT offers a very broad 110° area of coverage and is designed for longer, cooler operation, which allows for greater long-term power handling. A simpler and less-expensive install is achieved due to the coverage capability of the Control 26CT. - 150 Watts power capability
- Multi-tap transformer for 70/100V systems
- 75 Hz to 20 kHz frequency range (-10 dB)
- Coaxially mounted 6.5" woofer with butyl rubber surround and 3/4" titanium coated diffraction-loaded tweeter
- High power, wide-frequency response and low distortion for high sound level capability
- Wide coverage allows for fewer speakers, reducing the cost of the installed sound system without sacrificing performance
UPC: 050036904087 In the Box JBL Control 26CT - Two Way Vented Ceiling Speaker with 6.5" Woofer for use with 70/100V Audio Distribution (Pair) 2 x Tile Support Rails 2 x Cutout Templates 2 x Paint Shields 2 x C-Shaped Support Backing Plates 2 x Removable Locking Wiring Connectors Limited 5-Year Warranty User Manual PDF 385.8kbfsryzfds Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 26CT - Ceiling Speaker with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 26CT Specs | Active or Passive | Passive | | Frequency Response | 75 Hz to 20 kHz | | Power Capacity | 150 W Program
75 W Pink Noise | | Maximum Sound Pressure Level (SPL) | 107 dB @ 3.3 ft / 1 m | | Nominal Sensitivity | 89 dB SPL, 1 W @ 3.3 ft / 1 m | | Transformer Taps | 70 V Taps: 60, 30, 15, 7.5 W
100 V Taps: 60, 30, 15 W | | Low-Frequency Driver | 6.5" / 165 mm Polypropelene-coated, 1" coil on aluminum former | | High-Frequency Driver | 3/4" / 19 mm Titanium coated polyester | | Enclosure Material | Formed steel backcan with medium impact polystyrene baffle/rim, fire rated UL94V-0 | | Input Connections | Removable locking connector with screw-down terminals
2 x input terminals and 2 x loop-thru output terminals
Max. wire 12 AWG (2.5 mm²) | | Environmental | In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per UL2043, UL1480, NFPA90, NFPA70A | | Dimensions | 8.3 x 9.9" / 210 x 252 mm
7.5" / 190 mm front of ceiling tile to back of backcan | | Weight | 7.5 lb / 3.4 kg each
CT: 10 lbs / 4.2 kg each | | | | Package Weight | 20.8 lb | | Box Dimensions (LxWxH) | 26.5 x 12.0 x 11.5" |
