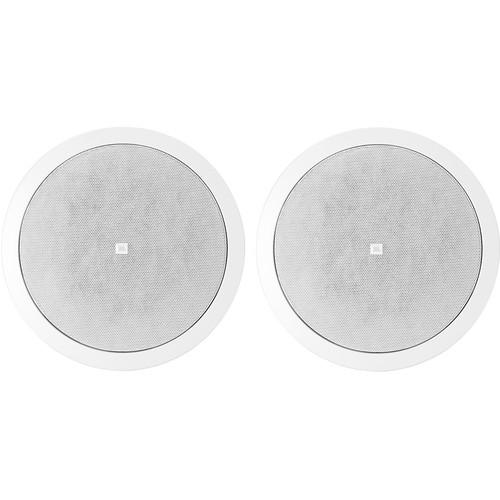

Product description The pair of JBL Control 26CT-LS Professional Ceiling Loudspeakers for Life/Safety Applications is a set of speaker assemblies designed specifically for use in fire alarm and/or emergency communication systems. The 26TCTS is built on the same platform as JBL's Control 26C and 26CT ceiling loudspeakers and is UL1480 UUMW listed for safety systems.The 150-watt continuous program power handling, 2-way coaxially mounted Control 26CT-LS loudspeaker is a compact ceiling speaker providing suitable performance in background or foreground music sound systems. The Control 26CT-LS is appropriate for use in a wide variety of applications from casinos and hotels to upscale restaurants, convention halls, and themed locations.
The 6.5" woofer features a polyurethane-coated cone and pure butyl-rubbersurround for long life, even in high-humidity environments. An aluminum voicecoil former provides extra cooling for greater long-term power handling. The coaxially mounted .75" titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides wide, even coverage of the listeningarea.
Input connection is conveniently provided on a removable locking connector, providing secure connection via screw-down terminals and allowing a system to be prewired before installing the speaker for fast snap-on convenience. Separate connector terminals are available for the input and for the loop-through wires, making it easy to jumper the speaker signal to additional speakers. The input terminal plate provides strain relief for either bare wire, plenum cable or ½ inch conduit (12 mm I.D.).
The terminal box is securely enclosed to meet safety codes. The speaker trim and grille are paintable to match any decor. A paint shield is provided for covering the drivers while painting the rim.
Installation of the Control 26CT-LS is quick and easy. The loudspeaker is packaged complete with the backcan, grille, support backing bracket, and tile rails. The entire installation can be accomplished without requiring access above the ceiling. A template is provided for marking the cutout. An included C-shaped support backing plate can be installed from below through the cutout to reinforce the top of the ceiling material.
Tile bridge rails are included, which can be screwed onto the C-plate, to extend support to the T-channel grid in suspended ceiling installations. After the speaker is fitted through the cutout, it is held securely in place via three mounting tabs, which tighten onto the C-plate, if used, or directly onto the ceiling material.
The Control 26CT-LS backcan is made of formed steel. An attachment loop is provided on the backcan for cabling to the building structure as a secondary support in seismic areas or where required by code.
The ceiling loudspeaker includes a 60W multitap transformer for use in either 70.7 or 100V distributed line systems. Taps are selected with a rotary switch conveniently located on the front panel, but protected under the grille, so that the speaker does not have to be removed to adjust tap settings.
All JBL Control Contractor loudspeakers—both ceiling speakers and surface-mount models—are designed with a similar sonic signature, allowing for mixing and matching of the various models within an application, providing a similar tonal character throughout the entire listening area.
High power handling, wide frequency response, and low distortion make the Control 26CT-LS capable for use in sound systems requiring a higher fidelity sound from ceiling loudspeakers. Their performance ability ensures accurate sound character, providing enveloping sound throughout the listening area. - High power, wide frequency response, and low distortion for high sound level capability
- Packaged with grille, backcan, and tile rails for fast installation
- Coaxially mounted 6.5" woofer with butyl rubber surround and 0.75" titanium coated diffraction-loaded tweeter
- UL1480 UUMW listed for use in fire alarm and/or emergency communication systems
In the Box JBL Control 26CT-LS Pro Ceiling Loudspeakers for Life/Safety Applications (Pair) 2 x C-Shaped Support Backing Plates 2 x Tile Support Rails 2 x Cutout Templates 2 x Paint Shields 2 x Removable Locking Wiring Connectors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 26CT-LS Pro Ceiling Loudspeakers for Life Safety Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL C26CT Specs | Frequency Range | 80 Hz to 20 kHz (-10 dB) | | Power Capacity | Continuous Program Power: 150 W
Continuous Pink Noise: 75 W | | Nominal Coverage Angle | 110° conical coverage | | Directivity Factor | Q: 5.9 averaged 500 Hz to 4 kHz | | Directivity Index | 4.6 averaged 500 Hz to 4 kHz | | Max SPL Level | 107 dB at 3.3' / 1.0 m | | Transformer Insertion Loss | Less than 0.8 dB | | Transformer Taps | 70 V: 60, 30, 15, 7.5 W
100 V: 60, 30, 15 W | | Low-Frequency Driver | 6.5" / 165.0 mm Polypropylene coated
1.0" / 25.4 mm coil on aluminum former | | High-Frequency Driver | 0.75" / 19.0 mm Titanium coated polyester | | Connection Terminals | Removable locking connector with screw down terminals
2 x Input terminals
2 x Loop-through output terminals
Max Wire: 12 AWG (2.5mm²) | | Material | Backcan: formed steel
Baffle/Rim: medium impact polystyrene
Fire Rated: UL94V-0 | | Compliance and Certification | UL1480 UUMW listed
Suitable for use in air handlingspaces per:
UL1480, UEAY, UL2043, NFPA90 & NFPA 70
S7232/UL Listed, Signaling Speaker
Transformer UL registered per UL1876
In accordance with IEC60849/EN60849 | | Exterior Dimensions | 8.3 x 9.9" / 210.0 x 252.0 mm
Front of Ceiling Tile to Back of Backcan: 7.5" / 19.0 cm | | Cutout Size | 8.7" / 220.0 mm | | Weight | 9.26 lb / 4.20 kg | | | | Package Weight | 21.75 lb | | Box Dimensions (LxWxH) | 26.0 x 11.8 x 11.8" |
