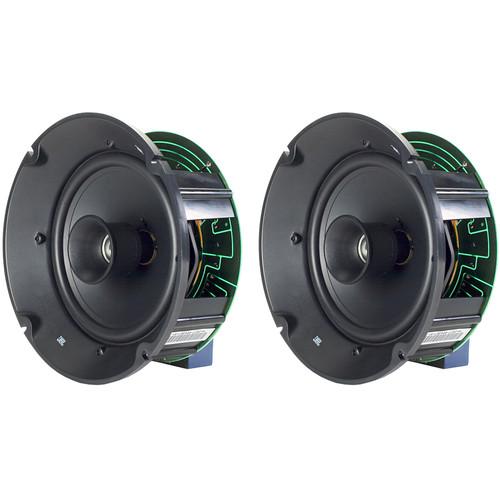

User Manual for JBL Control 26DT - Coaxial Ceiling Speaker Assembly with Transformer - Pair Click to enlarge the picture
Contents of the user manual for the JBL Control 26DT - Coaxial Ceiling
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 26DT - Coaxial Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL Control 26DT is a 6.5" coaxial ceiling installation speaker assembly, offering a 90° coverage angle, a built-in 70/100V transformer with a 60-watt power handling capacity, and a 1" titanium-coated tweeter for even dispersion and directionality.The Control 26DT assembly is designed as a substitute for standard 8" configurations, and provides even, wider-dispersion coverage, with particular HF clarity via the diffraction-loaded tweeter, for venues with medium-high ceilings. - Coaxial ceiling installation speaker assembly with built-in 70/100V multi-tap transformer and 90° coverage angle
- 6.5" woofer matches industry mechanical specifications for standard 8", fits most standard 8" backcans
- Grille or backcan mountable
- Advanced crossover network for natural sound and even coverage throughout designated listening area
- Rugged, humidity-resistant coaxial woofer with durable butyl rubber surround, titanium-coated tweeter
- High 60-watt transformer power handling, wider frequency response and lower distortion design for higher quality sound reproduction
- Wider coverage with even projection allows for fewer speakers, reduces installation cost
In the Box JBL Control 26DT - Coaxial Vented Ceiling Speaker with 6.5" Woofer for use with 70/100V Audio Distribution - Pair 2 x Locking Connector with Screw-Down Terminals Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 26DT - Coaxial Ceiling Speaker Assembly with Transformer - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 26-DT Specs | Active or Passive | Passive | | Frequency Response | 95 Hz - 18 kHz (-3 dB) | | Power Capacity | 60 Watts (transformer) | | Maximum Sound Pressure Level (SPL) | 106 dB @ 3.3 ft / 1 m | | Nominal Sensitivity | 89 dB SPL, 1 W @ 3.3 ft / 1 m | | Transformer Taps | 70 V Taps: 60, 30, 15, 7.5W
100 V Taps: 60, 30, 15W | | Impedance | 80 Ohms min. @ 247 Hz (60 Watts) | | Crossover | 3.5 kHz | | Shielded | No | | Low-Frequency Driver | 6.5" Polypropylene-coated, 1" coil on aluminum former | | High-Frequency Driver | .75" Titanium coated polyester | | Mounting | 4 screw holes at 7.6" / 194 mm diameter on center | | Input Connections | Screw-locking Barrier Strip | | Environmental | In accordance with IEC60849/EN60849 Safety Rating | | Dimensions (HxD) | 4.72 x 7.87" / 120 x 200 mm | | Weight | 4.2 lb / 91.9 kg | | Specialties | Coaxial Speaker Design
Multi-tap Transformer for 70 and 100V Systems
Fits most Backcans
90° Coverage Pattern | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 21.6 x 10.2 x 6.5" |
