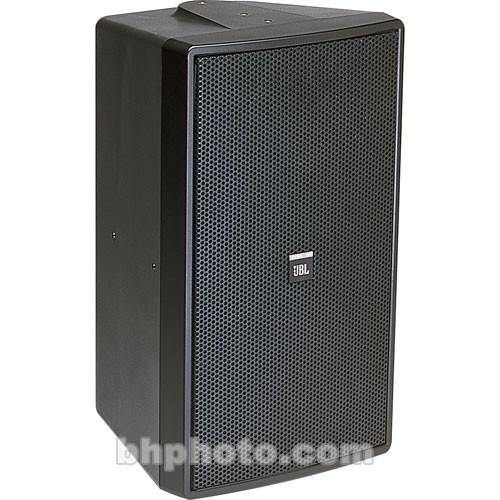

User Manual for JBL Control 29AV-1 8" 2-Way 300W Indoor Outdoor Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL Control 29AV-1 8" 2-Way 300W
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 29AV-1 8" 2-Way 300W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The black JBL Control 29AV-1 is a passive 8" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 110W transformer allows the Control 29AV-1 to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 29AV-1 is equipped with a durable 8" Kevlar-cone woofer and a 1" titanium-diaphragm compression driver, yielding a frequency response of 43 Hz to 15 kHz, and a continuous program power capacity of 300W. With a rotatable horn, the loudspeaker supports positioning for horizontal or vertical orientation. The built-in crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting system and input panel cover contributes to ease of installation. Thanks to judicious magnetic shielding, the Control 29AV-1 may be placed as close as 9" to video monitors. - High-impact polystyrene enclosure with moderate magnetic shielding for positioning as close as 9" to video monitors
- Included InvisiBall mounting system is simple to install, aims easily, and provides a high degree of theft deterrence
- 110° x 85° high-frequency coverage with a rotatable horn
- Low-saturation 110W transformer with low insertion loss enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup
- 300W continuous program power handling
- Durable 8" woofer with Kevlar cone and pure butyl surround
- 1" compression driver with pure titanium diaphragm and diamond surround
- 43 Hz to 15 kHz frequency response (
|
Upload User Manual
Have you got an user manual for the JBL Control 29AV-1 8" 2-Way 300W Indoor Outdoor Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 29AV-1 Specs | Active or Passive | Passive | | LF Driver | 8" / 20 cm Kevlar cone with pure butyl rubber surround and 2" / 5 cm voice coil on fiberglass former | | HF Driver | 1" / 2.5 cm compression driver with pure titanium diaphragm and patented JBL diamond surround | | Frequency Range | 37 Hz to 18 kHz (-10 dB) | | Frequency Response | 43 Hz to 15 kHz (
