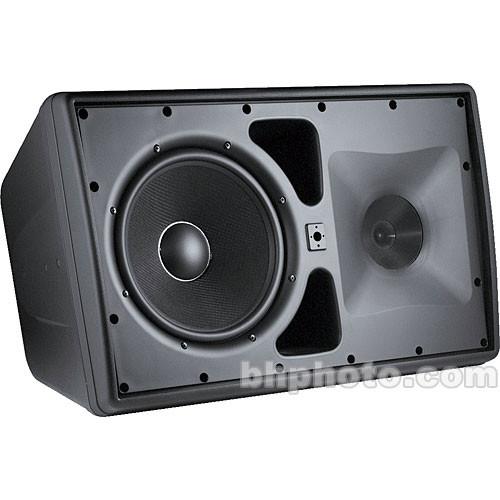

Product description The JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single) is a high-output, 3-way indoor/outdoor surface mount installation speaker, with a 500W continuous program power handling capacity, extended MF and HF coverage for either horizontal or vertical placement, a 70V/100V transformer, and a durable, weather-resistant enclosure. JBL's proprietary Invisiball mounting system allows for quick, simplified, precise placement and positioning of the speaker. - High output 3-way indoor/outdoor surface mount speaker with 500W continuous program power capacity and all-weather enclosure
- Durable 10" Fiberglass/Kevlar woofer cone, 1" tweeter with Titanium diaphragm
- 5" symmetrical mid-high frequency horn with anodized aluminum cone allows for horizontal or vertical speaker mounting
- Extended bandwidth, balanced frequency reproduction, 120° horizontal and 110° vertical HF coverage angles
- 150W transformer for 70V or 100V lines, 4 Ohms Thru/Bypass; 150W, 75W, 38W, 19W (70V only)transformer taps for 70/100V operation
- WeatherMax Mil Spec outdoor-capable design for enclosure, Thermoset composite-covered steel grill with WeatherMax foam backing; accepts wide variety of paint types to match surrounding decor
- Transparent, virtually inaudible SonicGuard overload protection
- Proprietary JBL Invisiball Mounting kit for simplified surface mount installation and positioning, sealed protective cover for speaker wire terminals
- 10 additional 6mm attachment mounts for ceiling or U-mount suspension
UPC: 050036903400 In the Box JBL Control 30 3-Way Indoor/Outdoor Loudspeaker (Single) MTC-PC2 Input Panel Cover Invisiball Mounting Base Invisiball Hex Wrench 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 30 3-Way Indoor Outdoor Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 30 Specs | Active or Passive | Passive | | Frequency Response | 38 Hz - 17 kHz (-10dB)
40 Hz - 16 kHz (+/-3dB) | | Power Capacity | 500 Watts continuous program power(100 hrs.)
250 Watts continuous pink noise(100 hrs.) | | Maximum Sound Pressure Level (SPL) | 123dB @1m (Short Term)
117dB @1m (Long Term) | | Nominal Sensitivity | 93dB/1W @1m | | Impedance | 4 Ohms | | Crossover | 3rd order Low Pass LF
2nd order High Pass/3rd order Low Pass MF
3rd order High Pass HF | | Shielded | No | | Low Frequency Driver | 10" Fiberglass/Kevlar w/2" Voice Coil
5" Anodized Aluminum Cone w/1" Voice Coil | | High Frequency Driver | 1" Compression Diver w/pure Titanium Diaphragm | | Enclosure Material | High Impact PolyStyrene(HIPS) w/10% glass fill
5mm internal foamed polyurethane secondary mold | | Input Connections | 1 x Screwdown Terminal Strip | | Environmental | IEC 529 IP X-5, exceeds Mil Spec 810 for humidity, salt spray, temperature and UV
Passes Mil Std 202F for salt spray | | Dimensions | 23.3 x 14.6 x 13.5" (593 x 372 x 345mm) | | Weight | 42 lb (18.9 kg) | | Specialties | 3-Way Indoor/Outdoor Speaker
Invisiball Mounting Base
150W Transformer for 70V/100V Taps
WeatherMax Multi-Layer Foam Grill Backing
SonicGuard Overload Protection | | | | Package Weight | 54.0 lb | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 18.0" |
