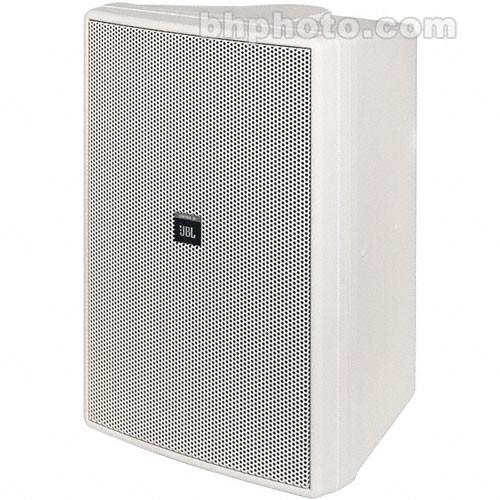

Product description Designed for both indoor and outdoor applications, the Three-Way Control 30 is the largest of JBL's indoor/outdoor Control Contractor-Series speakers. Ideal for theme parks, health clubs, under balcony, parks and small clubs, the Control 30 offers a variety of high-performance features including: patent-pending cabinet manufacturing techniques, a top-quality 70V/100V line-distribution transformer, a symmetrical mid/high-frequency horn which allows for vertical or horizontal mounting. Weather protection is maximized using the WeatherMax multi-layer foam grille which prevents water incursion, nickel-zinc rust-resistant terminals, a fiberglass and Kevlar composite woofer cone, a pure titanium high-frequency horn driver, and pure butyl rubber cone surround. Additionally, the compact design and ease of mounting using the InvisiBall install system make the Control 30 ideal for low-profile under-balcony installs. InvisiBall adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis and all adjustments are made from behind the logo badge without having to remove the grille. - 500 Watts power capability
- 150 Watt transformer for 70V or 100V lines, with 4-Ohm thru.
- Fully outdoor-capable design, featuring WeatherMax
- 10" (250mm) fiberglass/Kevlar cone LF woofer, with neodymium magnet coaxial 5" (125mm) anodized aluminum cone MR, and 1" (25mm) titanium diaphragm compression driver.
- Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
- Outdoor-rated, sealed input-panel cover and screw-down input terminals
- SonicGuard overload protection
- Extended bandwidth, extremely smooth frequency response.
UPC: 050036903417 In the Box JBL Control 30 Three-Way Passive Indoor/Outdoor Monitor Speaker for use with 70/100V Audio Distribution in White Enclosure - (Single) 1 Piece MTC-PC2 Input-Panel Cover InvisiBall Mounting Base 6 x 305 mm InvisiBall Hex Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 30 Three-Way Passive Indoor Outdoor Monitor Speaker for use with 70 100V Audio Distribution in White Enclosure - in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 30 Specs | Active or Passive | Passive | | Frequency Response | 40 Hz to 16 kHz (+/- 3 dB) | | Power Capacity | 500 Watts | | Maximum Sound Pressure Level (SPL) | Short-Term: 123 dB; Long-Term: 117 dB | | Nominal Sensitivity | 93 dB, 1 W @ 1 m (3.3 ft) | | Impedance | 4 Ohms | | Crossover | 3rd-order Low Pass LF, 2nd-order High Pass/3rd-order Low Pass MF, 3rd-order High Pass, HF, plus conjugate shaping circuitry | | Shielded | Not applicable | | Low Frequency Driver | 10" (250 mm) fiberglass/Kevlar cone with pure butyl rubber surround, 2" (50 mm) voice coil on fiberglass former, neodymium magnet | | Mid Frequency Driver | 5" (125 mm) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 1" (25 mm) voice coil on fiberglass former | | High Frequency Driver | 1" (25 mm) compression driver, pure titanium diaphragm with patented JBL diamond surround | | Enclosure Material | HIPS (High Impact Polystyrene) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold | | Input Connections | Screw-down terminal strip, zinc-plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8, or #10), plus bare wire (up to 12 AWG/2.5 mm | | Environmental | IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray | | Dimensions | 23.3 x 14.6 x 13.5" (593 x 372 x 345 mm) | | Weight | 42 lb (18.9 kg) each | | Specialties | Isolation transformer for 70.7 V/100 V distributed-line sound systems | | | | Package Weight | 53.5 lb | | Box Dimensions (LxWxH) | 27.0 x 18.5 x 18.0" |
