User Manual for JBL Control 322C 12" 2-Way 400W Coaxial 8-Ohm Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the JBL Control 322C 12" 2-Way 400W
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 322C 12" 2-Way 400W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

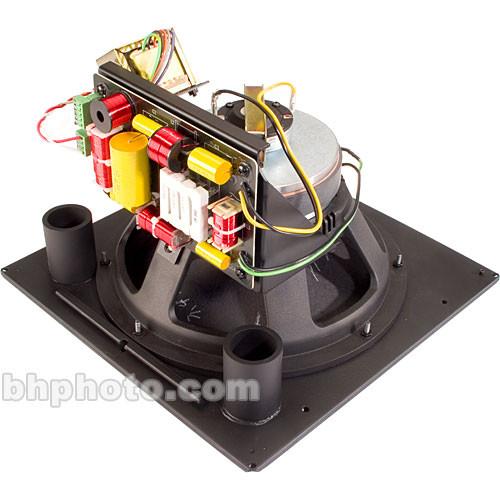

Product description The JBL Control 322C is a passive 12" coaxial ceiling speaker designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 400W (1600W peak). The Control 322C is equipped with a durable 12" Kevlar-reinforced cone and a medium-format compression driver, yielding an extended frequency response of 48 Hz to 19 kHz. The cone, which also serves as a waveguide, results in reliable 90° broadband coverage while the built-in crossover network ensures proper frequency distribution to the speaker components. A removable locking connector with screw-down terminals ensures simple wiring for the input and loop output. - Coaxial ceiling speaker with pre-attached ported baffle
- For use with 8-Ohm power amplifiers
- Long-term power handling of 400W (1600W peak)
- Durable 12" Kevlar-reinforced cone serves as a waveguide for high frequencies
- Metal throat transitions smoothly to the horn to eliminate high-frequency beaming
- High-temperature 3" voice coil
- Medium-format compression driver features a radial slot phase plug for a smooth, extended high-frequency response, along with a neodymium magnet for low installation weight
- Consistent 90° coverage on a broadband basis
- Built-in crossover network with 18 dB/octave high-pass filter and 12 dB/octave low-pass filter
- Integrated EZRail temporarily holds one side of the speaker baffle in place until the installer can affix the baffle to the backcan with screws
- Removable multi-pin locking connector with secure screw-down terminals allows pre-wiring of inputs for easy clip-on convenience during installation
- Compatible with MTC-300SG12 grille, and MTC-300BB12 backbox (both available separately)
In the Box JBL Control 322C 12" 2-Way 400W Coaxial 8-Ohm Ceiling Speaker Limited 5-Year Warranty on Loudspeaker Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 322C 12" 2-Way 400W Coaxial 8-Ohm Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 322C Specs | Active or Passive | Passive | | LF Driver | 12" / 30 cm Woofer with Kevlar-Reinforced Cone and 3" / 7.5 cm Voice Coil | | HF Driver | JBL 2407H Medium-Format Compression Driver with Neodymium Magnet and 1.5" / 3.7 cm Voice Coil | | Frequency Range | 32 Hz to 20 kHz (-10 dB) | | Frequency Response | 48 Hz to 19 kHz (
