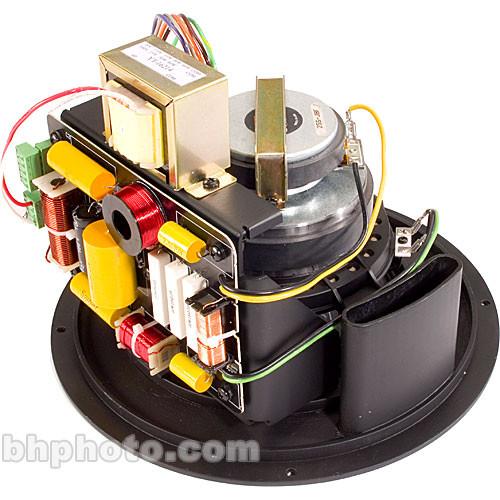

User Manual for JBL Control 328C 8" 2-Way 250W Coaxial Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the JBL Control 328C 8" 2-Way 250W
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 328C 8" 2-Way 250W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL Control 328C is a passive 8" coaxial ceiling speaker designed for voice amplification and foreground music reproduction in waiting rooms, offices, retail stores, and restaurants. When driven by an 8-Ohm power amplifier (available separately), this 2-way speaker provides a long-term power capacity of 250W (1000W peak). The Control 328C is equipped with a durable 8" Kevlar-reinforced cone and a titanium-diaphragm compression driver, yielding an extended frequency response of 60 Hz to 16 kHz. The cone and pre-attached baffle serve as a high-frequency waveguide, which results in reliable 120° broadband coverage while the built-in crossover network ensures proper frequency distribution to the speaker components. A removable locking connector with screw-down terminals ensures simple wiring for the input and loop output. - Coaxial ceiling speaker with pre-attached ported baffle
- For use with 8-Ohm power amplifiers
- Long-term power handling of 250W (1000W peak)
- Durable 8" Kevlar-reinforced cone with 2" voice coil
- Low-frequency cone and shaped mounting baffle perform as a true 12" diameter waveguide for the high frequencies
- Metal throat transitions smoothly to the horn to eliminate high-frequency beaming
- High-temperature voice coil
- High-frequency driver features a pure titanium diaphragm for high sensitivity and long life, a diamond surround for resonance control, and FerroFluid for increased power handling
- Consistent 120° coverage on a broadband basis
- Built-in crossover network with 18 dB/octave high-pass filter and 12 dB/octave low-pass filter
- Removable multi-pin locking connector with secure screw-down terminals allows pre-wiring of inputs for easy clip-on convenience during installation
- Compatible with MTC-RG6/8 and MTC-SG6/8 grilles, and MTC-300BB8 backbox (all available separately)
In the Box JBL Control 328C 8" 2-Way 250W Coaxial Ceiling Speaker Limited 5-Year Warranty on Loudspeaker Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 328C 8" 2-Way 250W Coaxial Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 328C Specs | Active or Passive | Passive | | LF Driver | 8" / 20 cm Woofer with Kevlar-Reinforced Cone and 2" / 5 cm Voice Coil | | HF Driver | JBL 2412H-1 Compression Driver with 1" / 2.5 cm Voice Coil | | Frequency Range | 45 Hz to 18 kHz (-10 dB) | | Frequency Response | 60 Hz to 16 kHz (
