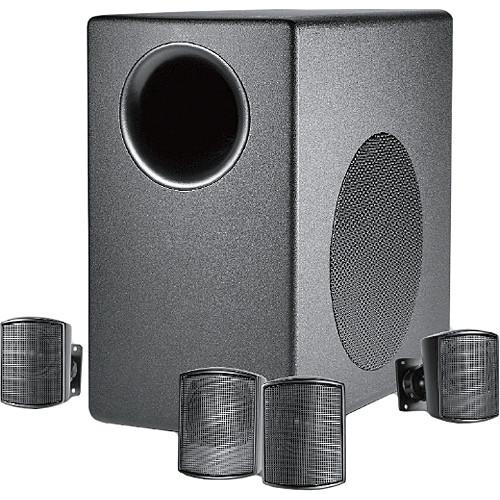

Product description The JBL Control 50 Pack is a professional-quality speaker system that includes a set of 4 Control 52 loudspeakers and a Control 50S/T subwoofer.
Each speaker has a 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance. The copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability, while the copper-capped pole piece provides consistent impedance and extended HF response. The speaker can work with 70/100V distributed lines and low impedance systems for terrific versatility, and the included wall mounting bracket lets you angle the speaker up to 45° off-axis.
The Control 50S/T subwoofer has a slim, unobtrusive cabinet that contains an 8" long-excursion driver with a high-mass cone and a 4-layer copper voice coil for extended low frequency response and high motor strength. The aluminum former provides excellent transient response, while a rubber half roll surround provides enhanced bass performance.
The subwoofer has power handling capability of 150W of continuous power. It has selectable 70/100V output for distributed lines, and also has low impedance operation. The subwoofer can be paired with 2 or 4 of the satellite speakers, depending on your needs. Mounting brackets are included for attaching the subwoofer to a wall. Speakers - Stylish and compact enclosure
- Can be mixed and matched with Contractor 40 series ceiling speakers
- 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance
- Copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability
- Copper-capped pole piece provides consistent impedance and extended HF response
- Works with 70/100V distributed lines and low impedance systems for terrific versatility
- Included wall mounting bracket lets you angle the speaker up to 45° off-axis
Subwoofer - Sleek, stylish design fits into a wide variety of decors
- Durable plywood construction with MDF port and terminal panels and a zinc-plated metal grille
- Large 8" long-excursion woofer with a high-mass cone, 4-layer copper voice coil, aluminum former, and rubber half roll surround for exceptional bass performance
- 150W of continuous power handling capability for a strong performance
- Selectable 70/100V distributed line outputs, as well as low impedance operation
- Can be used with 2 or 4 satellites for versatility
- Can mix and match with Control Contractor 40 in-ceiling models
- Wall mounting hardware included
In the Box JBL Control 50 Pack Loudspeaker System with Subwoofer (White) Control 50S/T 8" Subwoofer (White, Pair) aqsvdcqrtwbesyyrtvvdrcwwz 4 x Control 52 Surface-Mount Satellite Loudspeaker (Pair, White) Mounting Hardware 5-Year Limited Warranty Brochure PDF 377kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 50 Pack Loudspeaker System with Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL JBL Control 50 Pack Specs | | | Driver | 2.5" (60mm) Polypropylene Cone with Butyl Rubber Surround, Copper-Clad Aluminum Voice Coil, and Vented Nomex Former | | Frequency Response | 140Hz - 20kHz (-10dB) | | Power Capacity | 50W Continuous Program Power (2 Hours)
25W Continuous Pink Noise (2 Hours)
30W Continuous Program Power (100 Hours)
15W Continuous Pink Noise (100 Hours) | | Sensitivity | 85dB (4.0V/1 m = 1W)
82dB (2.83V, 1 m) | | SPL | 94dB, Average
100dB Peak | | Connectors | Removable Locking 2-pin Connector with Screw-Down Terminals | | Enclosure | High-Impact Polystyrene with Painted Zinc-Plated Metal Grille | | Dimensions (HxWxD) | 4.5 x 3.3 x 3.75" (115 x 84 x 96mm) | | Weight | 1.5 lbs (0.7kg) | | | | Driver | 8" (200mm) Polypropylene Cone with Butyl Rubber Surround, 1.5" 4-Layer Copper-Clad Voice Coil, and Vented Aluminum Former | | Frequency Range | 32-299Hz (-10dB) | | Impedance | 8 Ohms (Bypass/Thru Mode) | | Maximum Power Handling | 300W Continuous (Program, 2 Hours)
150W Continuous (Pink Noise, 2 Hours)
200W Continuous (Program, 100 Hours)
100W Continuous (Pink Noise, 100 Hours) | | Maximum Sound Pressure Level (SPL) | 115dB Average, 121dB Peak (Corner)
109dB Average, 115dB Peak (Center) | | Controls and Indicators | 1 x Volume Control | | Connectors | 6 x Removable Locking 2-Pin Connectors with Screw-Down Terminals | | Shielded | No | | Enclosure Material | Plywood and MDF Cabinet with Zinc-Plated Metal Grille | | Dimensions (HxWxD) | 14 x 15.4 x 8" (356 x 391 x 203mm) | | Weight | 20 lbs (9kg) | | | | Package Weight | 34.0 lb | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 11.0" |
