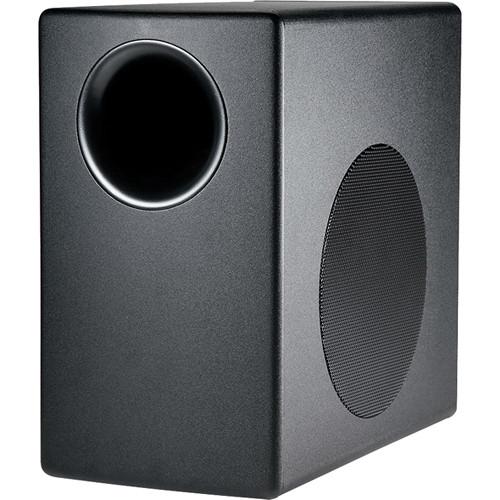

User Manual for JBL Control 50S T 8" Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL Control 50S T 8" Subwoofer
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 50S T 8" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The pair of black Control 50S/T 8" Subwoofers from JBL are professional-quality subwoofers intended for use in commercial and small venue installation applications. Each subwoofer cabinet contains an 8" long-excursion driver with a high-mass cone and a 4-layer copper voice coil for extended low frequency response and high motor strength. The aluminum former provides excellent transient response, while a rubber half roll surround provides enhanced bass performance.Each subwoofer has a power handling capability of 150W of continuous power. And each has a selectable 70/100V output for distributed lines and feature low impedance operation. Mounting brackets are included for attaching the subwoofers to a wall. - Features:
-
- Full bandwidth 32 Hz – 20 kHz high fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Available in black or white
In the Box JBL Control 50S/T 8" Subwoofer (Black, Pair) Wall Bracket (Speaker and Wall Parts) 4 x M6 Screws 6 x 2-pin Locking Connections Terminal Cover M6 Screw for Safety Lanyard Attachment 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 50S T 8" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 50S/T Specs | Driver | 8" (200mm) Polyproylene Cone with Butyl Rubber Surround, 1.5" 4-Layer Copper-Clad Voice Coil, and Vented Aluminum Former | | Frequency Range | 32-299Hz (-10dB) | | Impedance | 8 Ohms (Bypass/Thru Mode) | | Maximum Power Handling | 300W Continuous (Program, 2 Hours)
150W Continuous (Pink Noise, 2 Hours)
200W Continuous (Program, 100 Hours)
100W Continuous (Pink Noise, 100 Hours) | | Maximum Sound Pressure Level (SPL) | 115dB Average, 121dB Peak (Corner)
109dB Average, 115dB Peak (Center) | | Controls and Indicators | 1 x Volume Control | | Connectors | 6 x Removable Locking 2-Pin Connectors with Screw-Down Terminals | | Shielded | No | | Enclosure Material | Plywood and MDF Cabinet with Zinc-Plated Metal Grille | | Dimensions (HxWxD) | 14 x 15.4 x 8" (356 x 391 x 203mm) | | Weight | 20 lbs (9kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 18.0 x 17.0 x 11.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
