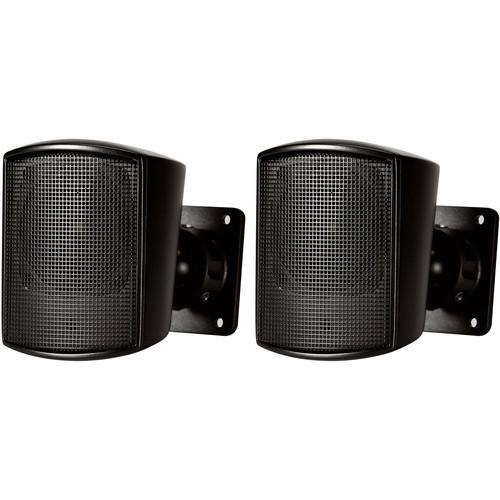

User Manual for JBL Control 52 Surface-Mount Satellite Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL Control 52 Surface-Mount Satellite Loudspeaker
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 52 Surface-Mount Satellite Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Sold as a pair, the white Control 52 from JBL is a stylish installation loudspeaker that produces high-quality audio from a compact enclosure. The speaker is ideal for use with the C50 subwoofer, and can be set up with 2 or 4 speakers per system. The loudspeaker can also be mixed and matched with Contractor 40 series ceiling speakers.
The speaker has a 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance. The copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability, while the copper-capped pole piece provides consistent impedance and extended HF response. The speaker can work with 70/100V distributed lines and low impedance systems for terrific versatility, and the included wall mounting bracket lets you angle the speaker up to 45° off-axis. - Stylish and compact enclosure
- Ideal for use with the C50 subwoofer, and can be set up with 2 or 4 speakers per system
- Can be mixed and matched with Contractor 40 series ceiling speakers
- 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance
- Copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability
- Copper-capped pole piece provides consistent impedance and extended HF response
- Works with 70/100V distributed lines and low impedance systems for terrific versatility
- Included wall mounting bracket lets you angle the speaker up to 45° off-axis
In the Box JBL Control 52 Surface-Mount Satellite Loudspeaker (Pair, White) Wall Mounting Bracket 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 52 Surface-Mount Satellite Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 52 Specs | Driver | 2.5" (60mm) Polypropylene Cone with Butyl Rubber Surround, Copper-Clad Aluminum Voice Coil, and Vented Nomex Former | | Frequency Response | 140Hz - 20kHz (-10dB) | | Power Capacity | 50W Continuous Program Power (2 Hours)
25W Continuous Pink Noise (2 Hours)
30W Continuous Program Power (100 Hours)
15W Continuous Pink Noise (100 Hours) | | Sensitivity | 85dB (4.0V/1 m = 1W)
82dB (2.83V, 1 m) | | SPL | 94dB, Average
100dB Peak | | Connectors | Removable Locking 2-pin Connector with Screw-Down Terminals | | Enclosure | High-Impact Polystyrene
Painted Zinc-Plated Metal Grille | | Dimensions (HxWxD) | 4.5 x 3.3 x 3.75" (115 x 84 x 96mm) | | Weight | 1.5 lbs (0.7kg) | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 10.9 x 6.1 x 4.1" |
