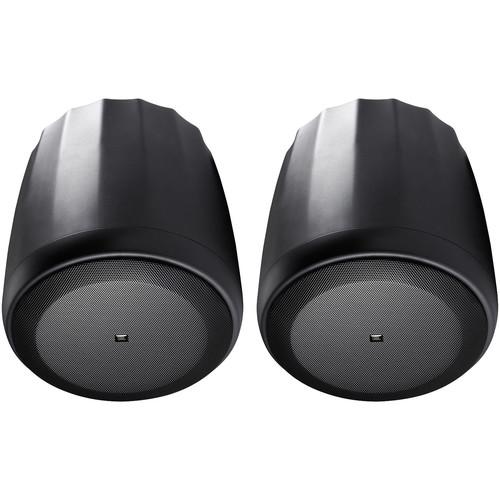

Product description The black Control 60PS/T Pendant Subwoofer with Crossover from JBL is a pair of subwoofers featuring low distortion 150W power handling, and an 8" low frequency driver with a butyl rubber surround for well-damped, tight sound quality and long-term reliability, with a polypropylene-coated cone for humidity protection. The high-temperature 2" voice coil and low-mass fiberglass coil former ensure good bass transient response and stability under high power, high duty-cycle working conditions. The Control 60PS/T provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications.
The Control 60PS/T may be driven by itself, or with other subwoofers, on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides high-passed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a full-range, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover is best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response.
A 100W multi-tap, wide-bandwidth, low-saturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system, or as a direct low-impedance 8 ohms speaker. If satellite speakers are used on the 70V/100V settings, the satellite speakers should be low-impedance (8 - 16 ohms each). A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals when using the speaker outdoors. - High-impact, 150W direct radiating subwoofer with built-in crossover for up to four satellite speakers
- 8" Long-excursion driver and 2" voice coil
- 8 ohms and 150 W, or 70-100V and 100 W operation
- Hanging hardware with 15' galvanized steel cable, spring-clips for clipping onto loudspeaker, and Gripple-brand adjustable-height cable fasteners
- Speaker and hanging cable system are UL listed
UPC: 050036904889 In the Box JBL Control 60PS/T Pendant Subwoofer with Crossover (Pair, Black) 2 x Suspension Cable Systems 6 x Locking 2-Pin Euroblock Connectors 6 x Rubber Cover Boots for Euroblock Connectors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 60PS T Pendant Subwoofer with Crossover in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL C60 Specs | Frequency Range | 42 - 350 Hz @ -10 dB | | Frequency Response | 55 - 125 Hz @ ±3 dB | | Nominal Sensitivity | 88 dB, 2.83 V / 1 m | | Maximum SPL | Average: 107 dB @ 3.3' (1 m)
Peak: 113 dB | | Rated Impedance | 8 ohms | | Transformer Taps | 110 W, 55 W, 30 W (and 15 W @ 70 V) | | Transformer Insertion Loss | 0.98 dB @ 15 W
0.99 dB @ 30 W
0.94 dB @ 55 W
1.10 dB @ 110 W | | Connectors | 2 x 2-pin Euroblock terminal, input
2 x 2-pin Euroblock terminal, input loop-out output
2 x 2-pin Euroblock terminal, satellite hookup | | Transducer | 8" (200 mm) driver
2" (50 mm) voice coil | | Suspension | 15' (4.5 m) long, 0.2 cm (2 mm) high-tensile galvanized steel wire rope | | Suspension Support | 99 lb (45 kg), SWL rating | | Power Capacity | Continuous Program Power: 300 W, 100 hours
Continuous Pink Noise: 150 W, 100 hours | | Material | Enclosure: High impact polystyrene
Driver: Polypropylene-coated paper cone with butyl rubber surround
Voice-coil: High-temperature copper, vented fiberglass resin voice coil former | | Grille | Zinc-plated steel grille with powder-coat finish, foam backing
Grille and grille backing are removable for painting | | Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV
IP44 capability per IEC 529 - splash-proof rating | | Compliance | IEC60849/EN60849
Speaker: UL1480 (UEAY)
Transformer: UL1876
Suspension System: UL1598 & UL2239, TUV, CSA Class 3426-01 & Class 3426-81
Cable Fasteners: UL1598 & UL2239, TUV, CSA Class 3426-01 & Class 3426-81 | | Dimensions | To top of cabinet: 13.1 x 13.5" (333 x 344 mm)
To top of suspension bracket: 13.1 x 14.5" (333 x 369 mm) | | Weight | 16.8 lb (7.6 kg) | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 26.5 x 16.0 x 14.5" |
