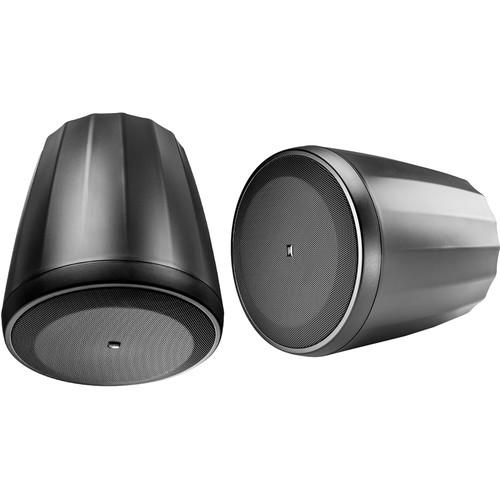

Product description The black Control 64P/T from JBL is a pendant loudspeaker that provides full-range audio in a compact design well suited for retail, restaurants, hotels, casinos, fitness centers and more. It features a 4.0" full-range driver that delivers high-quality audio with a wide frequency response, ideal for music or speech applications. A full grille protects the drivers and offers a sleek look. The 8-Ohm speaker provides 120° of consistent conical coverage, offers a 100W (continuous) power handling capability, and is compatible with a variety of installation sound systems. The unit also has a 30W multi-tap transformer for professional installs. The Control 64P/T ships with two suspension cables systems, two 2-pin removable locking Euro-block connectors, and two rubber covers for Euro-block connectors. -
- 4.0" / 100 mm full-range driver with polypropylene-coated cone and 0.8" / 20 mm high temperature voice coil
- Hanging hardware with 15' / 4.5 m galvanized steel cable and easy to adjust clamp
- Stylish design
- UL listed (speaker and hanging cable system)
- 8 Ohms and 70V/100V operation
UPC: 691991004230 In the Box JBL Control 64P/T Full-Range Pendant Speaker (Black, Pair) 2 x Suspension Cable Systems 2 x 2-Pin Removable Locking Euro-Block Connectors 2 x Rubber Covers for Euro-Block Connectors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 64P T Full-Range Pendant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL C64P/T Specs | Frequency Response | 65 Hz - 15 kHz, (-10 dB) | | Frequency Range | 85 Hz - 14 kHz, (±3 dB) | | Transducer | Driver: 4.0" / 101.6 mm polypropylene-coated paper with cloth surround, 0.8" / 20 mm copper voice coil | | Power Capacity | 100 W continuous program (2 hrs)
50 W (200 W peak), continuous pink noise (2 hrs)
40 W (160 W peak) continuous pink noise (100 hrs) | | Maximum Input Voltage | 18.2 V RMS (2 hrs), 36.4 V peak | | Nominal Sensitivity | 88 dB | | Coverage Angle | 120° (averaged 1 kHz to 4 kHz) | | Directivity | 6.2 | | Directivity Index | 7.3 dB (averaged 1 kHz - 16 kHz) | | Maximum SPL | 105 dB continuous pink noise, 111 dB peak @ 1 m | | Rated Impedance | 8 Ohms | | Transformer Taps | 70 V: 30 W, 15 W, 7.5 W, and 3.7 W
100 V: 30 W, 15 W, and 7.5 W | | Transformer Insertion Loss | 0.94 dB @ 3.7 W, 0.89 dB @ 7.5 W, 0.83 dB @ 15 W, 0.94 dB @ 30 W | | Enclosure | Enclosure Material: High-impact polystyrene
Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating
Termination: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (0.10" / 2.50 mm). Rubber terminal covers included
Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 15' / 4.5 m long, 0.077" / 2 mm high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 99.0 lb / 44.9 kg)
Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81 | | Dimensions | 9.3 x 10.2" / 234 x 259 mm (diameter x height to top of cabinet)
11.0" / 279 mm to top of suspension bracket | | Weight | 5.2 lb / 2.4 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 20.8 x 13.2 x 10.8" |
