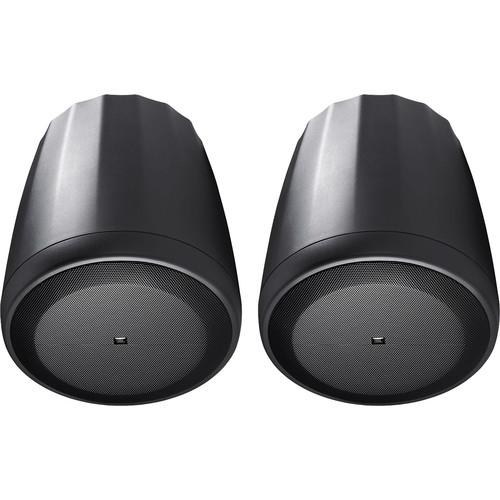

User Manual for JBL Control 65P T Full-Range Satellite Pendant Speaker Click to enlarge the picture
Contents of the user manual for the JBL Control 65P T Full-Range Satellite
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Control 65P T Full-Range Satellite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The black Control 65P/T from JBL is a satellite pendant speaker that provides full-range audio in a compact design. It features a 5.25" woofer and a silk-dome tweeter that deliver high-quality audio with a wide frequency response, ideal for music or speech applications. A full grille protects the drivers and gives the speaker a sleek look.
The speaker has JBL's exclusive Radiation Boundary Integration (RBI) technology to provide 120° of consistent conical coverage. It has a 75W power handling capability and an 8 ohm impedance for compatibility with a variety of installation sound systems. It also has a 60W multi-tap transformer for professional installs. - High-quality audio in a compact design
- The 5.25" woofer and a silk-dome tweeter deliver full-range audio with a wide frequency response, ideal for music or speech applications
- Full grille protects the driver and gives the speaker a sleek look
- JBL's exclusive Radiation Boundary Integration (RBI) technology provides 120° of consistent conical coverage
- 75W power handling capability and an 8 ohm impedance for compatibility with a variety of installation sound systems
- 60W multi-tap transformer
UPC: 050036903851 In the Box JBL Control 65P/T Full-Range Satellite Pendant Speaker (Black, Pair) Speaker Grille 5-Year Limited Warranty Brochure PDF 1008.8kbucwwtfctwbuzudubzavcybwwbcyrwyzq Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 65P T Full-Range Satellite Pendant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 65 P/T Specs | Frequency Response | 55 Hz - 20 kHz, (-10 dB) | | Frequency Range | 78 Hz - 18 kHz, (±3 dB) | | Drivers | LF Driver: 5.25" (130 mm) polypropylene-coated paper with pure butyl rubber surround, 1" (25 mm) copper voice coil, vented fiberglass resin voice coil-former
HF Driver: 0.75" (20 mm) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former | | Power Capacity | 75 W Continuous Pink Noise Power (with 300 W peaks)
150 W Continuous Program Power | | Nominal Sensitivity | 86 dB | | Nominal Coverage Angle | 120° (+20° / -10°) | | Directivity | 5.3 | | Directivity Index | 7.2 dB | | Maximum SPL | 105 dB continuous pink noise, 111 dB peak @ 1 m | | Transformer Taps | 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W | | Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W | | Enclosure | Enclosure Material: High-impact polystyrene
Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating
Termination: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm). Rubber terminal covers included
Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 15' (4.5 m) long 0.077" (2 mm) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 99 lb)
Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81 | | Dimensions | 9.3" (234 mm) diameter x 10.2" (259 mm) height to top of cabinet
11.0" (279 mm) to top of suspension bracket | | Weight | 8 lb (3.7 kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 21.0 x 13.0 x 10.5" |
