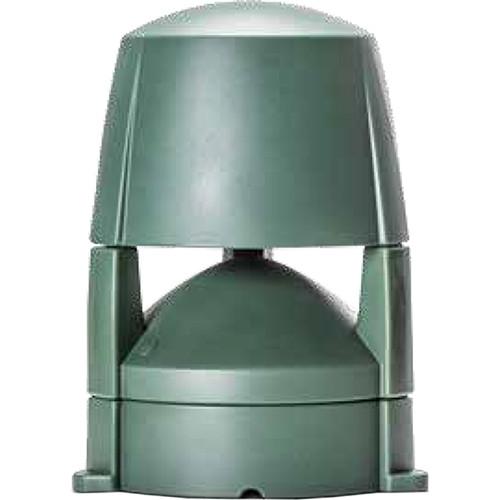

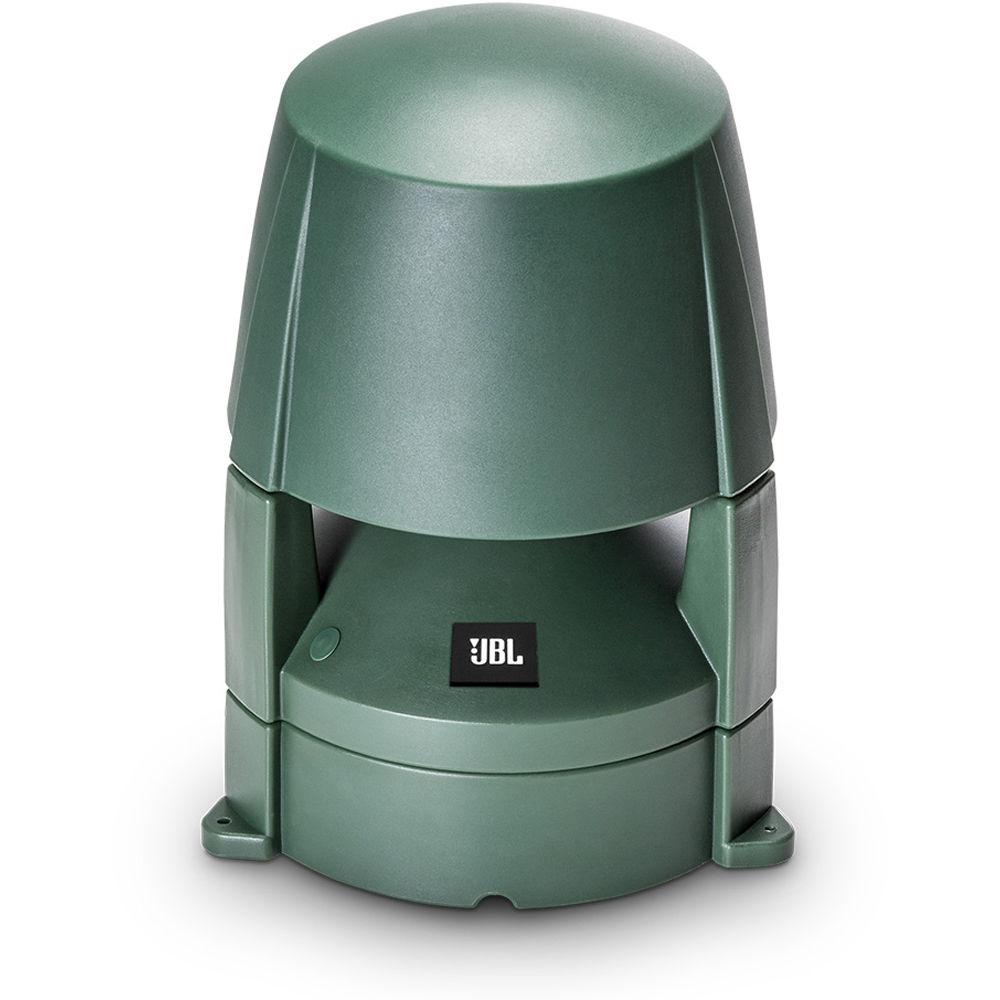

Product description Designed for outdoor applications, the Control 85M from JBL is a weather-resistant mushroom-shaped coaxial speaker offering 360° coverage and a broad frequency range of 55 Hz to 18 kHz. Mounted on or in the ground it provides quality music and paging in a variety of locations including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality facilities, and entrance ways. The speaker's compact enclosure is unobtrusive and blends in with its surroundings. It resists abuse from lawn care equipment and the elements and maintains its hunter green color even when scraped or scratched. - 5.25" weather-resistant driver
- 0.75" soft-dome weather-resistant tweeter
- 80W pink noise power handling (160W program) in direct 8-Ohm setting, plus built-in 30W 70/100V multi-tap transformer
- Tough polyethylene weather-resistant enclosure

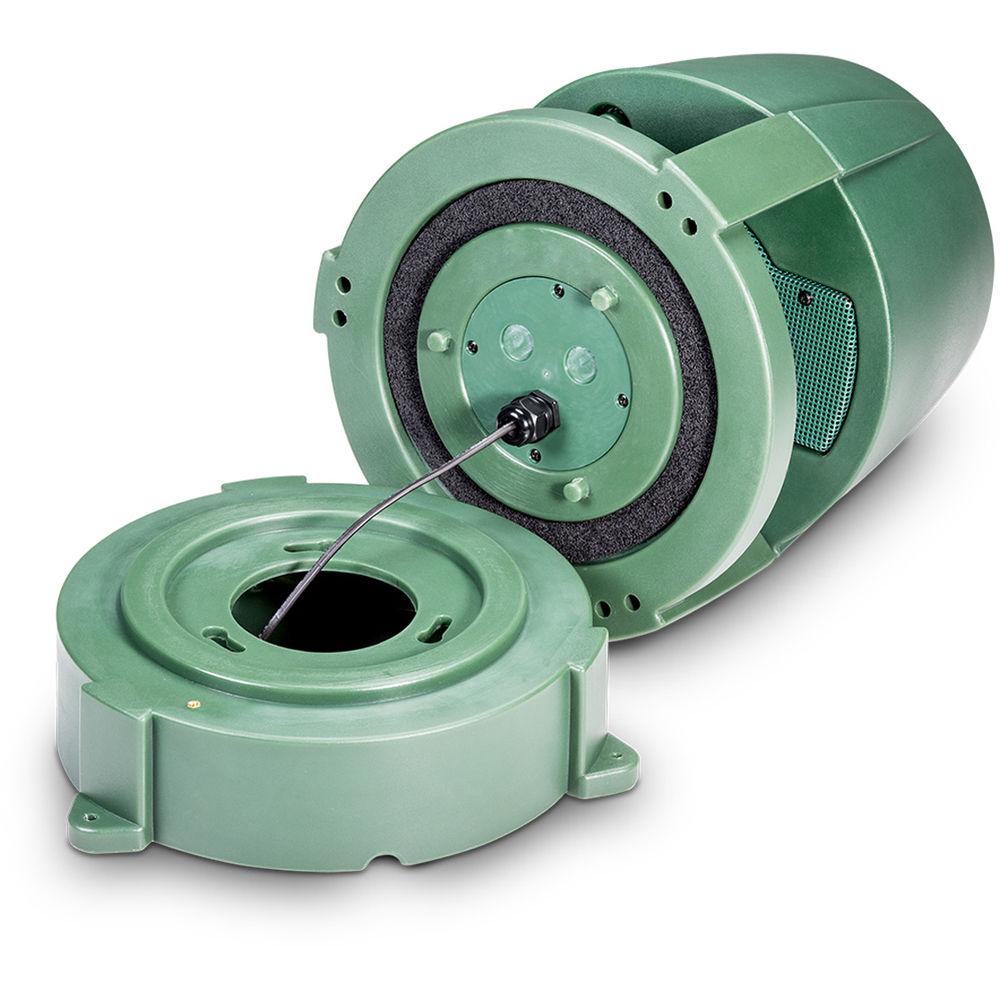

- Fully isolated center chamber for wiring protection
- High-fidelity sound character with broad frequency range of 55 Hz to 18 kHz
UPC: 691991005077 In the Box JBL Control 85M Two-Way 5.25" Coaxial Mushroom Landscape Speaker (Single) 2 x Wire Nuts 2 x Gland Nuts Right-Angle Screwdriver Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control 85M Two-Way 5.25" Coaxial Mushroom Landscape Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CONTROL 85M Specs | Frequency Response (-10 dB) | 55 Hz - 18 kHz | | Power Rating | 160 W continuous program (2 h)
80 W (320 W peak), continuous pink noise (2 h)
45 W (180 W peak), continuous pink noise (100 h) | | Transformer Taps | 70 V: 30, 15, 7.5, and 3.8 W
100 V: 30, 15, and 7.5 W | | Frequency Response ± 3dB | 65 Hz - 16 kHz | | Maximum Input Voltage | 23.3 V | | Sensitivity | 86 dB, 1 W at 3.28' / 1 m (average 80 Hz - 16 kHz) | | Nominal Coverage Angle | 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground) | | Directivity | Q Factor: 2.2 | | Directivity Index | 3.4 dB | | Maximum SPL | 105 dB at 3.28' / 1 m | | Nominal Impedance | 8 Ohms (at 8-Ohm setting) | | Insertion Loss | Up to 1.0 dB at any tap setting | | Thru | 8 Ohms nominal | | Crossover Type | 2nd order LPF on LF and 2nd order HPF on HF | | Recommended Protective High-Pass | 65 Hz for 8-Ohm operation, 24 dB/octave
60 Hz for 30 W tap, 24 dB/octave
50 Hz for 15, 7.5, and 3.7 W taps, 24 dB/octave | | Low-Frequency Driver | 5.25" / 13.5 cm diameter LF driver, Kapton former, 1.4" / 3.55 cm voice coil, polypropylene cone and polyurethane surround | | High-Frequency Driver | 0.75" / 1.9 mm diameter HF driver polyetherimide (PEI) dome | | Enclosure Material | LDPE polyethylene plastic, 0.23" / 6 mm wall thickness, UL94V-0 rated | | Grille | Powder-coated stainless steel | | Environmental | IP-55 rating per IEC529 (dust protected and protected against jets of water)
Exceeds MIL-STD 810 for humidity, salt spray, temperature & UV
Passes MIL-STD 202F for salt spray

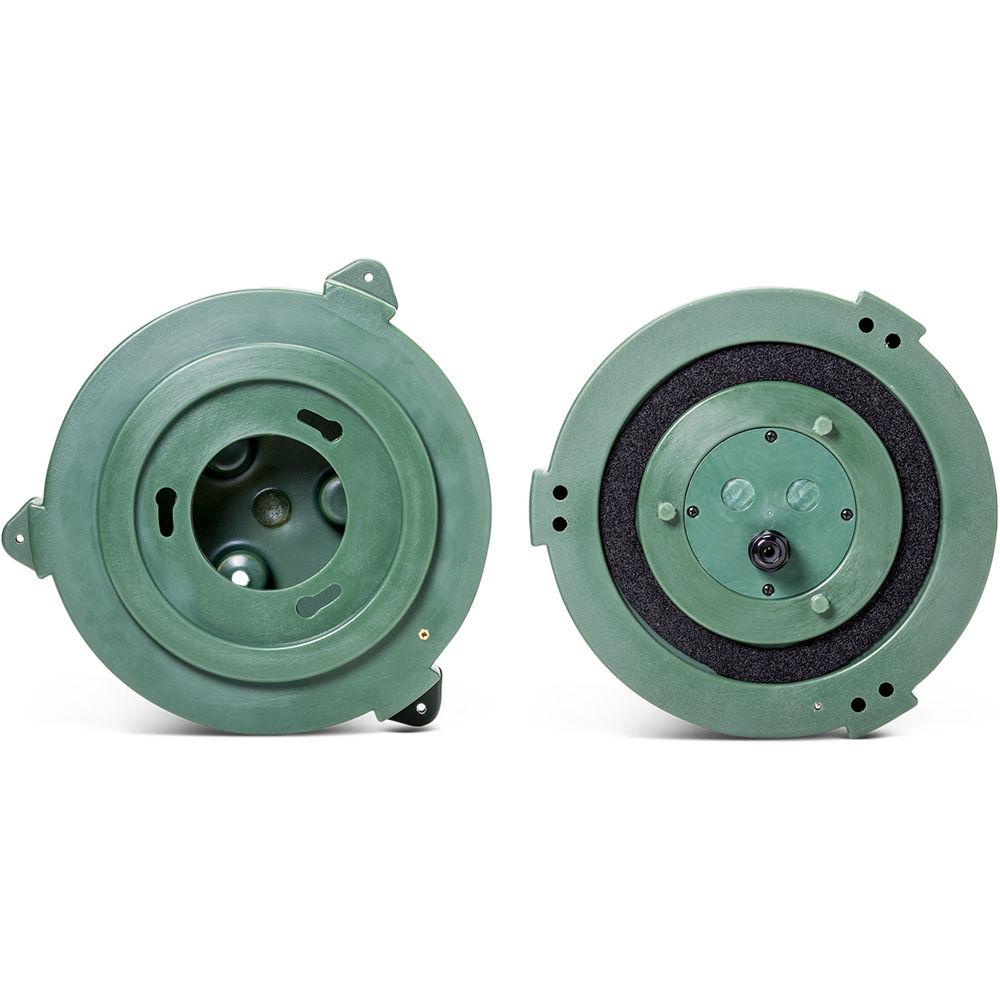

Enclosure UL94V0 rated | | Agency Rating | UL1480, transformer UL recognized per UL1876, ROHS compliant | | Terminals | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section) | | Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 0.87" / 22 mm hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 0.16" / 4.0 mm and 0.35" / 9.0 mm. | | Dimensions | 17.0 x 11.5 x 11.5" / 43.2 x 29.1 x 29.1 cm | | Weight | 12 lb / 5.5 kg | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 20.0 x 16.5 x 15.0" |
