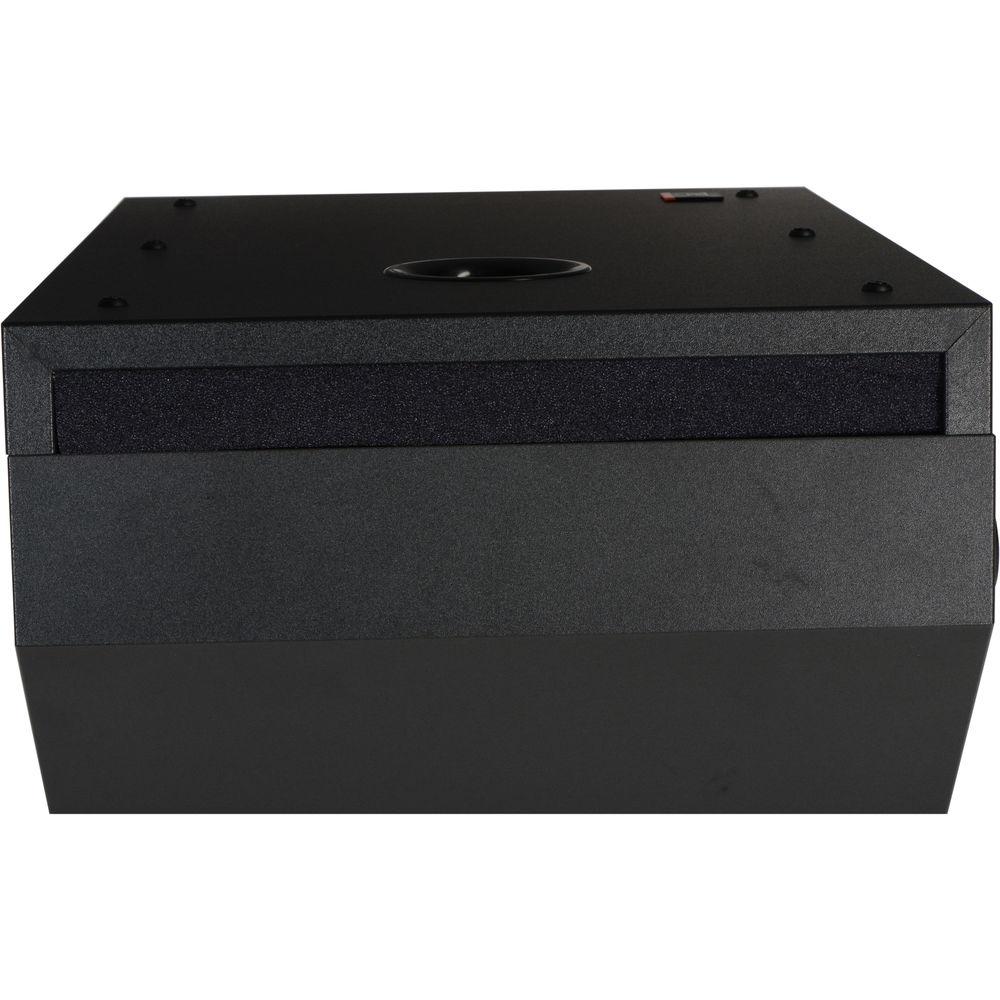

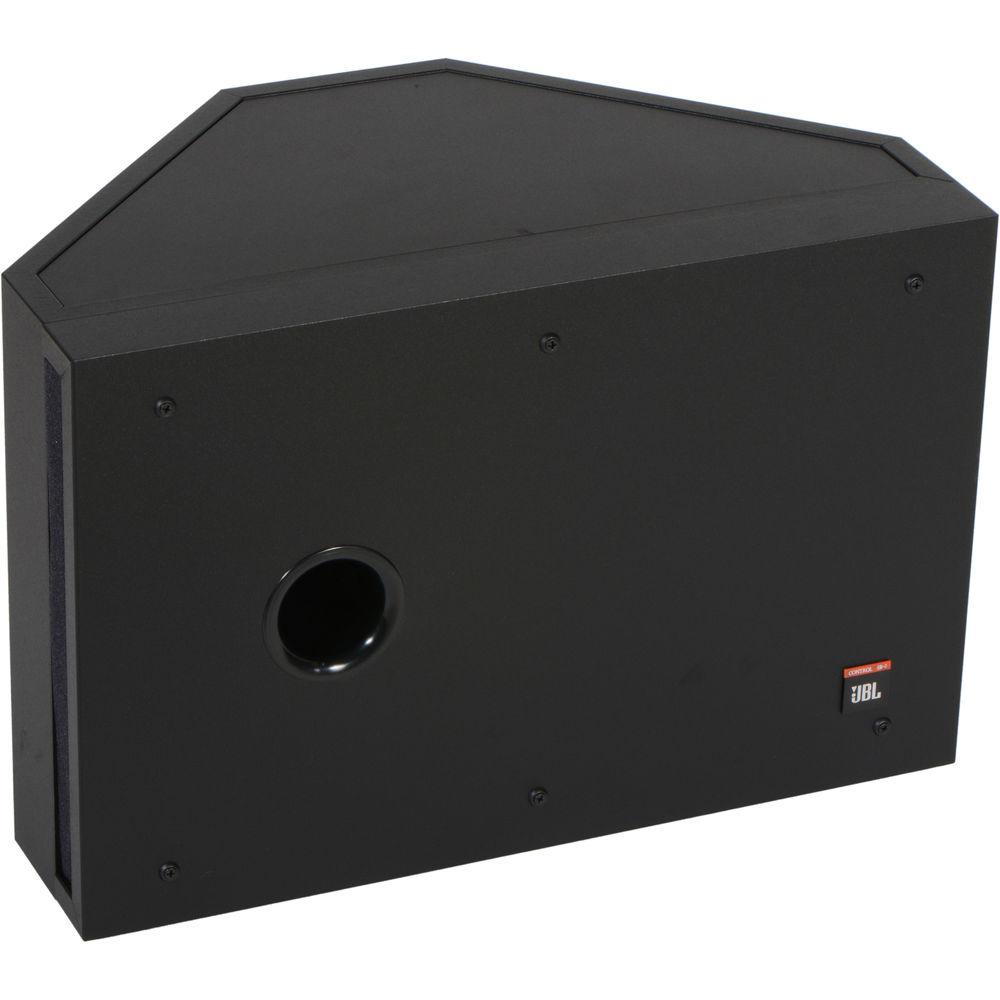

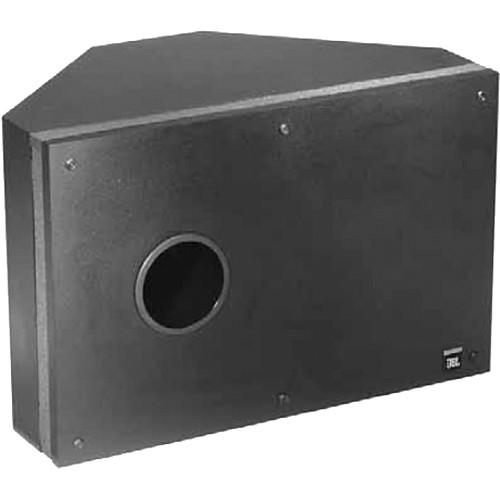

User Manual for JBL Control SB-2 Passive 10" Dual-Coil Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL Control SB-2 Passive 10" Dual-Coil
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL Control SB-2 Passive 10" Dual-Coil contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL Control SB-2 is a passive 10" dual-coil subwoofer offering low-frequency reinforcement for music playback and paging systems in stores, restaurants, clubs, and more. The high-sensitivity 10" long-excursion transducer features dual voice coils to produce signal for the left and right input sources while handling up to 340W of continuous power. Installed in a particle board enclosure with a slot-load vented bandpass design, the Control SB-2 yields a frequency range of 38 to 160 Hz. A 160 Hz crossover and acoustic filtering ensure proper input frequencies. The stereo output connections are fed by a high-pass filter to prevent excessive low frequencies from reaching your satellite speakers (available separately). - 340W continuous power capacity
- 38 to 160 Hz frequency range
- 10" transducer with dual voice coils
- Stereo inputs with high-pass outputs for satellite design

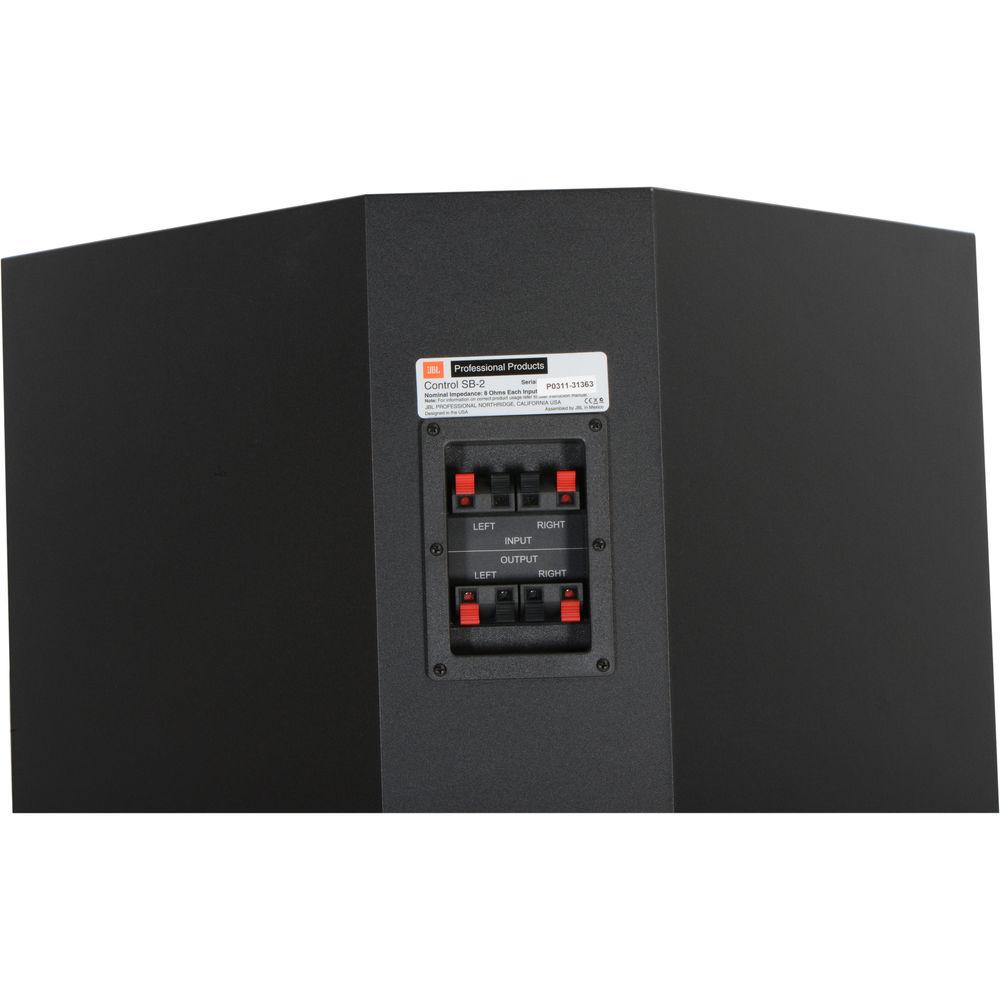

- Spring-loaded input terminals
- Slot-load vented bandpass design
- High sensitivity of 100 dB
- Complements full-range Control Contractor Series systems
UPC: 050036903424 In the Box JBL Control SB-2 Passive 10" Dual-Coil Subwoofer Limited 5-Year Warranty on Loudspeaker Limited 2-Year Warranty on Cabinet Brochure PDF 112.6kbaqwsuwsear Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control SB-2 Passive 10" Dual-Coil Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control SB-2 Specs | Active or Passive | Passive | | Frequency Range | 38 to 160 Hz (-10 dB) | | Power Capacity | 340 W continuous (both inputs driven)
170 W continuous (each input) x 2 | | Sensitivity | 100 dB (1 W, 1 m) at corner junction (p/2 loading)
97 dB, at two boundary junction (p loading) | | Nominal Impedance | Per Input: 8 Ohms
Both Inputs Paralleled: 4 Ohms | | Output Impedance | 4-Ohm load per satellite output recommended | | Filtering | Network Filter to Subwoofer: 12 dB/octave low-pass per input at 160 Hz
Acoustic Filtering: 6 dB/octave low-pass at 80 Hz via slot-load design
Network Filter to Satellite Outputs: 6 dB/octave high-pass per output | | Driver | 10" / 25 cm long-throw woofer with dual voice coils | | Enclosure Material | Particle board | | Inputs | 2 x Spring terminals (left/right inputs, banana plugs accepted) | | Outputs | 2 x Spring terminals (left/right outputs, banana plugs accepted) | | Dimensions (H x W x D) | 15.5 x 23.0 x 13.5" / 39.4 x 58.5 x 34.3 cm | | Weight | 42 lb / 19.1 kg | | | | Package Weight | 46.4 lb | | Box Dimensions (LxWxH) | 27.0 x 18.0 x 18.0" |
