User Manual for JBL Control X All-Weather Indoor Outdoor Speakers Click to enlarge the picture
Contents of the user manual for the JBL Control X All-Weather Indoor Outdoor
- Product category: Outdoor Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Outdoor Speakers
 |
User manual for the JBL Control X All-Weather Indoor Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

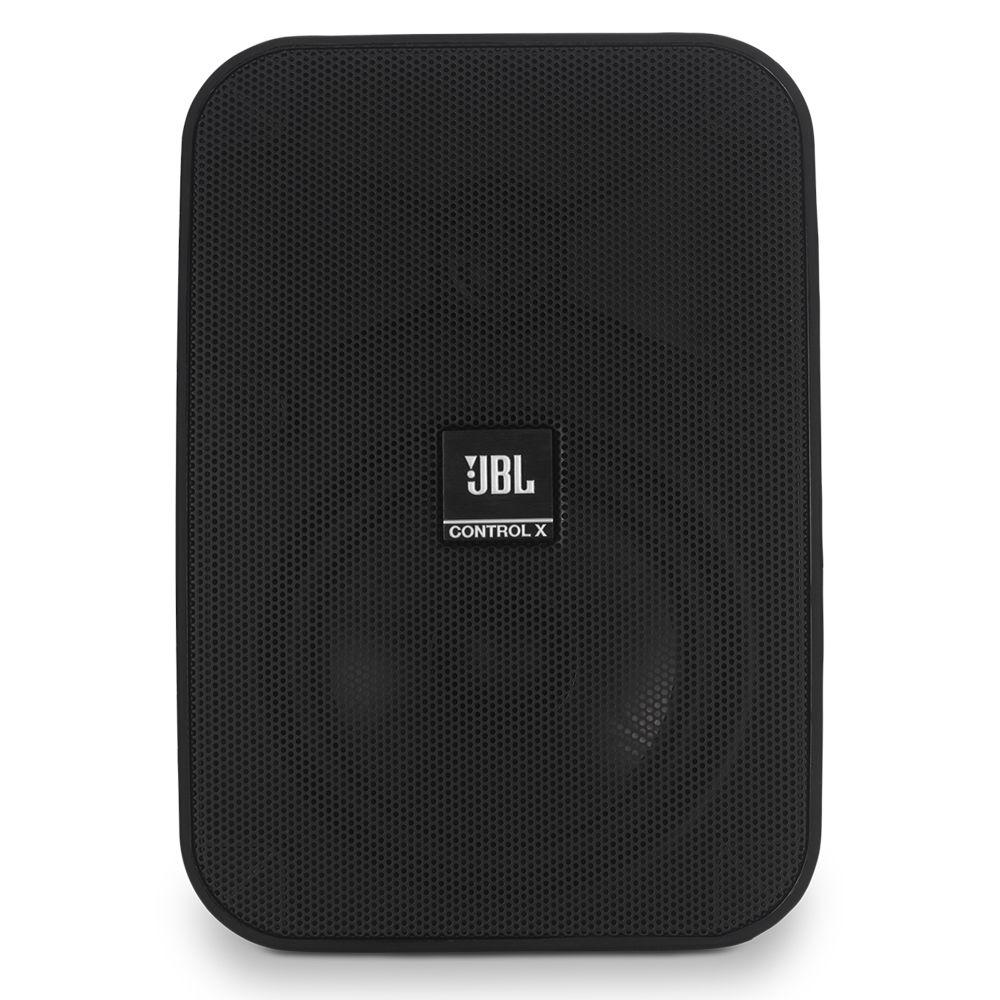

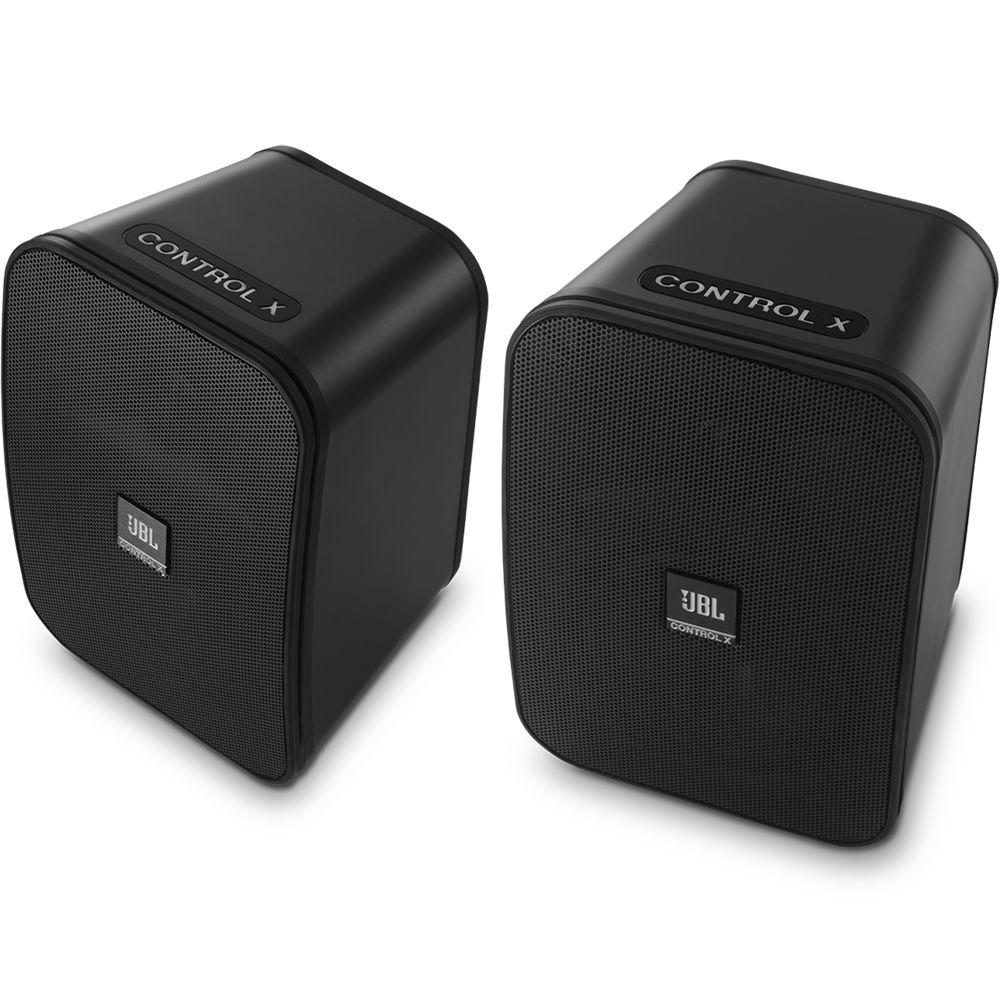

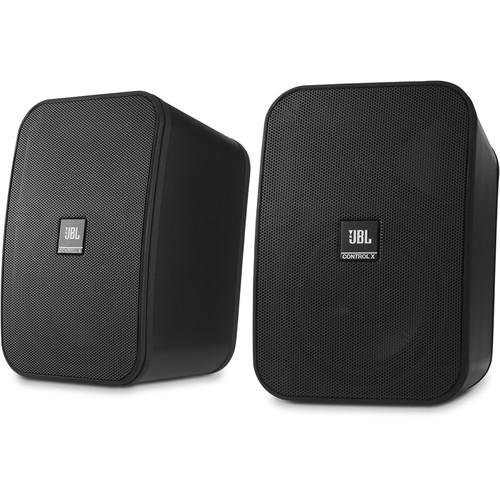

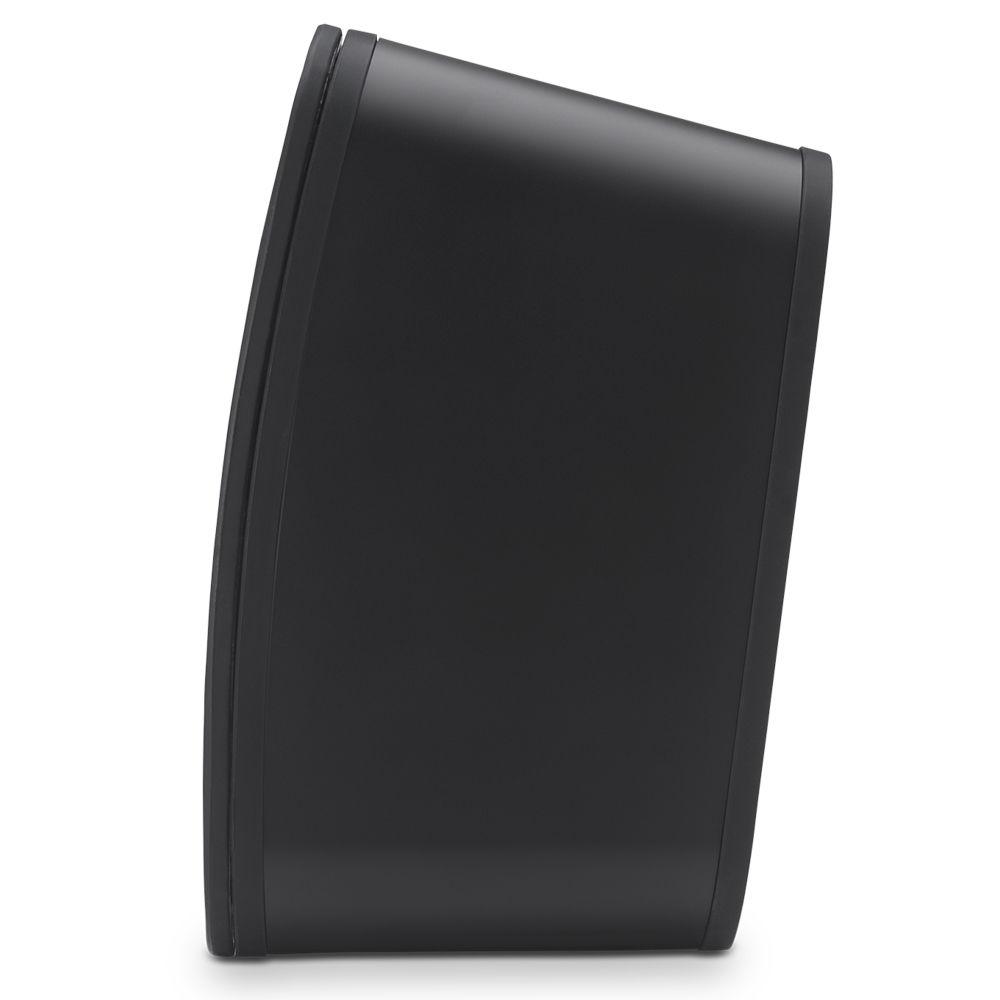

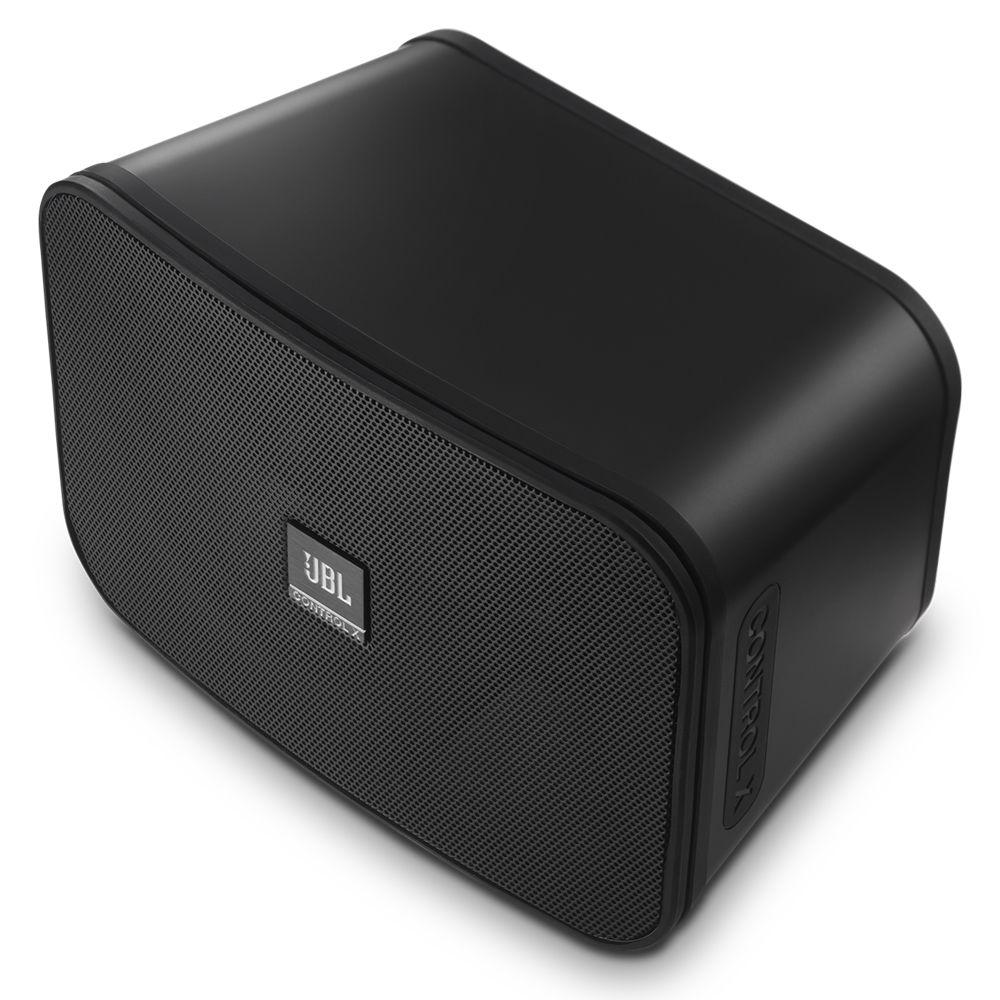

Product description Enjoy high-quality sound in a variety of environments with the black JBL Control X All-Weather Indoor/Outdoor Speakers. Each speaker in this weather-resistant speaker pair can handle up to 200W of power and incorporates a 5.25" woofer and a 1" tweeter. They also feature gold-plated 5-way binding-post speaker terminals for connecting to a wide variety of amplifiers. The speakers are wall mountable with the included wall mount brackets. - All-Weather Indoor/Outdoor Stereo Speakers
- Designed to blend into any environment for home or business, the weatherized housing will protect the speaker from the elements. Its built-in ⅜"-16 threaded insert and security tie-down will provide safe installation.
- Engineered to Deliver Accurate Sound

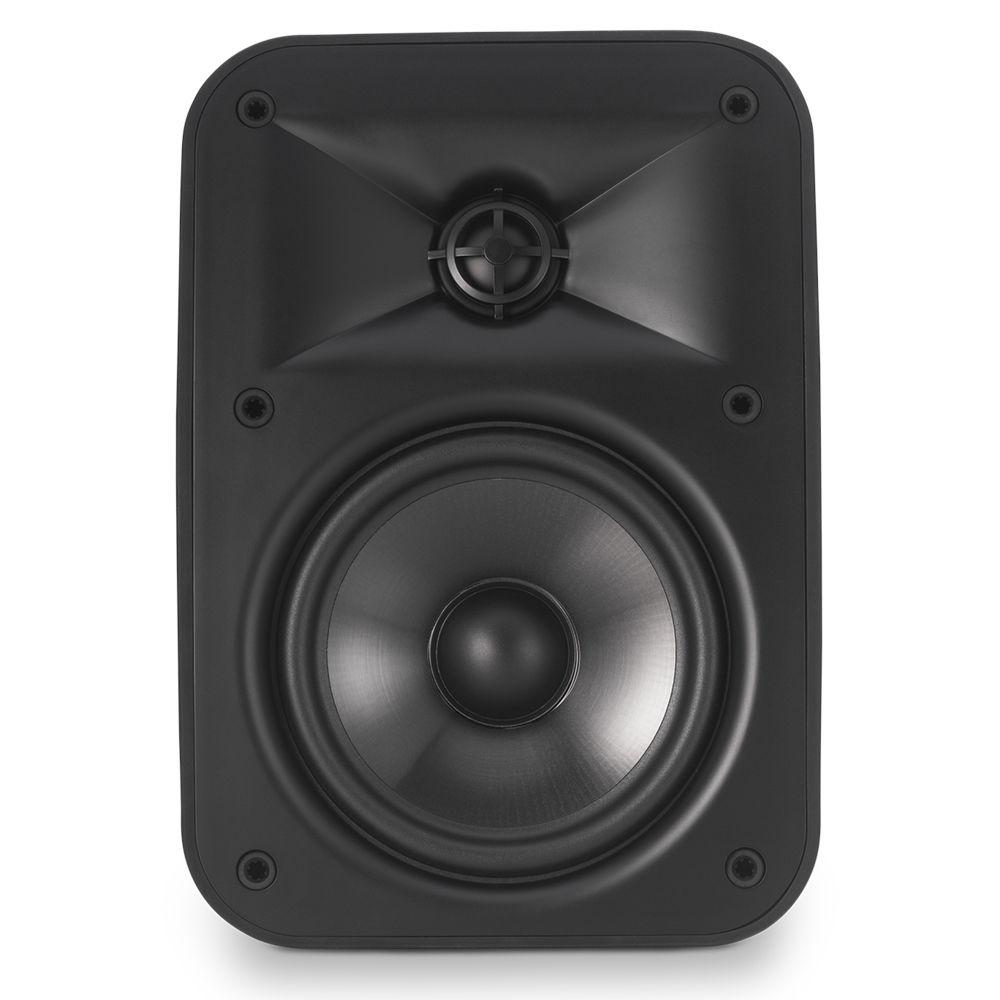

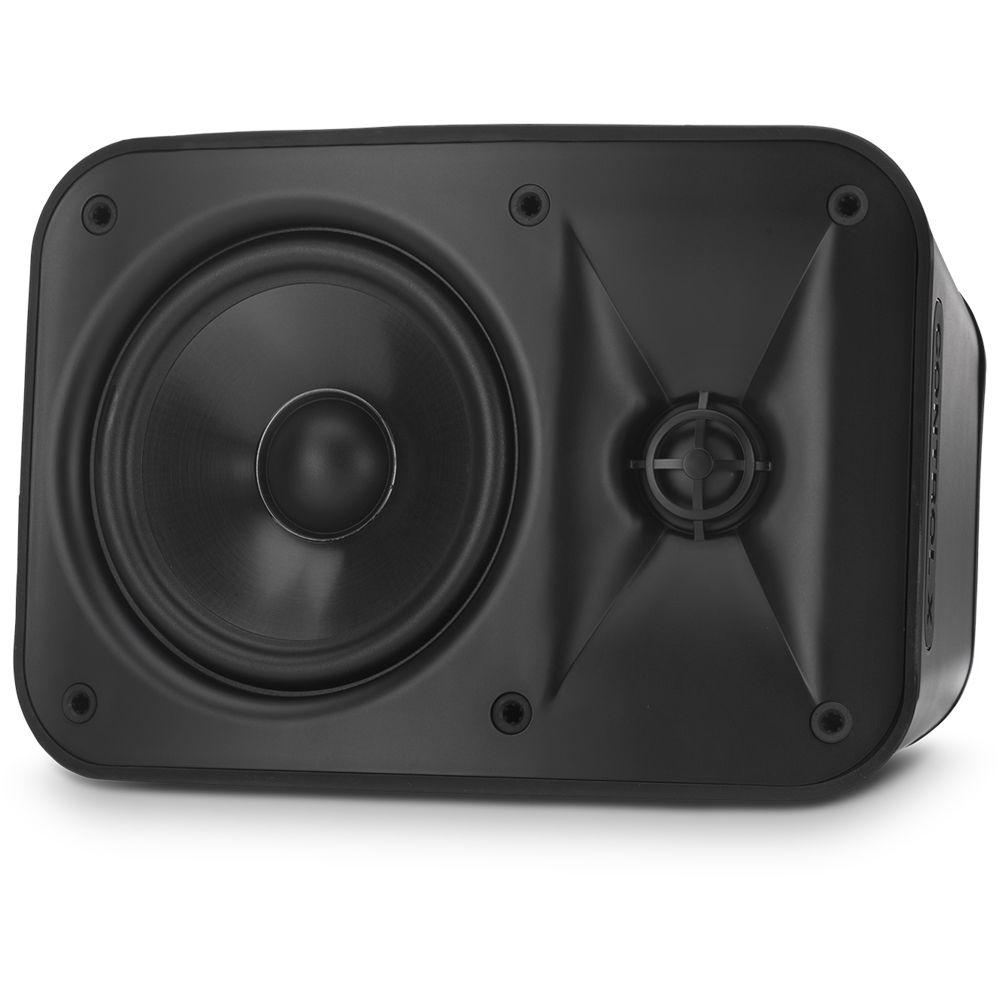

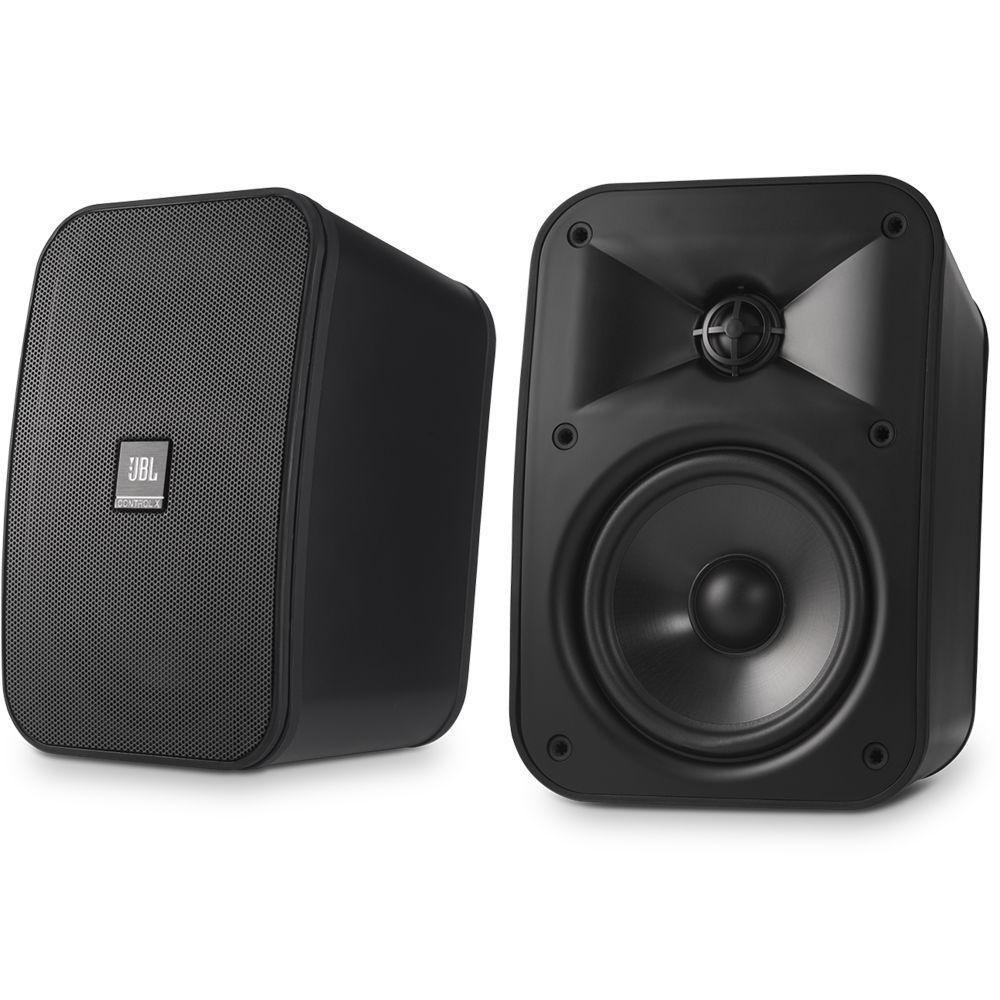

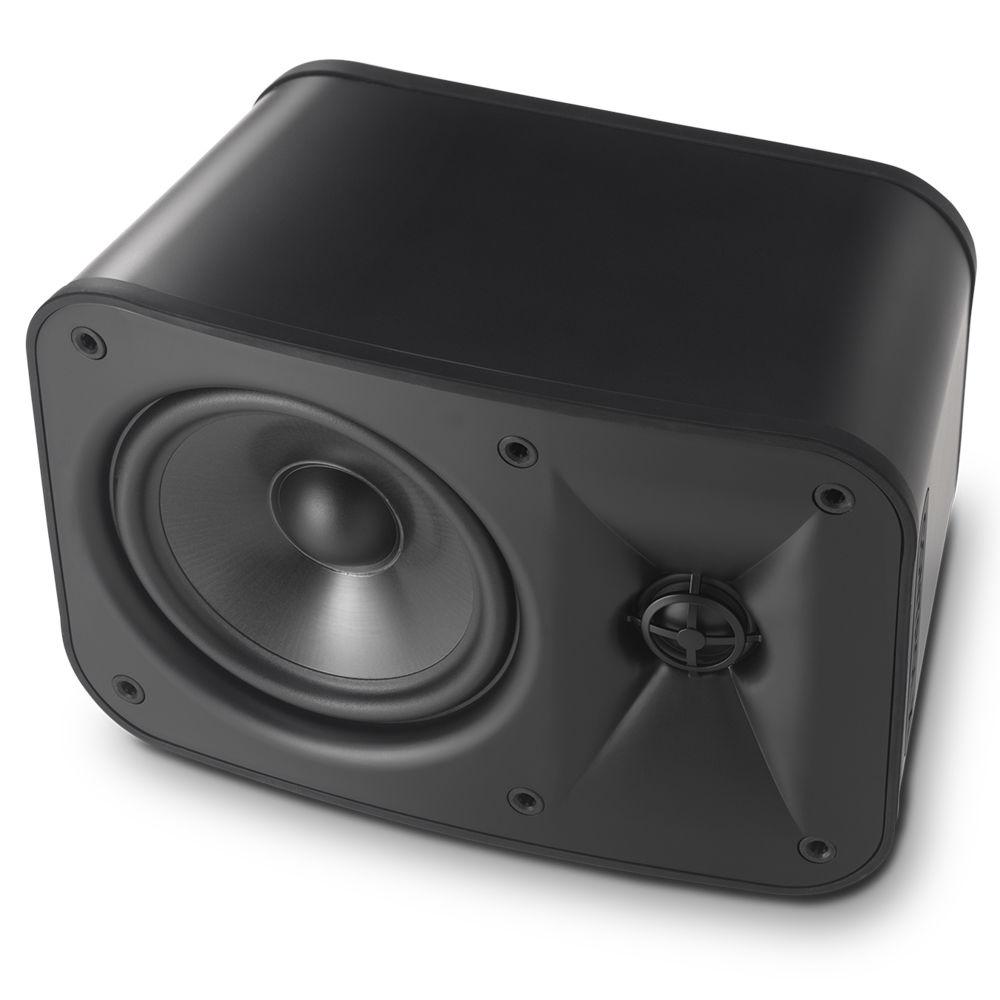

- The 5.25" polypropylene graphite-filled cone woofer is designed for deep, powerful bass, while the High Definition Imaging (HDI) waveguide provides a natural balance and noticeable detail. Its 1" CMMD Lite tweeter emits detailed highs.
- Protective Rubber Trim
- The Control X features a front and rear protective rubber trim.
- Designed for Seamless Integration

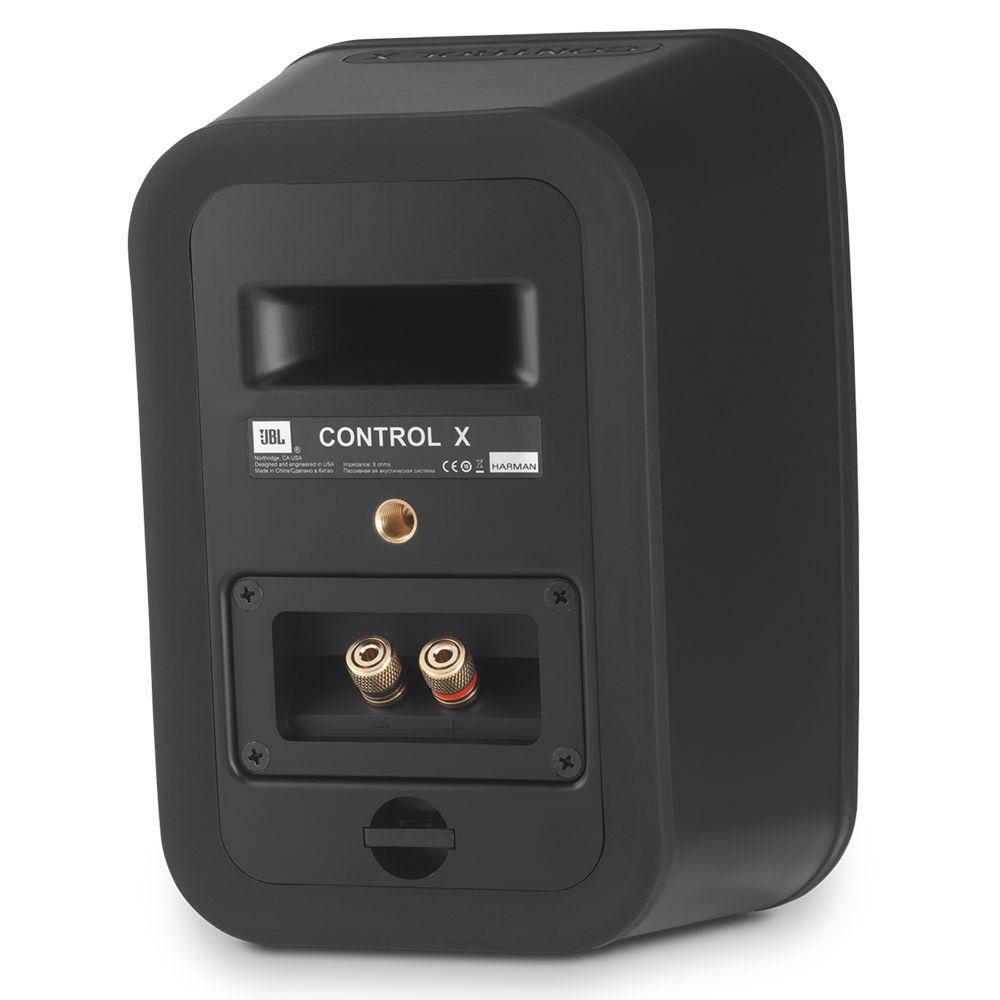

- The Control X sports gold binding post terminals for a secure connection to a receiver or multi-zone amplifier. It includes wall mount brackets that can be rotated, tilted, and angled towards the listener.
UPC: 050036324885 In the Box JBL Control X All-Weather Indoor/Outdoor Speakers (Pair, Black) 2 x Adjustable Wall Mount Brackets 2 x Removable Grilles Limited 5-Year Warranty on Drivers Limited 1-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Control X All-Weather Indoor Outdoor Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CONTROLXBLKAM Specs | Recommended Use | Indoor, outdoor | | Type | 2-way ported design | | Recommended Amp Power | 20 to 100 W | | Woofers | Each Speaker: 1 x 5.25" (13.30 cm) polypropylene graphite-filled cone | | Tweeter | Each Speaker: 1 x 1.0" (2.5 cm) CMMD Lite dome | | Frequency Response | 90 Hz to 20 kHz (anechoic) | | Crossover Frequencies | 2300 Hz to 12 dB/octave | | Sensitivity | 87 dB | | Input Power | Peak: 200 W
RMS: 50 W | | Nominal Impedance | 8 Ohms | | Inputs | Gold-plated 5-way binding posts | | Dimensions (W x H x D) | Each Speaker: 6.50 x 9.25 x 6.25" (16.50 x 23.50 x 15.90 cm) | | Weight | Each Speaker: 5.8 lb (2.6 kg) | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 16.9 x 13.7 x 9.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
