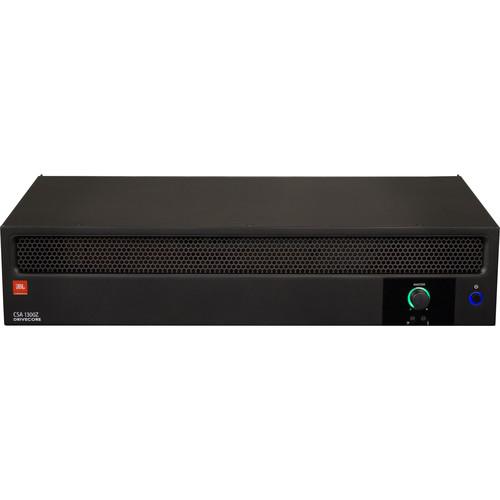

Product description Built for installed sound applications, the CSA 1300Z Single-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module. -
- One channel with 300W output
- Integrated output transformer to drive 70V or 100V speaker systems
- Ideal for commercial and industrial use
- Euroblock style input connectors
- Barrier strip output connectors
- Independent bass and treble controls for each output channel
- Remote volume control capability using JBL's CSR-V module and standard Ethernet cable (sold separately)
- Space-saving 2 RU design
- Capable of RS232 control of volume, stand-by, and mute
- Utilizes Crown’s DriveCore technology providing high-quality audio performance with high efficiency
- Sleep mode disable function
- Energy-efficient amplifier
- Sleek look with illuminated rings making knobs easy to see and use
- System can be expanded by adding JBL Commercial Series Mixers and Mixer-Amplifiers (sold separately)
UPC: 691991004087 In the Box JBL CSA 1300Z Single-Channel 300W Amplifier Euroblock Connectors Rack Mounting Kit Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSA 1300Z Single-Channel 300W Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSA1300Z Specs | Input & Output | Input Connectors
Euroblock (balanced and unbalanced)
RCA (mono sum)
Output Connectors
Terminal Block (+, -, 100 V, 70 V, COM) | | Rated Power | 300 W @ 4 or 8 Ohms (1 kHz, ≤0.5% THD) | | Output Channels | 1 | | Insertion Loss | 1 dB maximum (70 V & 100 V outputs) | | Input Sensitivity | Balanced line Input: 775 mV RMS (8 Ohms load)
RCA Mono Sum Input: 300 mV (8 Ohms load) | | Frequency Response | 20 Hz to 20 kHz: ±1.0 dB (8 Ohms, tone controls set to flat response) | | Total Harmonic Distortion | <0.5% (@ full rated power, 20 Hz to 20 kHz) | | Signal-to-Noise Ratio | >97 dB (Ref. rated output, 22 kHz BW, A-weighted) | | Input Impedance | Euroblock: 20 kOhms (balanced)
RCA: 10 kOhms | | Maximum Input Level | +22 dBu (nominal) | | Crosstalk | <-70 dB (Ref. rated power, A-weighted, 1 kHz) | | Tone Controls | Bass ±12 dB @ 100 Hz
Treble ±12 dB @ 10 kHz | | AC Power Requirements | Nominal: 100, 120, 220, 230 to 240 VAC, 50/60 Hz | | Minimum Load Impedance | Low-Z Output: 4 Ohms
70 V Output: 12 Ohms
100 V Output: 24 Ohms | | Operating Environment | 32 to 95°F (0 to 35°C) @ 95% RH (non-condensing) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Dimensions | 17 x 11 x 3.5" (43 x 27 x 8.9 cm) | | Weight | 13.1 lb (5.9 kg) | | | | Package Weight | 16.95 lb | | Box Dimensions (LxWxH) | 21.6 x 14.5 x 6.0" |
