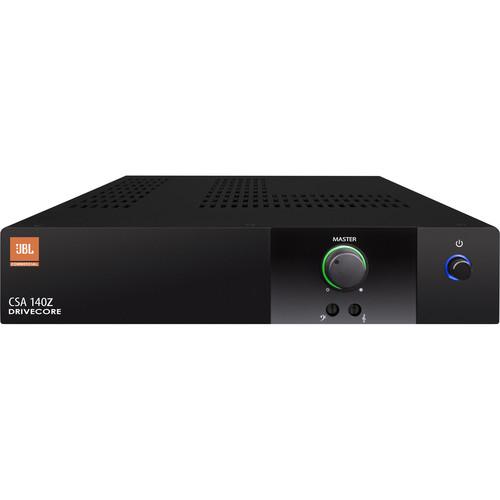

Product description The JBL CSA 140Z Audio Amplifier (1x 40W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amplification.
The unit supports both 70 and 100V installations out of the box. It includes 1 x RJ45 connector for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative. UPC: 871015008462 In the Box JBL CSA 140Z Audio Amplifier (1 x 40W) Euroblock Connectors Rack Mounting Kit Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSA 140Z Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSA 140Z Specs | I/O | 1 x Mono Sum RCA Pair Input (left and right)
1 x Euroblock Input
1 x 70/100 V Euroblock connector
1 x RJ45 port for CSR-V controller | | Switch | Hi-Z on and off | | Rated Power | Into 4 or 8 Ohms, 1 kHz, ≤0.5% THD: 40W | | Output Channels | 1 | | Insertion Loss | 70 and 100 V outputs: 1 dB maximum | | Input Sensitivity | 1.4 V RMS | | Frequency Response | At 8 Ohms (20 Hz to 20 kHz): ±0.5 dB | | Total Harmonic Distortion | <0.5 % | | Signal-to-Noise Ratio | >100 dB | | Input Impedance | Euro Block: 20 kOhms (balanced)
RCA: 50 kOhms | | Maximum Input Level | +22 dBu (Nominal) | | Crosstalk | >70 dB | | Tone Controls | Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10,000 Hz | | Nominal Voltage | 100 to 240 VAC, 50/60 Hz | | Minimum Load Impedance | Low-Z Output: 4 Ohms
70 V Output: 120 Ohms
100 V Output: 240 Ohms | | Operating Temperature & Humidity | 32 to 95°F (0 to 35°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Dimensions (W x D x H) | 8.6 x 11.9 x 1.7" (218.5 x 303.4 x 43.3 mm) | | Weight | 6.3 lb (2.8 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 16.2 x 12.1 x 5.0" |
