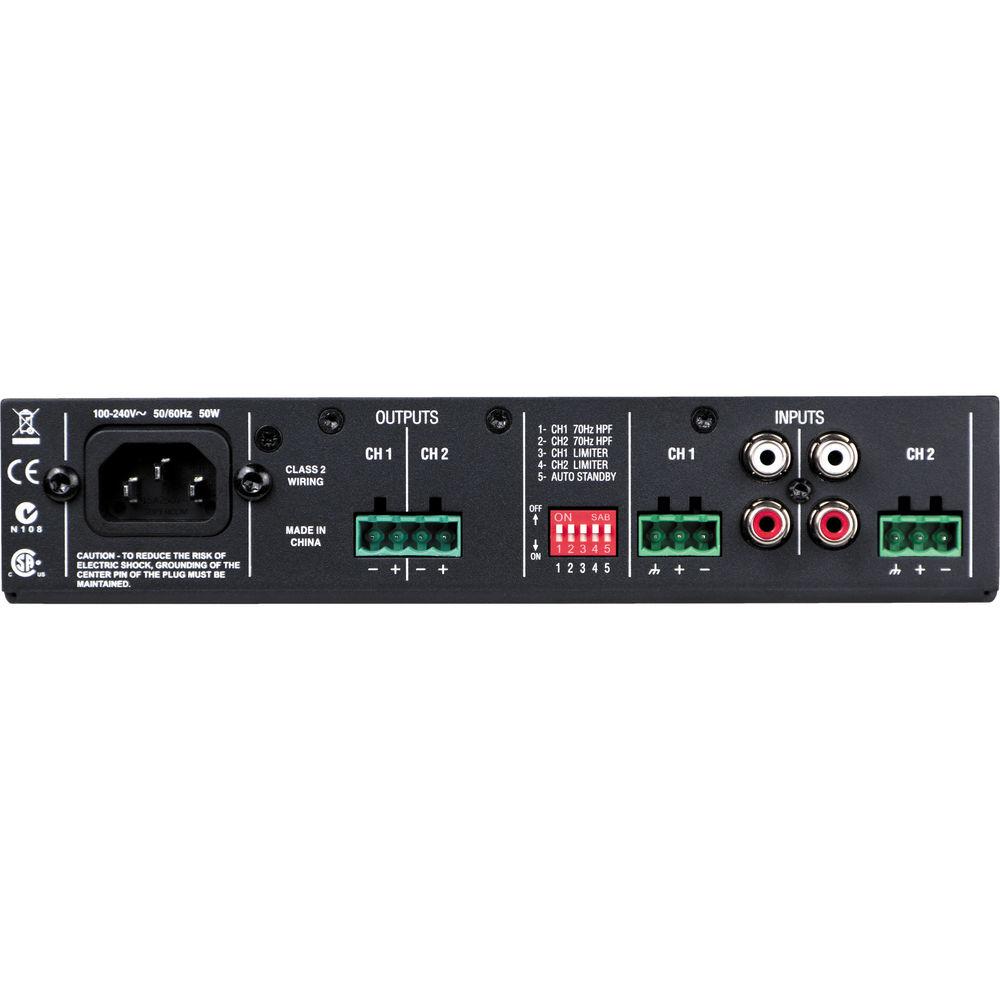

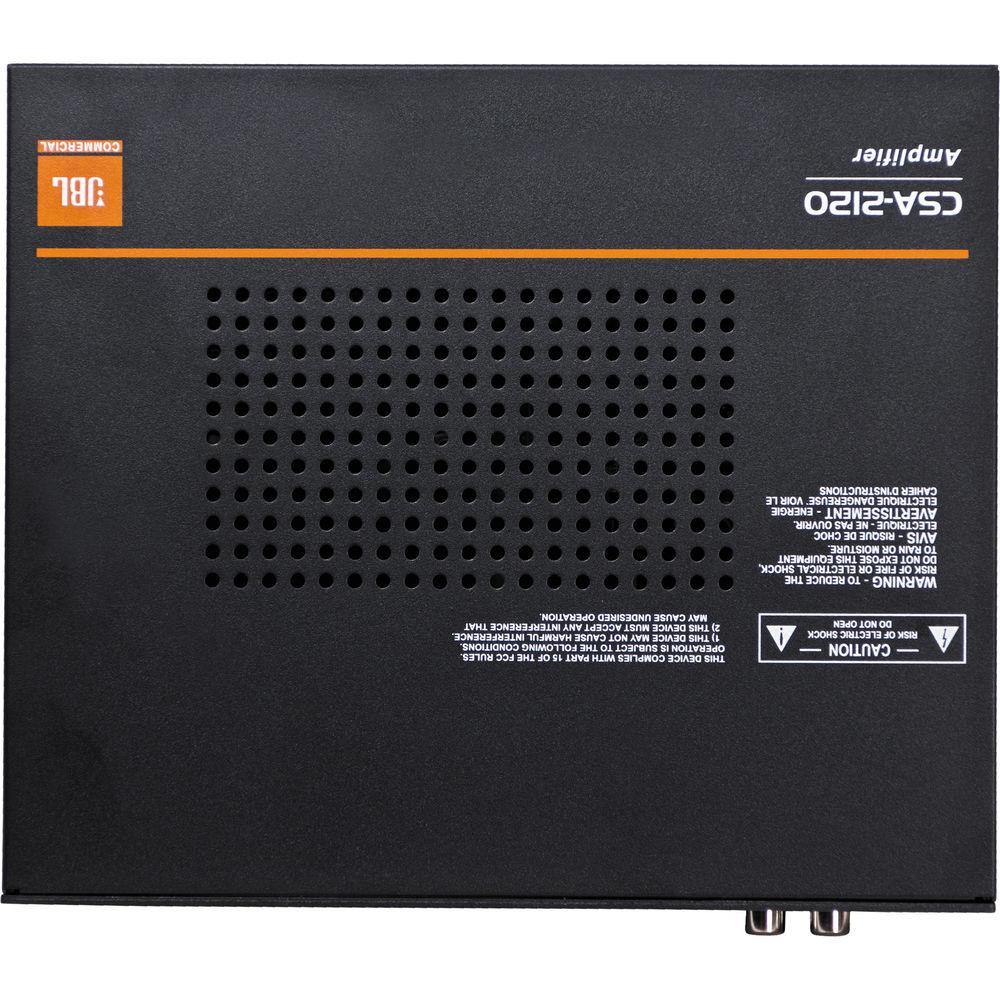

Product description The CSA2120 2-Channel Installed Sound Power Amplifier from JBL features 120 watts of output per channel at 4 or 8 ohms and is designed for installed sound applications. Each of its two input channels has dual summing RCA inputs and a 3-pin detachable Euroblock input. Both channels also feature a selectable limiter and high-pass filter at 70Hz. The CSA2120 has a 4-pin Euroblock output connector for powering dual loudspeakers. The auto-standby mode disables the amplifier pulse width modulation generator when there is no signal detected.

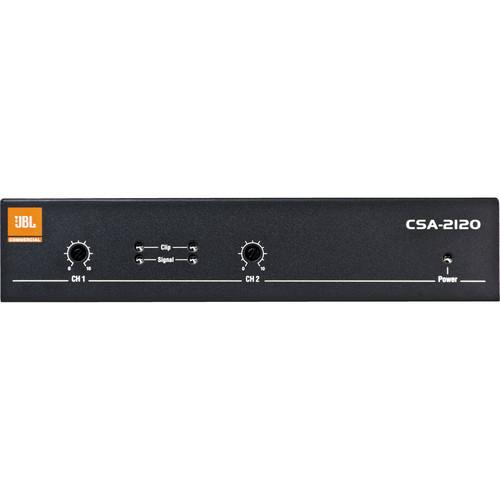

The CSA2120 has both over-heat and low-voltage protection and can be rackmounted with the included rackmount kit. It has front-panel channel volume controls as well as clip, signal, and power LED indicators. The unit is powered by a switch-mode universal power supply. - Plenum Rated
- The CSA2120 is Plenum Rated UL2034 for fire-retardant operation
UPC: 871015006079 In the Box JBL CSA2120 2-Channel Installed Sound Power Amplifier Power Cable Rackmount Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSA2120 2-Channel Installed Sound Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSA-2120 Specs | Inputs | 4x RCA Inputs
2x 3-Pin Euroblock Connectors Per | | Outputs | 4-Pin Euroblock Connector | | Output Power | 120 W Per Channel @ 4 or 8 Ω (Two Channels @ 1 kHz power) | | Total Harmonic Distortion/Noise | < 0.5% | | Frequency Response | +/- 1dB (@ 1 W into 4 or 8 Ω) | | Load Impedance | 4 or 8 Ω | | Sensitivity | 1.4 Vrms (@ 8 Ω) | | Signal to Noise Ratio | > 100 dB (Below Rated 8 Ω power @ 1 kHz, A-Weighted) | | Crosstalk | 70 dB Below Rated From 20 Hz to 1 kHz (A-Weighted)
50 dB Below Rated at 20 kHz (A-Weighted) | | Input Impedance | Balanced: 20 k Ω (Nominal)
Unbalanced: 10 k Ω (Nominal) | | Line Voltage | AC Line Voltage and Frequency Configurations Available:
100 to 240 V, 50/60 Hz | | Maximum Input | 20 dBu typical | | Operating Temperature | 32° to 104°F (0° to 40°C) at 95% Relative Humidity (Non-Condensing) | | Dimensions (WxHxD) | 8.2 x 1.7 x 7.0" (20.9 x 4.4 x 17.8 cm) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 12.0 x 11.1 x 5.1" |
