User Manual for JBL CSM 14 - Four Inputs One Output Commercial Series Mixer Click to enlarge the picture
Contents of the user manual for the JBL CSM 14 - Four Inputs
- Product category: Mixer/Amplifiers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Mixer/Amplifiers
|
User manual for the JBL CSM 14 - Four Inputs contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

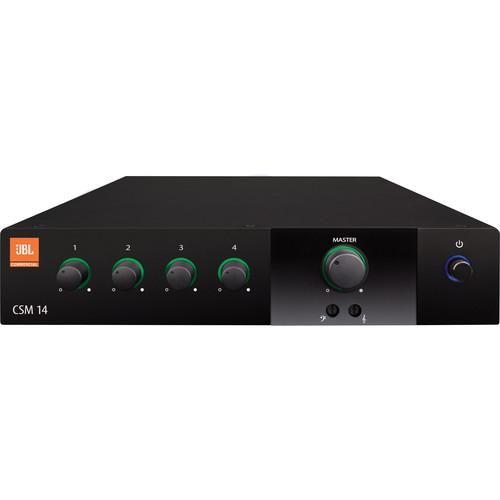

Product description The CSM 14 - Four Inputs/One Output Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that makes them easier to see and use for the dedicated volume, bass, and treble controls. The back of the mixer features a +27V phantom power switch as well as a 70 Hz HPF switch.
The mixer features RJ45 connectors for use with the company's CSR-V in-wall volume controls (sold separately), as well as a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. It was built using Harman's GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design that conforms to RoHS standards. UPC: 871015008608 In the Box JBL CSM 14 - Four Inputs/One Output Commercial Series Mixer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSM 14 - Four Inputs One Output Commercial Series Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSM 14 Specs | Inputs | 4 | | Outputs | 1 | | Line Output Level | 5.0 V RMS into 10 kOhms | | Frequency Response | 20 to 20,000 Hz ±1 dB | | Total Harmonic Distortion | 0.05% typical | | Signal to Noise Ratio | >90 dB | | Input Impedance | Mic: 400 ohms
Line: 20 kOhms
RCA: 50 kOhms | | Crosstalk | >70 dB | | Tone Controls | Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10,000 Hz | | Input Sensitivity | Mic: 3 mV RMS
Line: 300 mV RMS
RCA: 300 mV RMS | | Phantom Power | +27 VDC | | Muting | Priority | | Input/Output AC Line Voltage | 100 to 240 V, 50/60 Hz | | Operating Temperature / Humidity | 32 to 104°F (0 to 40°C) 95% R.H. (non-condensing) | | Storage Temperature | 68 to 185°F (-20 to 85°C) | | Dimensions | 1.7 x 8.6 x 11.9" (43.3 x 218.5 x 303.4 mm) | | Weight | 4.3 lb (2.0 kg) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 16.3 x 12.1 x 5.3" |
