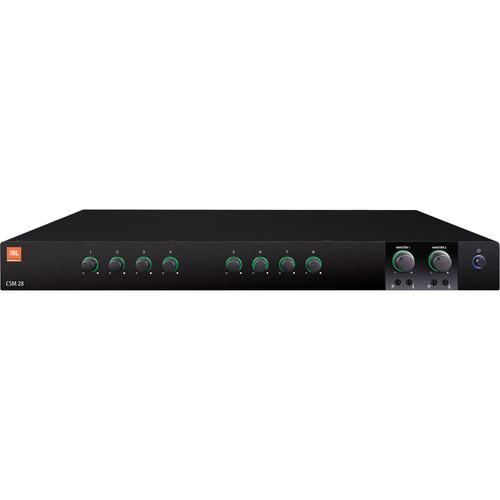

Product description The CSM 28 - Eight Inputs/Two Outputs Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that makes them easier to see and use for the dedicated volume, bass, and treble controls. The rear panel of the mixer features an array of DIP switches for configurable input/output routing.
The mixer features RJ45 connectors for use with the company's CSR-V in-wall volume controls (sold separately), as well as a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. It was built using Harman's GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design that conforms to RoHS standards. UPC: 871015008530 In the Box JBL CSM 28 - Eight Inputs/Two Outputs Commercial Series Mixer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSM 28 - Eight Inputs Two Outputs Commercial Series Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSM 28 Specs | Inputs | 8 | | Outputs | 2 | | Line Output Level | 5.0 V RMS into 10 kOhms | | Frequency Response | 20 to 20,000 Hz ±1 dB | | Total Harmonic Distortion | 0.05% typical | | Signal to Noise Ratio | >90 dB | | Input Impedance | Mic: 400 ohms
Line: 20 kOhms
RCA: 50 kOhms | | Crosstalk | >70 dB | | Tone Controls | Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10,000 Hz | | Input Sensitivity | Mic: 3 mV RMS
Line: 300 mV RMS
RCA: 300 mV RMS | | Phantom Power | +27 VDC | | Muting | Priority | | Input/Output AC Line Voltage | 100 to 240 V, 50/60 Hz | | Operating Temperature / Humidity | 32 to 104°F (0 to 40°C) 95% R.H. (non-condensing) | | Storage Temperature | 68 to 185°F (-20 to 85°C) | | Dimensions | 1.7 x 17.2 x 11.9" (43.3 x 437 x 303.4 mm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 20.5 x 16.4 x 5.1" |
