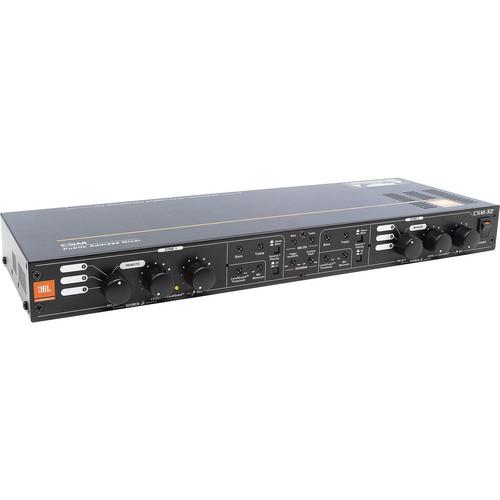

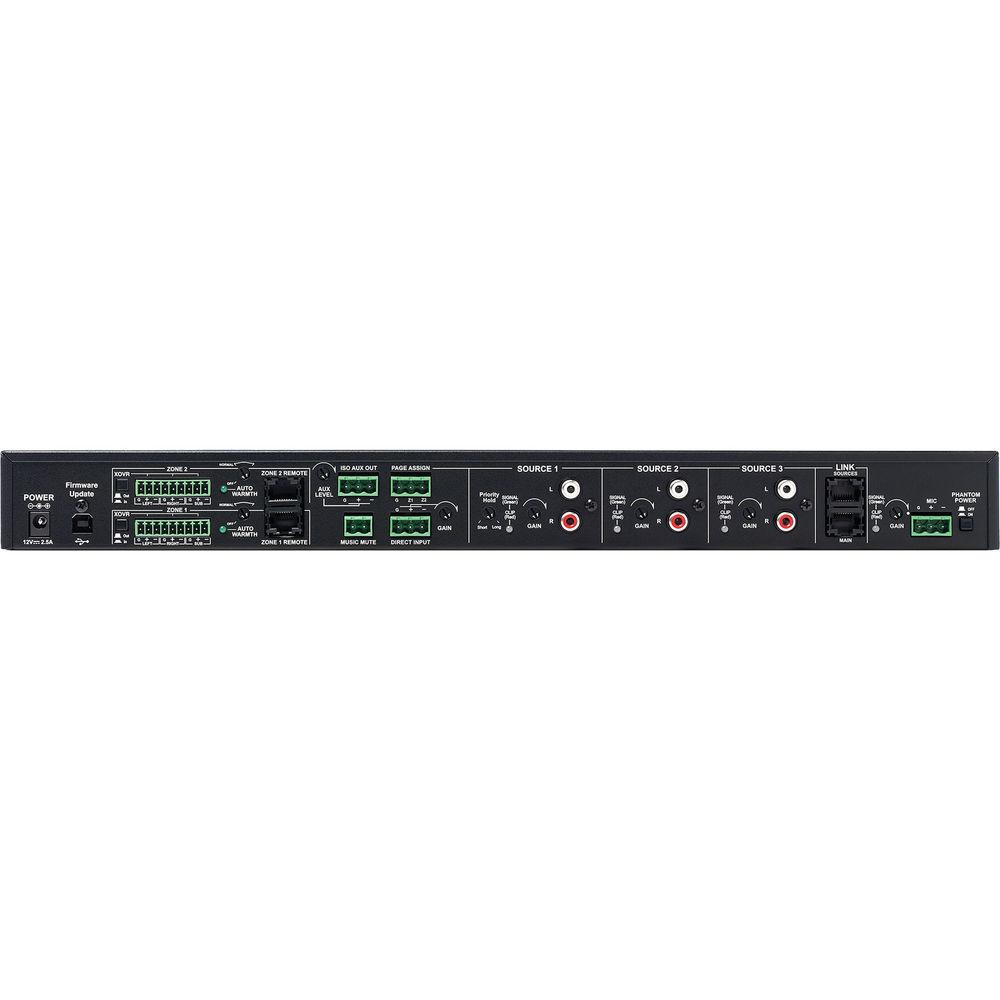

Product description The JBL CSM-32 3 x 2 Stereo Public Address Mixer is a digital commercial mixer for conferencing, retail, and hospitality applications. The mixer features three stereo music inputs with bass and treble equalizers and one line input for connecting the mixer to a building's alarm system. The mixer also features one microphone input with phantom power, gain, and a ducker that can lower the volume of the music when making announcements.

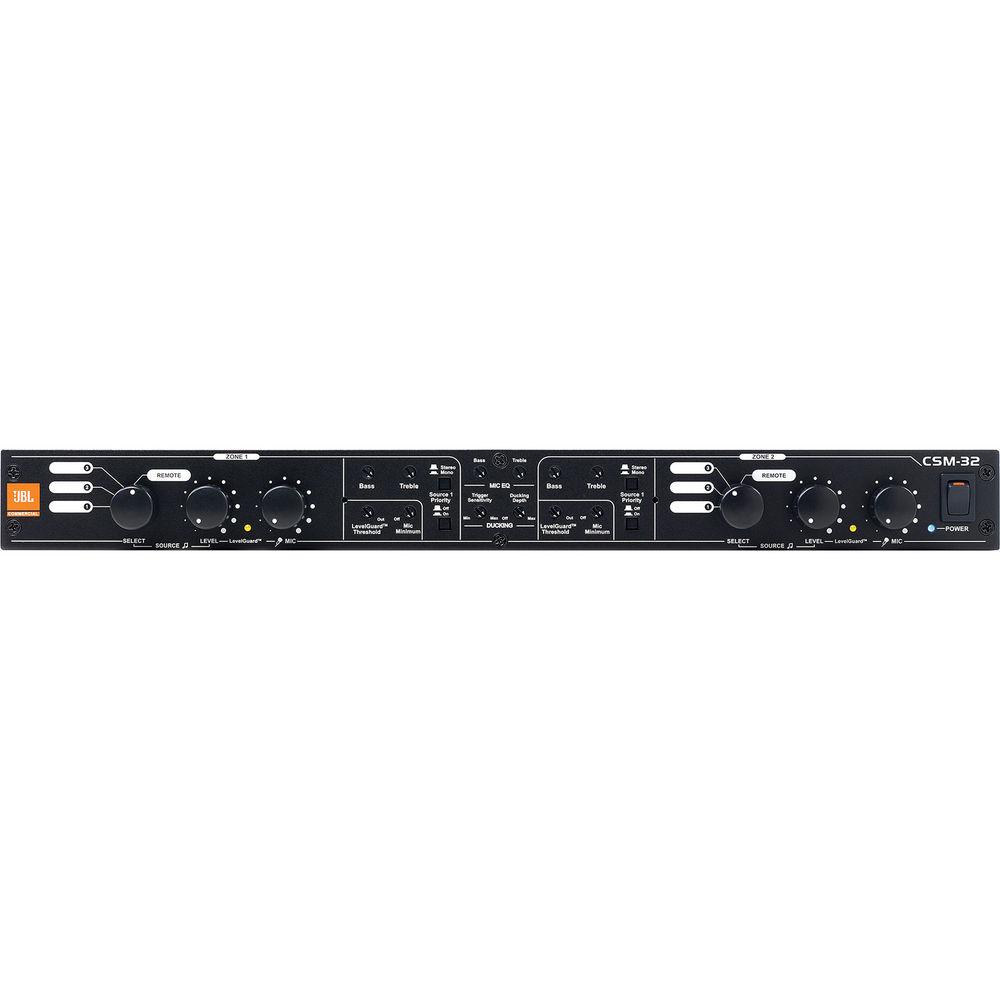

The unit features two stereo outputs with zone equalizers, active crossovers, and separate subwoofer outs. An additional music-only mono output is provided for telephone music-on-hold systems. Designed with a simple analog style control panel, a knob switches between audio from source 1, audio from source 2, and remote control of the mixer. The unit does not require a computer to operate. An included security plate can be installed over the front panel to prevent changes to the unit's controls once configured.
The mixer works with CSR remote controllers, allowing you to use a remote to select the source and adjust the volume of each zone. Additional output zones may be added to the system by connecting multiple CSM mixers together using a Cat5 cable plugged into the unit's RJ45 link ports. With the above features, the mixer provides flexible options for different commercial sound applications. - LevelGuard
- LevelGuard optimizes the compression of incoming source signals to keep the overall output signal under control. The threshold of the LevelGuard is adjustable by turning the threshold pot on the front of the mixer
- AutoWarmth
- The AutoWarmth automatically optimizes the tonal balance and musical character of incoming source signals. The threshold of the AutoWarmth is adjustable by turning the threshold pot on the back of the mixer
- Mic Minimum
- The mic minimum trim pot sets the minimum output volume level for the microphone. The main mic volume control knob will not go below this level, ensuring the microphone will be heard during announcements
- Source 1 Priority and Priority Hold
- The Source 1 Priority on/off button determines whether Source 1 will override sources 2 and 3. The priority hold pot adjusts the time it takes for the other input sources to take effect after the priority source is finished playing
- Limiter
- A built in limiter prevents the signal from clipping
- Mono and Stereo Operation
- A push button switches the output of the mixer between mono and stereo
- Music Volume Ducking for Microphone Announcements
- The mixer allows you to adjust the ducking depth sensitivity of the music volume while using the microphone input to make announcements. The ducking depth sensitivity can be set between cutting the music out completely to no ducking at all during announcements
- Remote Controls
- The mixer can be controlled by the optional JBL CSM remote controls CSM-V, CSR-2SV, and CSR-3SV which connect to the mixer's RJ-45 remote port
UPC: 691991401312 In the Box JBL CSM-32 3 x 2 Stereo Public Address Mixer Power Supply Security Plate 2 x Rack Mounting Brackets Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSM-32 3 x 2 Stereo Public Address Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSM-32 Specs | | | Type | 3 x stereo, unbalanced RCA connectors | | Nominal Sensitivity | -10 dBV | | Input Impedance | 20 kΩ | | Maximum Input | +12 dBu | | Equalization | Bass ±10 dB @ 80 Hz
Treble ±10 dB @ 8 kHz, 6 dB/octave shelf | | | | Type | 1 x balanced, 0.2" (5.08 mm) Euroblock connector | | Input Impedance | 2 kΩ | | Noise | EIN <117 dB, 150 Ω, DSP band-limited 120 to 8,0000 Hz, BW24 | | Maximum Input | +20 dBu | | Equalization | Bass ±6 dB @ 250 Hz, Treble ±6 dB @ 2 kHz, 6 dB/octave shelf | | CMRR | >40 dB, typically >55 dB @ 1 kHz | | Preamp Overall Gain | +30 dB to +60 dB adjustable | | Phantom Power | +48 VDC , 10 mA | | | | Type | 2 x stereo (Left, Right, Sub) balanced 1/8" (3.5 mm), Euroblock connector | | Output Impedance | 120 Ω balanced | | Maximum Output Level | +20 dBu | | Crossover Frequencies |
Left and Right in: 125 Hz high-pass (BW24)
Sub in: 125 Hz low-pass (BW24)
Left and Right out: 20 to 20,000 Hz
Sub out : 20 to 20,000 Hz (mono summed) | | LED INDICATORS | Source inputs:
Signal present LED (turns on at -20 dBu)
Signal clip LED (turns on at +10 dBu)
Mic input:
Signal present LED (turns on at -20 dBu)
Signal clip LED (turns on at +18 dBu) | | | | Frequency Response | 20 to 20,000 Hz, ±0.1 dB | | Dynamic Range | 104 dB, A-weighted, 20 to 20,000 Hz | | Converter | Mic input implements dbx Type IV conversion system | | Sample Rate | 48 kHz | | Crosstalk | >75 dB | | THD & Noise | 0.005% typical at +4 dBu, 20 to 20,000 Hz, 0 db gain | | | | Direct Inputs | 1 x Balanced, 1/4" (5.08 mm) Euroblock connector
Input impedance: 10 kΩ
Maximum input: +20 dBu
Frequency response: 20 to 20,000 Hz | | Mute | 1 x 2-pin 1/4" (5.08 mm) Euroblock connector
Connecting the pins mutes all source inputs, does not mute mic input. | | Paging | 1 x 2-pin 1/4" (5.08 mm) Euroblock connector
Connecting zone pins to ground assigns page to that respective zone | | Link | Source: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9' (2.4 m)
Main: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9' (2.4 m) | | USB | 1 x USB Type B port for firmware updates | | | | Power Consumption | 10 W | | Power Requirements | 100 to 240 V thermal fuse in external transformer | | Rack Mountable | Yes with included brackets | | Dimensions (H x W x D) | 19.0 x 1.8 x 7.0" (48.3 x 4.6 x 17.8 cm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 22.0 x 11.0 x 2.5" |
