User Manual for JBL CSMA 180 Commercial Series Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the JBL CSMA 180 Commercial Series Mixer
- Product category: Mixer/Amplifiers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Mixer/Amplifiers
 |
User manual for the JBL CSMA 180 Commercial Series Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

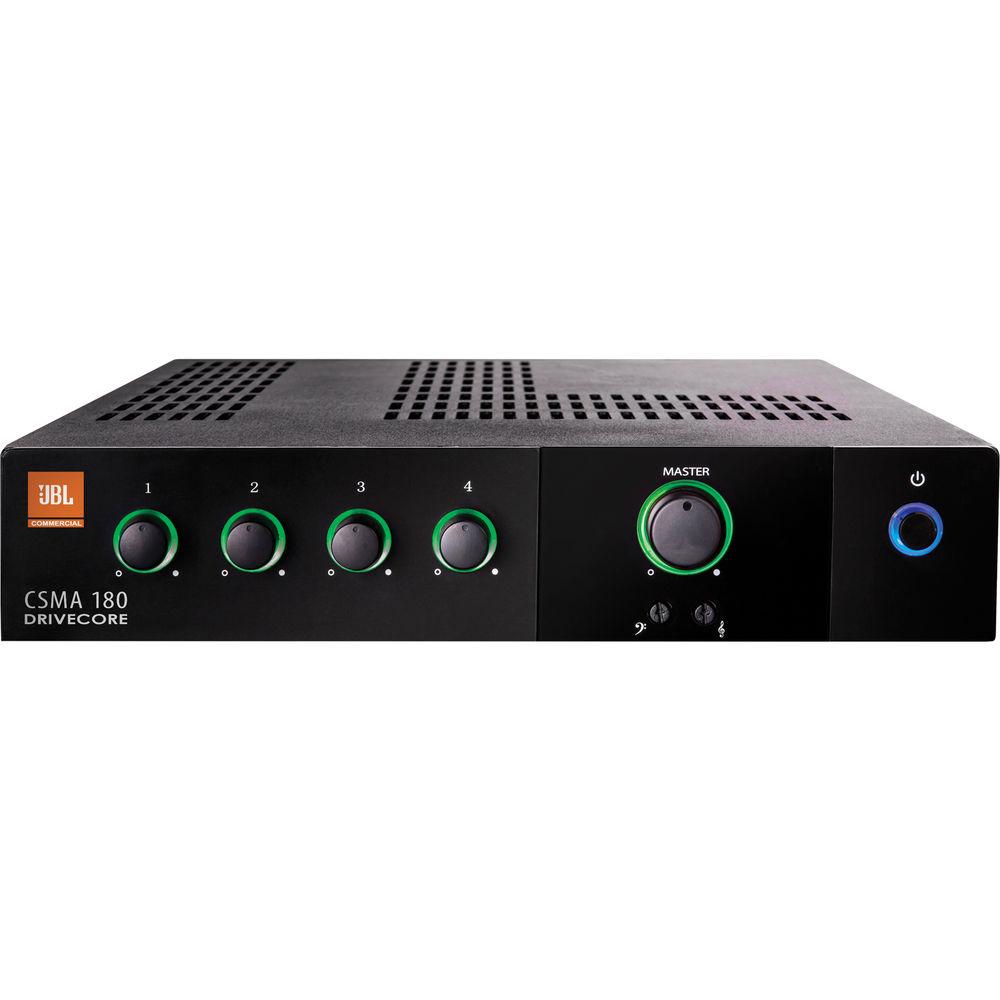

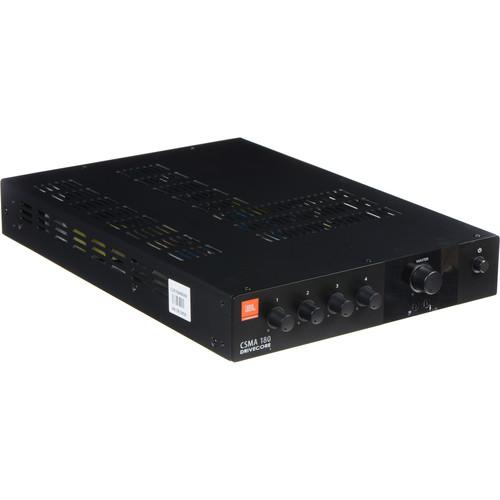

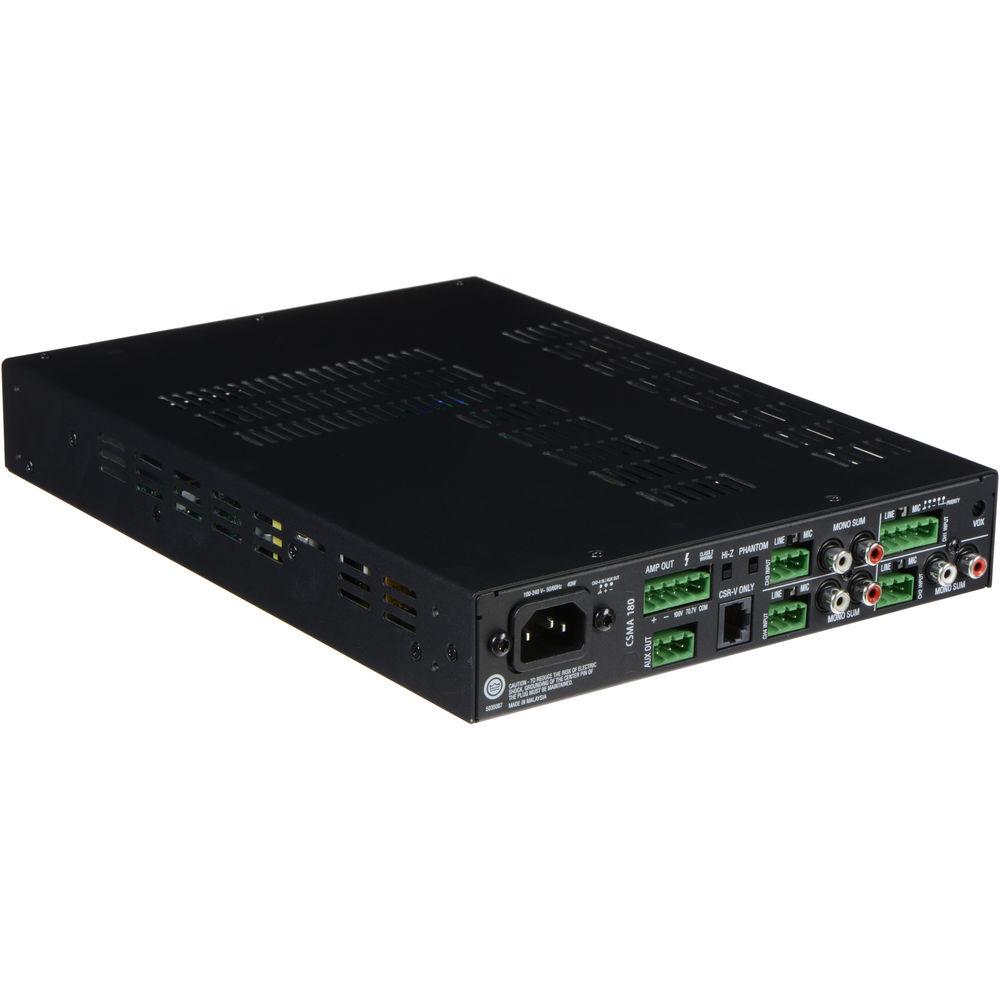

Product description Designed for commercial and industrial use, the CSMA 180 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with four mixer-channel inputs and one output channel. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as a master volume adjustment knob, bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find the mic/line inputs, unbalanced RCA inputs, speaker connections, Hi-Z and phantom power switches, and more. The unit is also equipped with a RJ45 connector for use with JBL CSR-V in-wall volume controls (available separately). This Commercial Series mixer/amplifier boasts such features as voice activating ducking (useful for paging over background music), priority muting for channel one's input, and a sleep mode which automatically powers down the unit when no audible signal has been received for longer than 30 minutes. Also, with an auxiliary output, you may connect to an additional amplifier, though the master volume and tone controls will have no bearing on the resulting signal. - Channel Modes
- Four inputs into one output channel with 80W of power.
- Controls
-
- Independent Bass and Treble controls for each output channel.
- Input level and output volume controls.
- Hi-Z Switch
- The Hi-Z switch will switch in the built-in output transformer allowing the unit to drive 70V or 100V speaker systems directly when connected to the appropriate output terminals.
- Phantom Power
- Phantom power (27 V) can be applied to all mic inputs by turning on the phantom power switch.
- VOX Function
- Voice activated ducking is available on input channel one. The audio input level required to activate ducking is set using the trim pot on the rear panel. Adjusting in the counter-clockwise direction will reduce that level, while the full clockwise setting will disable the VOX function.
- Priority Muting
- Input Channel one may be used as a priority channel, muting all other channels when pins four and five are shorted using a switch closure. If the amplifier has entered sleep mode due to inactivity, invoking priority will also bring the unit out of sleep and ready for transmitting an announcement.
- Remote Volume Control
- Remote volume control can be implemented using a CSR-V controller connected via an Ethernet cable to the RJ45 connector on the back panel.
- Sleep Mode
- This unit is designed to go into sleep mode after approximately 30 minutes operating with no signal at any of the inputs. Return of signal (-40 dBu or 7.75mVRMS) to any input will wake the unit. Also, a switch closure across the priority input pins will return the unit to normal operating mode.
- Auxiliary Output
- An auxiliary output that you may connect to additional amplifiers is available. The audio signal is the mix of the input channels. Note that the master volume control and tone controls will have no effect on the aux output signal.
- Manufacturing
-
- Crown's DriveCore technology
- HARMAN's GreenEdge environmental standards
- Additional Features
-
- Suitable for commercial and industrial use
- Ideal for commercial and industrial
- Euro-block type mic/line input connectors and output connectors
- Configurable output routing
UPC: 871015007380 In the Box JBL CSMA 180 Commercial Series Mixer/Amplifier Rack Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CSMA 180 Commercial Series Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CSMA 180 Specs | Maximum Output Power | 80 W per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤ 0.5% THD | | Insertion Loss | 1 dB maximum for 70 and 100 V outputs | | Continuous Power | 10 W per channel | | Line Output Level | 5.0 V RMS into 10 kOhms | | Input Sensitivity | To obtain full rated power at 8 Ohms (or 5 VRMS to line output)
Mic Input: 3 mV RMS
Line Input: 775 mV RMS
RCA Input: 300 mV RMS | | Number of Channels | Input: 4
Output: 1 | | Frequency Response | Measured at 2.83 V RMS into rated load impedance at any output
4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB
70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB
Line Out: 20 Hz - 20 kHz, ±1 dB | | Total Harmonic Distortion (THD) | Power Amplifier Output: <0.5%, 20 Hz to 20 kHz
Line Output: 0.05% typical Measured at 2.83 V RMS into rated load impedance at any output | | Signal to Noise Ratio | > 90 dB | | Nominal Input Impedance | Mic: 400 Ohms
Line: 20 kOhms (balanced)
RCA: 50 kOhms | | Minimum Load Impedance | Low Impedance Output: 4 Ohms
70 V Output: 60 Ohms
100 V Output: 120 Ohms | | Crosstalk | -70 dB @ 1 kHz | | Controls | Front Panel:
4 x Input level rotary knob
1 x Output volume attenuator, rotary knob
1 x Power switch
1 x Bass potentiometer
1 x Treble potentiometer
Rear Panel:
1 x Hi-Z switch
1 x Phantom power switch
4 x Mic/Line selector switches
1 x VOX adjustment | | Indicators | Front Panel:
4 x Input signal presence ring, green
1 x Output volume ring, green
1 x Power switch ring, green/blue | | Connectors | Rear Panel:
1 x IEC power input
1 x 5-pin amplifier output
1 x 3-pin auxiliary line level output
1 x RJ45, remote volume
3 x 3-pin Euroblock Mic/Line input
3 x Dual RCA stereo input
1 x 5-pin Euroblock Priority input | | Operating Temperature / Humidity | 32 to 95°F / 0 to 35°C, 95% RH (non-condensing) | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Phantom Power | 27 VDC | | AC Input | 100 to 240 VAC, 50/60 Hz | | Dimensions (W x D x H) | 8.6 x 11.9 x 1.7" / 21.9 x 30.3 x 4.3 cm | | Weight | Approximately 6.8 lb / 3.1 kg | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 16.3 x 12.2 x 5.0" |
