User Manual for JBL CWT128 8" 2-Way Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL CWT128 8" 2-Way Loudspeaker System
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL CWT128 8" 2-Way Loudspeaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

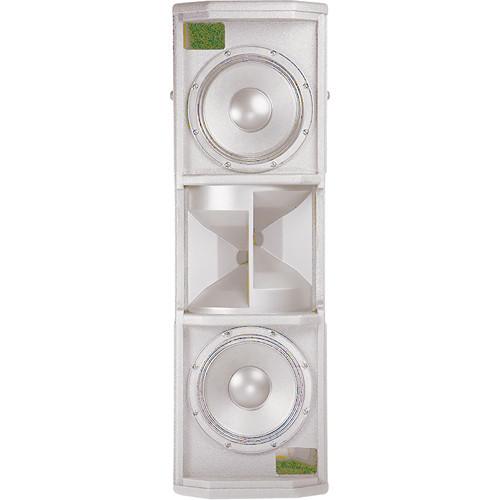

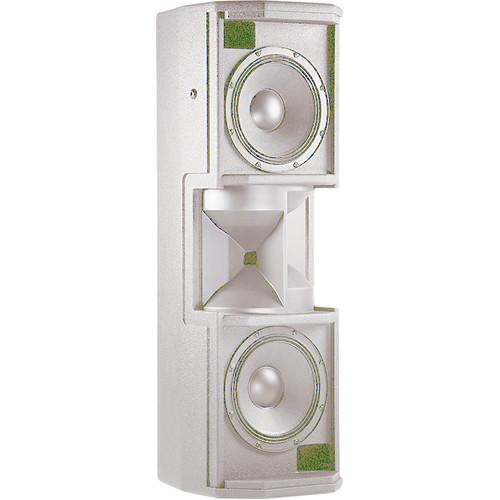

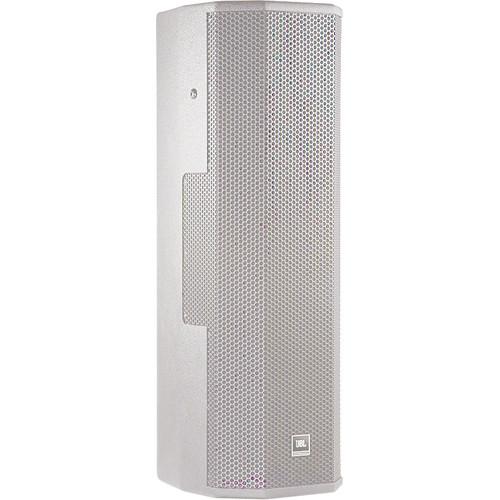

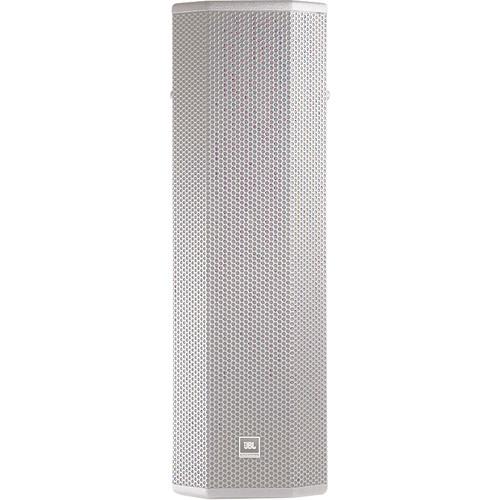

Product description The white CWT128 8" 2-Way Loudspeaker System from JBL is a compact full-range 2-way system designed to provide wide angle coverage up to 160° horizontally and 60° vertically. Comprised of two neodymium compression drivers, the system is capable of a rated maximum SPL of 129 dB. Dual 8" JBL low frequency drivers feature a copper clad aluminum edge wound 2.5" voice coil and copper clad pole piece for reducing voice coil inductance and distortion. An internal passive network and transformer with barrier strip terminal input is featured for permanent installation. The multi-ply hardwood enclosure is designed with multiple mounting points and finished with a powder coated steel grille. - Dual 8" / 205 mm LF transducers
- Dual 1" exit, 1.5 " diaphragm compression driver
- 160° x 60° coverage angle
- M8 and M10 attachment points built in across the top and sides for installation
In the Box JBL CWT128 8" 2-Way Loudspeaker System (White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CWT128 8" 2-Way Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CWT128 Specs | Frequency Range | (-10 dB): 71 Hz - 20 kHz | | Frequency Response ± 3dB | 96 Hz - 19 kHz | | Coverage | Horizontal: 160°
Vertical: 60° | | Power Capacity | 850/1700/3400 W
Long Term: 450 W (1800 peak) | | Maximum Sound Pressure Level (SPL) | 129 dB | | Nominal Sensitivity | 94 dB SPL @ 1 W 1m | | Impedance | 8 ohms | | Crossover | 1.5 kHz | | Transformer Taps | 70 V: 110 W, 55 W, 28 W
100 V: 110 W, 55 W | | Low Frequency Driver | 2 JBL 228J 8" / 205 mm SFG driver with 2.5" / 64 mm edge wound voice coil | | High Frequency Driver | 2 x JBL 2408H-1 1" / 25 mm exit compression driver, 1.5" / 38 mm voice coil | | Enclosure Material | Multi-ply hardwood plywood | | Input Connections | Covered barrier strip terminals which accept up to 5.2 mm² (10 AGW) wire or max width 0.375" / 9 mm spade lugs | | Dimensions | 31.94 x 10.22 x 11.84" / 811.28 x 259.59 x 300.74 mm | | Weight | 40.9 lb / 18.6 kg |
