User Manual for JBL CWT128-WRC Dual-8" 2-Way Loudspeaker System with CWT Crossfired Waveguide Technology Click to enlarge the picture
Contents of the user manual for the JBL CWT128-WRC Dual-8" 2-Way Loudspeaker System
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL CWT128-WRC Dual-8" 2-Way Loudspeaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

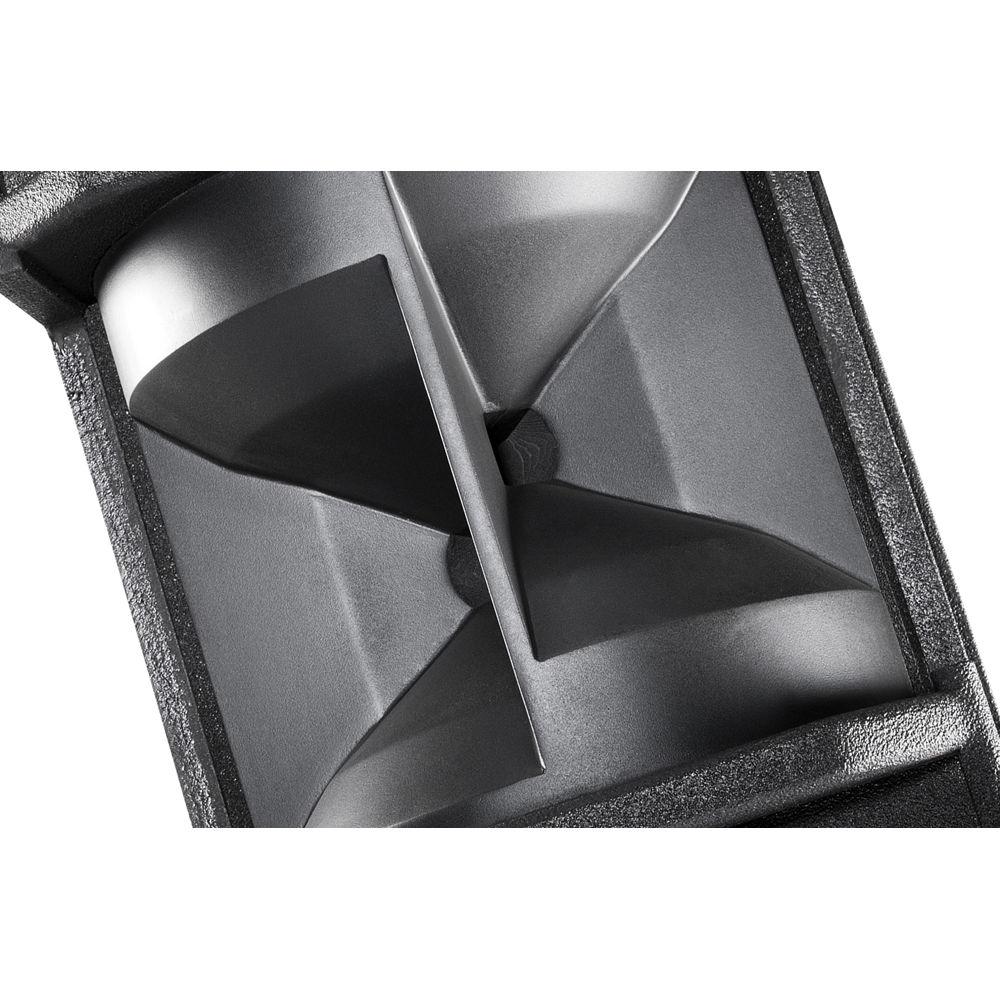

Product description The CWT128-WRC Dual-8" 2-Way Loudspeaker System with CWT Crossfired Waveguide Technology from JBL is designed to provide wide-angle coverage with maximum bandwidth and SPL in a single system. The wide coverage-pattern horn offers seamless coverage of up to 160° horizontally, and the waveguide is split in half and loaded with two compression drivers facing in different directions for dispersing sound. There are SFG LF drivers for combining smooth response, extended low-frequency bandwidth, and extremely low distortion, delivering an optimum balance of efficiency and bass response. The CWT128-WRC features an exterior DuraFlex coating and an interior wood sealer for use in protected outdoor areas. The loudspeaker's compact size enables use in architecturally sensitive environments. - Seamless horizontal coverage across a full 160°
- Compact size and small footprint for architecturally sensitive environments
- Dual-8.1" / 205mm LF transducers
- Extremely wide coverage waveguide (160 x 60°)
- Dual-1.0"/25mm exit, and 1.5"/38mm-diaphragm compression driver
- Install using four built-in M10 attachment points across the top and sides
- Four M8 points on the back panel accept OmniMount wall-mounting brackets
In the Box JBL CWT128-WRC Dual-8" 2-Way Loudspeaker System with CWT Crossfired Waveguide Technology Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL CWT128-WRC Dual-8" 2-Way Loudspeaker System with CWT Crossfired Waveguide Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CWT128 Specs | System Format | Wide-Angle Coverage Dual-8" 2-Way Loudspeaker System | | Frequency Range | At -10 dB: 71 Hz to 20 kHz | | Frequency Response ± 3dB | 96 Hz to 19 kHz | | Coverage Pattern | 160 x 60° | | System Sensitivity | 94 dB SPL, 1 W, 3.3' / 1.0 m | | Maximum SPL | Rated (3.3' / 1.0 m): 129 dB | | Nominal Impedance | 8 ohms | | Long-Term System Power Rating | 450 W (1800 W Peak) | | Power Rating | 850 W / 1700 W / 3400 W continuous / program / peak | | Crossover | 1.5 kHz | | Low Frequency Driver | 2 x JBL 228J, 8.1" / 205.0 mm SFG driver with 2.5" / 64.0 mm edge wound voice coil | | High-Frequency Waveguide | Crossfired waveguide | | Approvals | IP55 per IEC 529 | | Finish | Exterior: 0.1" / 1.5 mmDuraFlex coating
Interior: wood sealer | | Dimensions | 31.9 x 10.2 x 11.8" / 81.1 x 26.0 x 30.1 cm | | Weight | 41.0 lb / 18.6 kg |
