JBL Dual EON610 10" 2-Way Powered

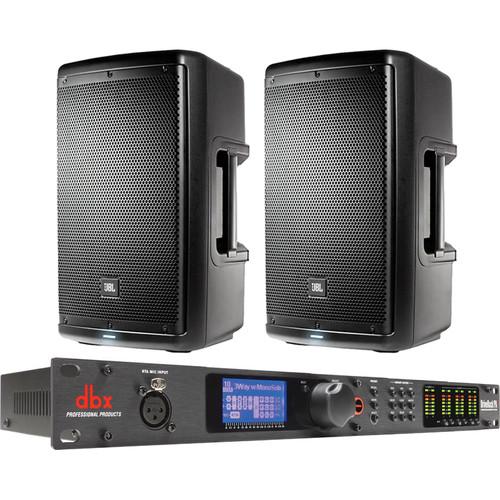

User Manual for JBL Dual EON610 10" 2-Way Powered Speakers & dbx DriveRack PA2 Speaker Management System

• Product category: PA Speakers JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL PA Speakers

Product description

• 2 x JBL EON610 - 10" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker The JBL EON610 is a two-way 1000W peak Class-D amplifier driven live sound reinforcement speaker that combines a wave-guided high-frequency driver with a 10" woofer in a bass-reflex cabinet. The speaker was designed from the ground up by JBL engineers to leverage the latest advancements in cabinet materials, acoustic science, transducer design, and integrated Bluetooth controllable DSP.

  The combination of the 300W peak powered wave-guided high-frequency transducer and the 700W peak powered 10" woofer with bass-reflex ports delivers a frequency range of 52 Hz to 20 kHz at -10 dB and a frequency response of 60 Hz to 20 kHz at +3 dB over a 110 x 60° coverage pattern with a Max SPL output of 124 dB for a wide range of applications. The coverage pattern of the Image Control Waveguide is designed to match the high frequencies, crossover point, and low frequencies to deliver a more consistent on-axis and off-axis response. This allows the speaker to sound the same to members of the audience throughout the coverage pattern.

  Inputs are provided on dual combination mic or line XLR-1/4" input connectors with individual signal gain knobs and a master volume knob for the overall level. An XLR loop-thru allows you to route the signal to additional EON600 series speakers.

  To enable fine tuning of the speaker in different acoustic environments, the speaker includes a built-in DSP processor with Bluetooth v.4 control through an iOS or Android app. The app provides wireless control over the speaker's 5-band parametric EQ, saving and recalling presets, and adjusting the master volume.

  A push button on the back of the speaker allows you to physically switch between four different modes: Main, Monitor, Speech, and Sub for when incorporating a dedicated subwoofer. Additional controls include a button for engaging the built-in EQ, disabling the speaker's front LED indicator light, and configuring Bluetooth control.

  The speaker is designed to work in a variety of configurations including on its side as a floor monitor, vertically as a floor monitor, suspended from above, placed on a tripod stand, placed on a pole mount on top of a subwoofer, or stacked on top of one another using their molded index feet.
  Image Control Waveguide
  • Delivers consistent treble and mid frequencies throughout the speaker's 110 x 60° coverage pattern
  Bass-Reflex Design
  • Extends low-frequency response
  Bluetooth V4.0 Controllable DSP
  • Enables wireless control of 5-band parametric EQ, master volume, and saving and recalling user presets
  XLR Loop-Thru
  • Enables routing the signal to additional EON600 speakers
  UPC: 050036904797
• dbx DriveRack PA2 Complete Loudspeaker Management System The dbx DriveRack PA2 Complete Loudspeaker Management System is a loudspeaker management system that can be controlled via your Mac, PC, or mobile iOS or Android device. Using an optional microphone connected to its RTA input, its AutoEQ function can be employed to listen to your room and automatically EQ it for optimized speaker performance. The AFS (Advanced Feedback Suppression) feature is designed to eliminate feedback while preserving the sound of your system.

  In addition to automated functions, the DriveRack has integrated dbx compression and limiting as well as both a graphic and 8-band parametric EQ section. It also features driver-alignment delays and a crossover section that supports full-range, 2-way, and 3-way systems. You can control the DriveRack PA2 directly by connecting from your Mac or PC via the rear-panel USB port, or connect the PA2 to a wireless router via its Ethernet port for compatibility with iOS or Android devices.
  AutoEQ
  • The AutoEQ algorithm is designed to ensure an accurate, fast, and non-intrusive automatic EQ experience.
    With an optional mic connected to the RTA Mic input "listening" to your room, the DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise
  AFS Feedback Elimination
  • The Advanced Feedback Suppression (AFS) algorithm allows for faster, more precise feedback elimination, without adversely affecting your system's tone.
    The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before feedback can start, while never altering your sound
  Wizard Setup Functions
  • Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.
    Wizard functions on the DriveRack PA2 to guide you through step-by-step processes to help you get the most from your loudspeaker system. It helps you configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers
  Input Processing
  • • dbx Compression
    • AFS (Advanced Feedback Suppression)
    • Graphic EQ
    • 8-Band Parametric EQ (adjusted when using the AutoEQ)
    • Subharmonic Synthesis
  Output Processing
  • • Crossover (supports full range, 2-way, and 3-way systems)
    • 8-Band Parametric EQs (used for speaker tunings)
    • dbx Limiting
    • Driver Alignment Delays
  UPC: 691991401480

• 2 x EON610 - 10" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker bzxyvswetzwqzxfcdzbewzsvrdbzzasz
• Power Cord
• Limited 1-Year Warranty

• dbx - DriveRack PA2 Complete Loudspeaker Management System

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL EON610 - 10" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker

  Configuration	Passive 2-Way
  Enclosure Type	Bass-Reflex Loudspeaker
  Total Power Capacity	1000 W Peak 500 W RMS
  Amplifier Power Rating	LF: 700 W Peak 350 W RMS HF: 300 W Peak 150 W RMS
  Amplifier Class	Class-D

  LF Driver	1 x 10" / 254 mm Woofer

  Frequency Range	52 Hz to 20 kHz -10 dB
  Frequency Response	60 Hz to 20 kHz ±3 dB
  Maximum SPL	124 dB
  Coverage Angle	110° H x 60° V

  Audio I/O	2 x Combo XLR / 1/4" 1 x XLR Thru

  Parametric EQ	Yes

  Dimensions	22.0 x 12.7 x 11.6" / 55.8 x 32.2 x 29.5 cm
  Weight	26 lb / 11.7 kg

  Box Dimensions (LxWxH)	25.0 x 15.0 x 13.0"

• dbx DriveRack PA2 Complete Loudspeaker Management System

  Analog Inputs	Number of Inputs: 2 x line inputs, 1 x RTA mic input Connectors: 2 x female XLR line inputs, 1 x female XLR RTA mic input Type: Electronically balanced/RF filtered Impedance: > 50 kOhms Max Input Level (line inputs): > +20 dBu CMRR: > 45 dB RTA Mic Preamp Phantom Power: +15 VDC
  Analog Outputs	Number of Outputs: 6 x line outputs Connectors: Male XLR Type: Electronically balanced, RF filtered Impedance: 120 Ohms Max Output Level: +20 dBu Alignment Delay: Up to 10 ms per output channel pair
  A/D and D/A Conversion	A/D Performance A/D Converter: 24-bit with dbx Type IV Conversion System A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22 kHz BW 121 dB with transient material, unweighted, 22 kHz BW 115 dB typical with program material, A-weighted, 22 kHz BW D/A Performance D/A Converter: 24-bit D/A Dynamic Range: 112 dB A-weighted, 110 dB unweighted
  Internal Processing	32-bit floating point
  Sample Rate	48 kHz
  Dynamic Range	A-Weighted: 110 dB Unweighted: 107 dB
  THD + N	0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
  Frequency Response	20 Hz to 20 kHz, (+0 /- 0.5 dB)
  Crosstalk	Interchannel Crosstalk: < -110 dB, -120 dB typical (input-to-output: < -100 dB)
  Latency	Input to output: 1.847 ms
  Power	Operating Voltage: 100 to 120 VAC 50/60 Hz or 220 to 240 VAC 50/60 Hz Power Consumption: 22 W
  Dimensions (H x D x W)	1.8 x 5.8 x 19.0" / 44.5 x 146.1 x 482.6 mm
  Weight	5.3 lb / 2.4 kg

  Box Dimensions (LxWxH)	22.3 x 11.5 x 3.8"
