Product description

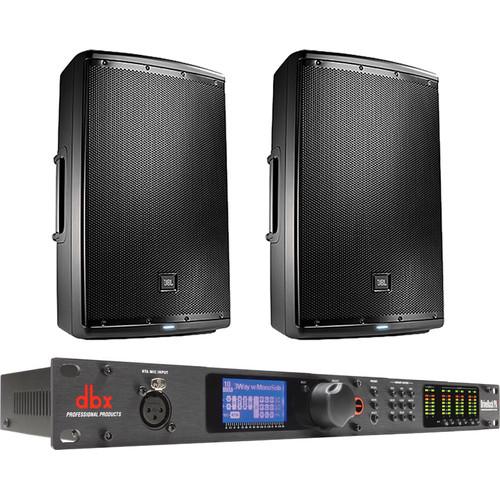

• 2 x JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control The EON615 from JBL is a 15" two-way powered speaker system with 1000W of Class-D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. It works as a single speaker, in a stereo set up with another top cabinet and a subwoofer, as a floor-monitor, or in permanent install applications.

  The speaker features onboard factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with an EON subwoofer. It also has a speech setting for increased vocal intelligibility in PA and announcement applications.

  The rear panel provides XLR-1/4" combo inputs for each of the speaker's two channels, along with individual gain controls and signal presence LEDs. Both inputs are mic or line selectable and a master volume knob adjusts overall system level.

  The EON615 also features an iOS and Android supported Bluetooth interface for controlling master volume, adjusting the parametric EQ, and saving and recalling user presets.
  Features:
  • • Two-channel mixer with XLR-1/4” combination inputs
    • Both inputs are mic or line selectable
    • Convenient application EQ presets available from the back panel
    • XLR loop-thru for routing signal to additional EON600 series speakers
  Configurations:
  • • Single speaker on a stand for public address
    • Full-range stereo set up with two top cabinets and a subwoofer for live performance or DJ
    • Floor monitor option for bands and performances
    • Suspend cabinet for use in commercial installations or houses of worship
  UPC: 050036904810
• dbx DriveRack PA2 Complete Loudspeaker Management System The dbx DriveRack PA2 Complete Loudspeaker Management System is a loudspeaker management system that can be controlled via your Mac, PC, or mobile iOS or Android device. Using an optional microphone connected to its RTA input, its AutoEQ function can be employed to listen to your room and automatically EQ it for optimized speaker performance. The AFS (Advanced Feedback Suppression) feature is designed to eliminate feedback while preserving the sound of your system.

  In addition to automated functions, the DriveRack has integrated dbx compression and limiting as well as both a graphic and 8-band parametric EQ section. It also features driver-alignment delays and a crossover section that supports full-range, 2-way, and 3-way systems. You can control the DriveRack PA2 directly by connecting from your Mac or PC via the rear-panel USB port, or connect the PA2 to a wireless router via its Ethernet port for compatibility with iOS or Android devices.
  AutoEQ
  • The AutoEQ algorithm is designed to ensure an accurate, fast, and non-intrusive automatic EQ experience.
    With an optional mic connected to the RTA Mic input "listening" to your room, the DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise
  AFS Feedback Elimination
  • The Advanced Feedback Suppression (AFS) algorithm allows for faster, more precise feedback elimination, without adversely affecting your system's tone.
    The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before feedback can start, while never altering your sound
  Wizard Setup Functions
  • Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date.
    Wizard functions on the DriveRack PA2 to guide you through step-by-step processes to help you get the most from your loudspeaker system. It helps you configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers
  Input Processing
  • • dbx Compression
    • AFS (Advanced Feedback Suppression)
    • Graphic EQ
    • 8-Band Parametric EQ (adjusted when using the AutoEQ)
    • Subharmonic Synthesis
  Output Processing
  • • Crossover (supports full range, 2-way, and 3-way systems)
    • 8-Band Parametric EQs (used for speaker tunings)
    • dbx Limiting
    • Driver Alignment Delays
  UPC: 691991401480

• 2 x EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control frcdrxubbfrtuytftz
• Power Cable
• Limited 1-Year Warranty

• dbx - DriveRack PA2 Complete Loudspeaker Management System

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control

  Configuration	Active 2-Way
  Enclosure Type	Bass-Reflex Loudspeaker
  Total Power Capacity	1000 W
  Amplifier Power Rating	2 x 500 W
  Amplifier Class	Class-D

  LF Driver	1 x 15" / 381 mm Woofer

  Frequency Range	39 Hz to 20 kHz -10 dB
  Frequency Response	50 Hz to 20 kHz ±3 dB
  Maximum SPL	127 dB
  Coverage Angle	90° H x 50° V

  Dimensions	27.8 x 17.3 x 14.4" / 70.7 x 43.9 x 36.5 cm
  Weight	39 lb / 17.7 kg

  Box Dimensions (LxWxH)	30.75 x 18.5 x 16.0"

• dbx DriveRack PA2 Complete Loudspeaker Management System

  Analog Inputs	Number of Inputs: 2 x line inputs, 1 x RTA mic input Connectors: 2 x female XLR line inputs, 1 x female XLR RTA mic input Type: Electronically balanced/RF filtered Impedance: > 50 kOhms Max Input Level (line inputs): > +20 dBu CMRR: > 45 dB RTA Mic Preamp Phantom Power: +15 VDC
  Analog Outputs	Number of Outputs: 6 x line outputs Connectors: Male XLR Type: Electronically balanced, RF filtered Impedance: 120 Ohms Max Output Level: +20 dBu Alignment Delay: Up to 10 ms per output channel pair
  A/D and D/A Conversion	A/D Performance A/D Converter: 24-bit with dbx Type IV Conversion System A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22 kHz BW 121 dB with transient material, unweighted, 22 kHz BW 115 dB typical with program material, A-weighted, 22 kHz BW D/A Performance D/A Converter: 24-bit D/A Dynamic Range: 112 dB A-weighted, 110 dB unweighted
  Internal Processing	32-bit floating point
  Sample Rate	48 kHz
  Dynamic Range	A-Weighted: 110 dB Unweighted: 107 dB
  THD + N	0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
  Frequency Response	20 Hz to 20 kHz, (+0 /- 0.5 dB)
  Crosstalk	Interchannel Crosstalk: < -110 dB, -120 dB typical (input-to-output: < -100 dB)
  Latency	Input to output: 1.847 ms
  Power	Operating Voltage: 100 to 120 VAC 50/60 Hz or 220 to 240 VAC 50/60 Hz Power Consumption: 22 W
  Dimensions (H x D x W)	1.8 x 5.8 x 19.0" / 44.5 x 146.1 x 482.6 mm
  Weight	5.3 lb / 2.4 kg

  Box Dimensions (LxWxH)	22.3 x 11.5 x 3.8"
