JBL EON ONE All-In-One Linear Array

Search your instruction manual in PDF to download

User Manual for JBL EON ONE All-In-One Linear Array PA System

Click to enlarge the picture
JBL EON ONE All-In-One Linear Array PA System Contents of the user manual for the JBL EON ONE All-In-One Linear Array
  • Product category: Portable PA Systems JBL
  • Brand: JBL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for JBL Portable PA Systems

JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System JBL EON ONE All-In-One Linear Array PA System
User manual for the JBL EON ONE All-In-One Linear Array contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any JBL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!



Product description

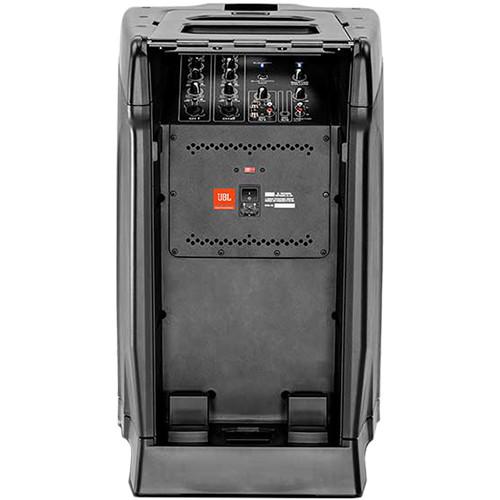

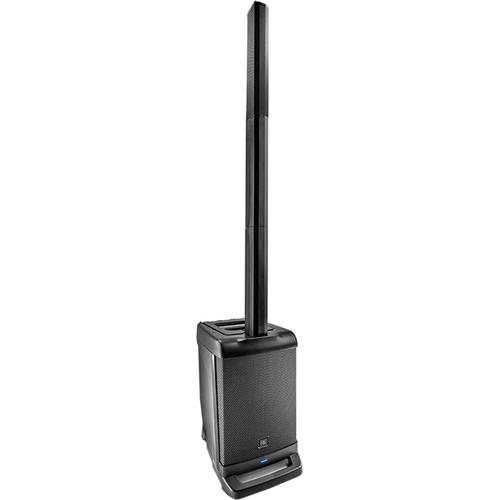

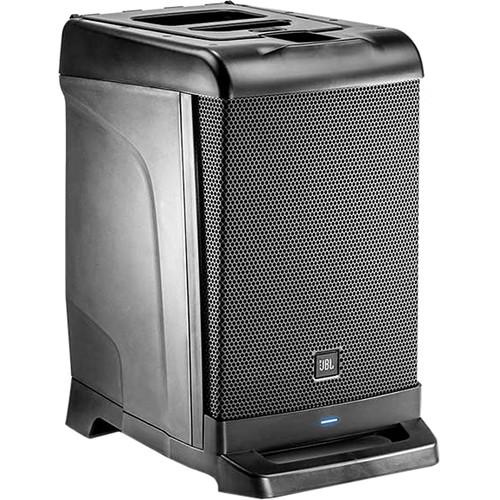

Be Heard with JBL Compact and Portable Linear-Array PA Systems Read More The EON ONE from JBL is an all-in-one compact PA system that delivers professional-quality audio for live performances, meetings, conferences, and more. The base unit houses the 380W amplifier, 10" unobstructed subwoofer, and the 6-channel mixer. The high-frequency element features patent-pending Directivity Control Geometry, which optimizes the spacing and angles of the six high-frequency drivers to create a remarkable front-to-back coverage.

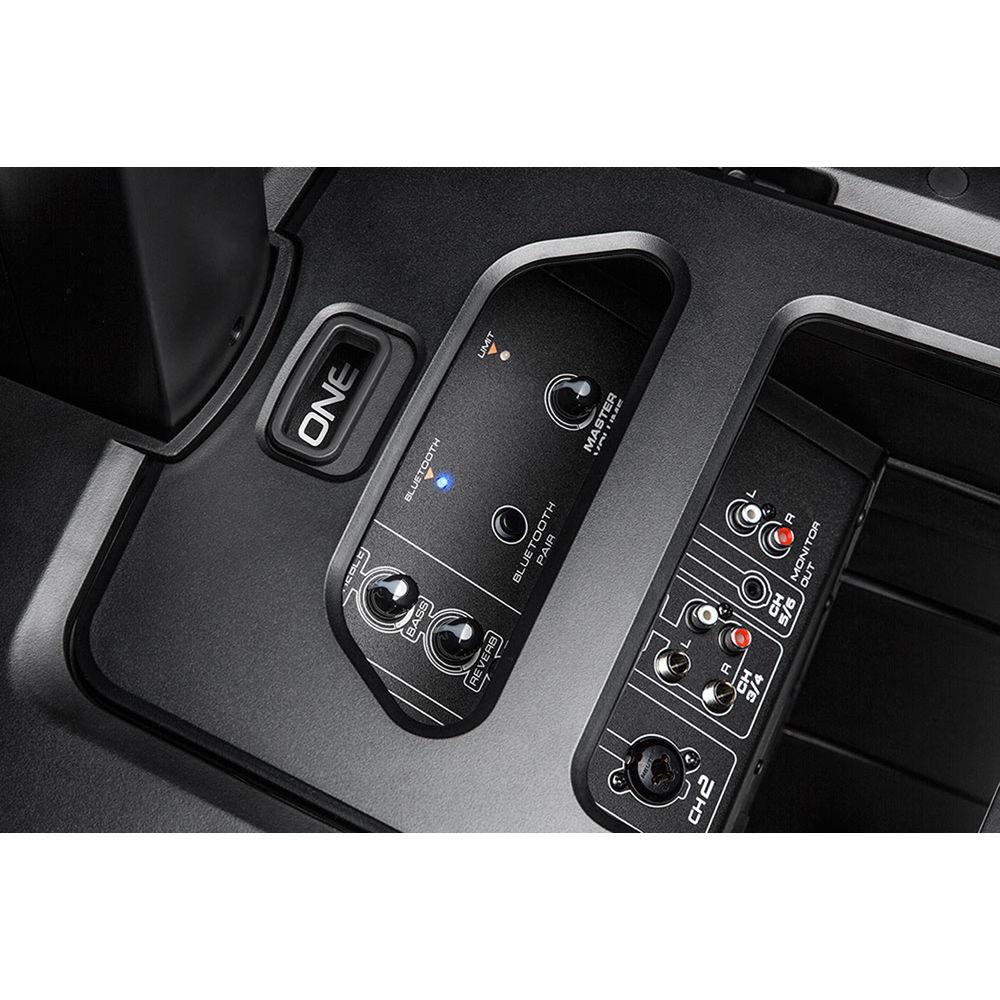

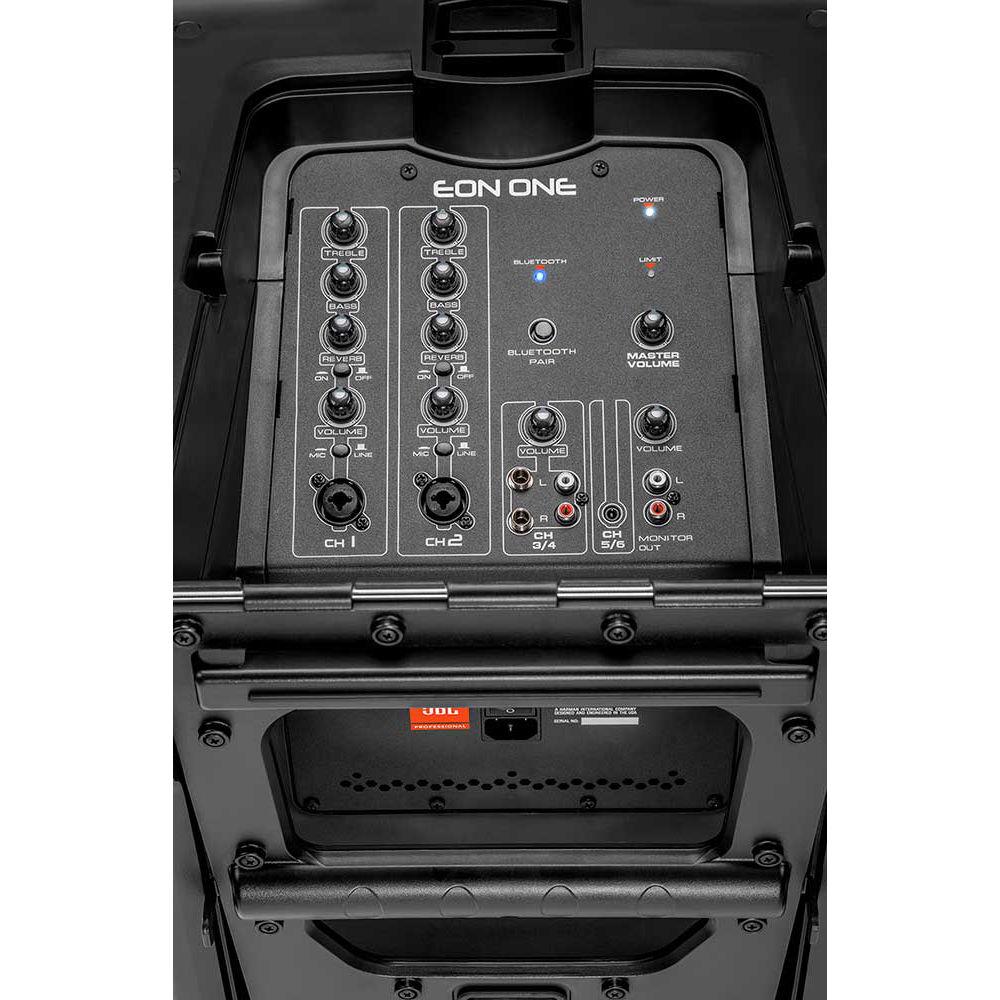

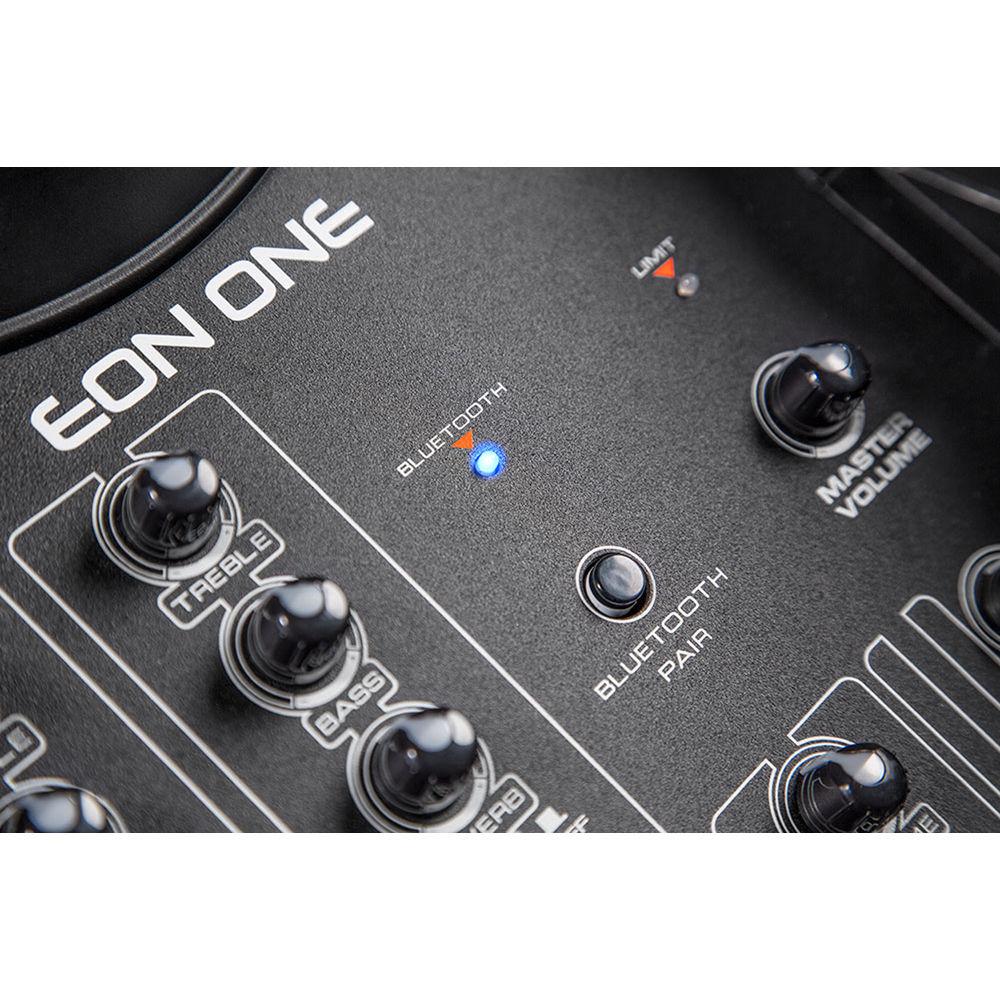

Channels 1 & 2 on the mixer offer XLR-1/4" connectors with dedicated treble, bass, and reverb controls. Channels 3 & 4 offer stereo 1/4" inputs or stereo RCA inputs while channels 5 & 6 offer a stereo 3.5mm input for connecting portable music players. Additionally, channels 5 & 6 offer Bluetooth audio streaming. The mixer also features a stereo RCA output monitor for connecting to additional speakers, recording devices, or other outboard gear.

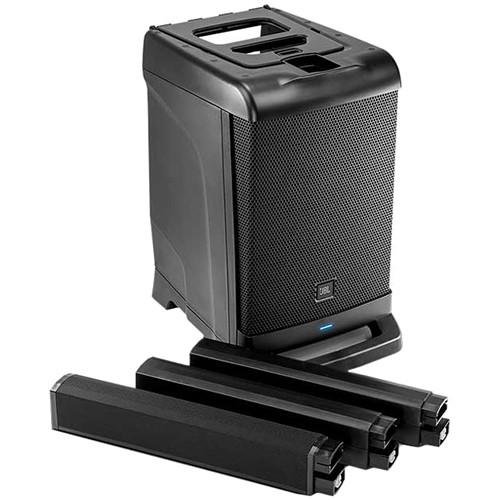

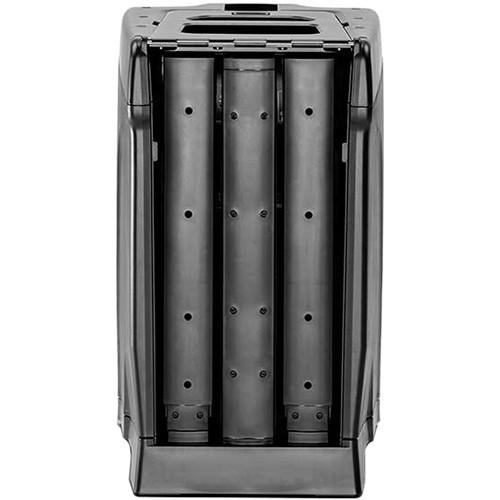

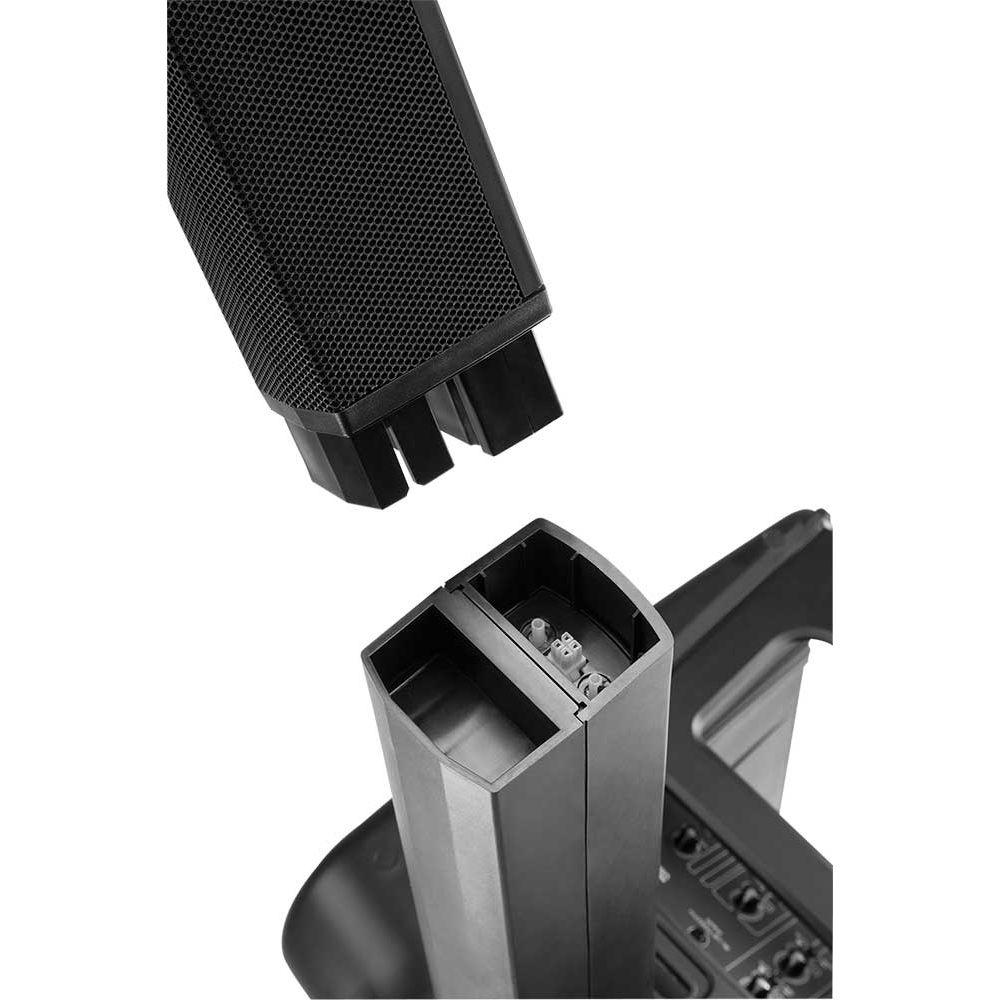

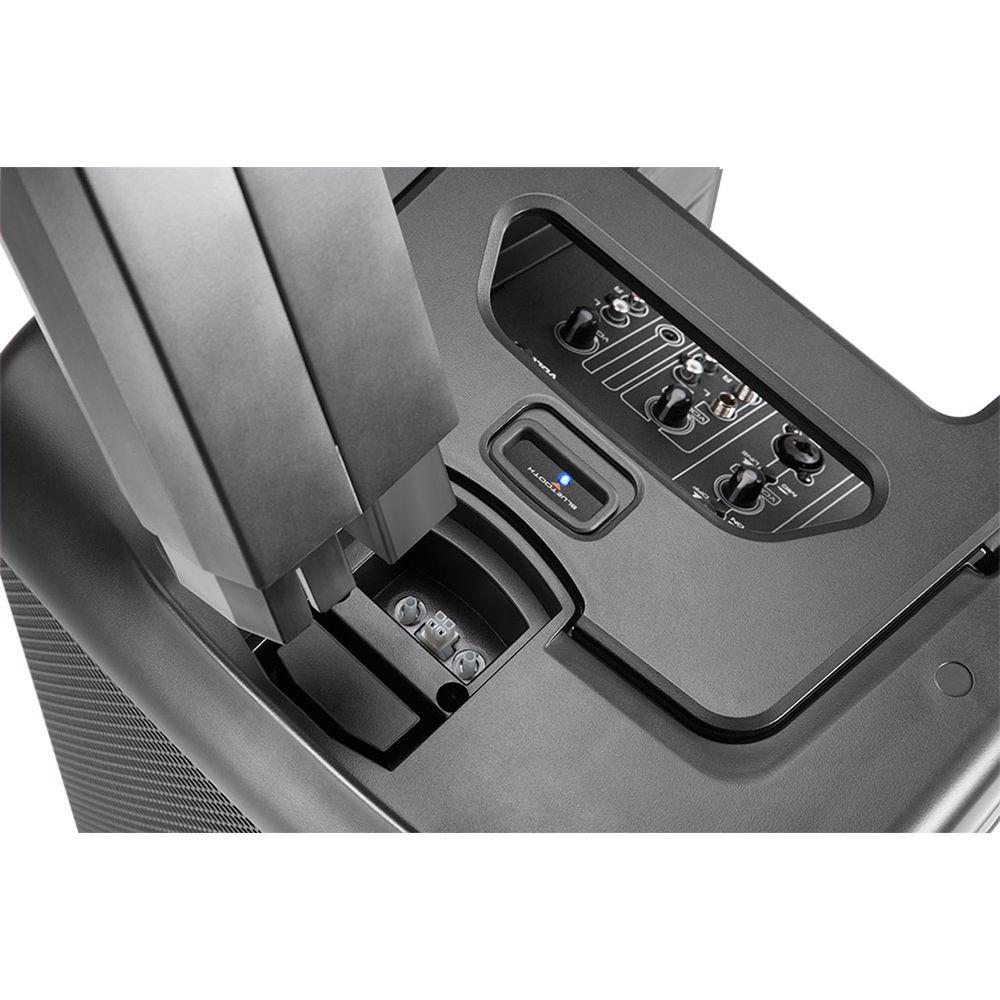

The EON ONE includes two spacers allowing for three position configurations and further expanding the systems flexibility. The HF element and two spacers conveniently pack away into the base unit, which can be carried by one hand. An optional EON ONE bag is available, which includes wheels to aid in transporting the unit and provides protection from bumps and scratches. The EON ONE ships with the two spacers and a power cord.
    • Professional sound quality
    • Patent-pending linear-array configuration (6 x 2” HF drivers) offers even sound coverage
    • Unobstructed 10” bass-reflex subwoofer for accurate low-frequency response
    • Bluetooth connectivity for streaming audio from your mobile device
    • Powerful 6-channel mixer with easy-to-use controls
    • Reverb for mic/line inputs (channel 1-2)
    • 380 watts of power, 118 dB max SPL for clear, detailed audio
    • Carry the entire system with one hand, set up in seconds
    • Perfect for live music, conferences, events, and more
    • 3 listening positions for different environments
UPC: 691991004704 In the Box JBL EON ONE All-In-One Linear Array PA System
  • EON ONE Base
  • Column Speaker Array
  • 2 x Listening Height Spacers
  • Power Cable
  • Limited 5-Year Warranty on Speaker
  • Limited 3-Year Warranty on Amplifier
  • Limited 2-Year Warranty on Cabinet
  • 7 All-In-One Portable Speaker Systems for Special Events and Parties Phillip Nichols-Wright 11/29/2018 Table of Contents




    Upload User Manual

    Have you got an user manual for the JBL EON ONE All-In-One Linear Array PA System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for JBL EON ONE All-In-One Linear Array PA System can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for JBL EON ONE All-In-One Linear Array PA System can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the JBL EON ONE All-In-One Linear Array PA System can be downloaded in PDF format at the link stated below.
    Download PDF user manual - JBL EON ONE All-In-One Linear Array PA SystemDownload PDF User Manual - https://www.search-manual.com/ upload/ jbl-eon-one-all-in-one-linear-array-pa-system-199413-user-manual.pdf
    (PDF file, 2.29 MB)


    Technical parameters

    JBL EON ONE Specs

    System Type Portable line array with powered mixer
    Maximum SPL 118 dB peak system output (pink noise)
    Frequency Range 37.5 Hz to 18.5 kHz
    Frequency Response 45 Hz to 18 kHz
    Design Class-D
    System Power System Power Rating
    LF: 250 W
    HF: 130 W
    Input Connectors 6 inputs (2 Mono Mic/Line, 2 x Stereo)
    Channels Channels 1-2: XLR-1/4" / 6.35 mm jack combo connectors (XLR is a mic-level input, 1/4" is a line-level input)
    Channels 3-4: 2 x 1/4"/ 6.35 mm balanced TRS jacks (stereo) and 2 x RCA jacks (stereo)
    Channels 5-6: Stereo 1/8" / 3.5 mm jack
    Input Impedance Channels 1-2 Combo XLR: 40 kOhms balanced
    Channels 1-2 Combo TRS: 40 kOhms balanced
    Channels 3-4 TRS: 20 kOhms balanced
    Channels 3-4 RCA: 5 kOhms unbalanced
    Channels 5-6 3.5 mm: 10 kOhms unbalanced
    Bluetooth Channels 5-6: Bluetooth audio streaming
    Output Connectors Monitor Outputs: 2 x RCA jacks (stereo)
    Signal Indicator Limit: Yellow LED indicates limiter active condition
    EQ Section Channels 1 & 2: Individual bass and treble controls, center detent, ±12 dB cut and boost
    Limiter On-board DSP limiting and tuning
    LF Driver LF: 1 x 10" / 254 mm woofer
    HF Driver HF: 6 x 2" drivers
    Coverage Pattern 100 x 50º nominal
    Enclosure Polypropylene
    Grille Material Powder-coated perforated steel
    Power Switchable Power Supply: 100-120 VAC, 220-240 VAC 50/60 Hz
    Dimensions (H x W x D) 23.3 x 14.5 x 17" / 593 x 369 x 434 mm
    Weight 40.8 lbs / 18.51 kg
    Package Weight 57.5 lb
    Box Dimensions (LxWxH) 30.5 x 24.9 x 20.3"

    Rating

    78% users recommend this product to others. And what about you?
    Rating: 3.9 of 5

    This product has already been rated by 13 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to JBL EON ONE All-In-One Linear Array PA System

    Subject: I own 2, each with unique problems
    Date: 13.06.2022 02:00:05Name: Joseph Cumia
    I love(d) these JBL eon one array MK1’s. So conveniently configured. I use them mainly for acoustic gigs with accompanying backing tracks. They each lasted about 3 years before they started having volume issues. One loses a tweeter or 2 after a few hours. The other has a fading up and down of master volume after it gets hot. I love JBL stuff, but the issues are intermittent and usually appear at the most inconvenient times. I’m trying the EV Evolve stuff to see if it sounds as good and/or will have any issues of their own.
